Quick Details
-
Brand Name:
-
H3C
-
Model Number:
-
H3C S5130S-28S-EI
-
Place of Origin:
-
Zhejiang, China
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
336Gbps/3.36Tbps
-
Brand Name:
-
H3C
-
Model Number:
-
H3C S5130S-28S-EI
-
Place of Origin:
-
Zhejiang, China
Product Description
Specification
|
item
|
value
|
|
Private Mold
|
Yes
|
|
Products Status
|
Stock
|
|
Ports
|
10
|
|
Transmission Rate
|
10/100/1000Mbps
|
|
Function
|
POE
|
|
Communication Mode
|
Full-Duplex & Half-Duplex
|
|
Switch Capacity
|
336Gbps/3.36Tbps
|
|
Brand Name
|
H3C
|
|
Model Number
|
H3C S5130S-28S-EI
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
|
|
|
Model
|
exchange capacity
|
packet forwarding rate (whole machine)
|
Business port description
|
width × deep × High (unit: mm)
|
|
S5130S-10P-EI
|
336Gbps/3.36Tbps
|
102Mpps
|
8 10/100/1000BASE-T adaptive Ethernet ports, 2 1000BASE-X SFP ports
|
266×161 ×43.6
|
|
S5130S-12TP-EI
|
336Gbps/3.36Tbps
|
102Mpps
|
8 10/100/1000BASE-T adaptive Ethernet ports, 2 100/1000BASE-X SFP ports (including 2 10/1000/1000BASE-T combo ports), and 2
1000BASE-X SFP ports |
266×161 ×43.6
|
|
S5130S-20P-EI
|
336Gbps/3.36Tbps
|
114Mpps
|
16 10/100/1000BASE-T adaptive Ethernet ports, 4 1000BASE-X SFP ports
|
330×230 ×43.6
|
|
S5130S-28P-EI
|
336Gbps/3.36Tbps
|
126Mpps
|
24 10/100/1000Base-T adaptive Ethernet ports, 4 1000BASE-X SFP ports
|
440×160×43.6
|
|

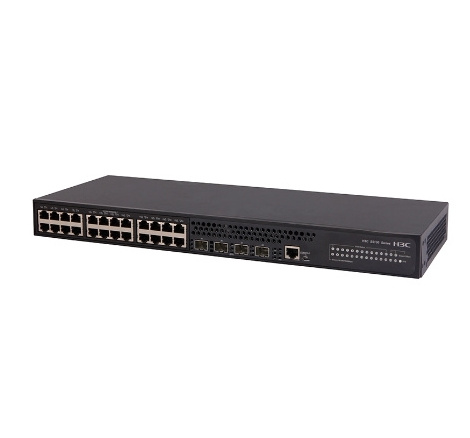

S5130S-28S-EI
|
336Gbps/3.36Tbps
|
126Mpps
|
24 10/100/1000BASE-T adaptive Ethernet ports, 4 1/10GE SFP+ports
|
440×160×43.6
|
|
MODEL
|
WEIHGT
|
input voltage
|
Power consumption
|
temperature
|
humidity
|
|
S5130S-10P-EI
|
≤1.5kg
|
AC: Rated voltage range: 100V~240V A.C, 50/60Hz
|
7-12W
|
Working environment temperature: -5 ℃~45 ℃
|
Relative humidity of working
environment (non condensing):
5% to 95%
|
|
S5130S-12TP-EI
|
≤1.5kg
|
|
8-15W
|
|
|
|
S5130S-20P-EI
|
≤3kg
|
|
9-19W
|
|
|
|
S5130S-28P-EI
|
≤2.5kg
|
|
9-23W
|
|
|
|
S5130S-28S-EI
|
≤2.5kg
|
|
10-24W
|
|
|
Application of S5130S-EI series Ethernet switches in the aggregation layer of enterprise/campus networks
In large and medium-sized enterprise park networks, the S5130S-EI series Ethernet switch can serve as an access switch, providing high-performance and high-capacity switching services, and supporting 10GE uplink interfaces, providing higher bandwidth for access devices. In addition, the core layer, aggregation layer, and high-performance access layer of the entire network all adopt H3C's innovative IRF2 (Intelligent Elastic Architecture) technology. While the original network topology remains unchanged, multiple devices are virtualized into a unified logical device, achieving simplification of network topology, business, and management, doubling the reliability of 1: N, and significantly improving network performance.
