Quick Details
-
Brand Name:
-
HUNGSO
-
Model Number:
-
M15-5
-
Operating Temperature:
-
0~80 Degree
-
Material:
-
PP
-
Rated current:
-
16A(4A)
-
Protection grade:
-
IP68CS
-
Certification:
-
CE
Quick Details
-
Media Type:
-
Liquid
-
Flow Rate:
-
Flow Rate Table
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HUNGSO
-
Model Number:
-
M15-5
-
Operating Temperature:
-
0~80 Degree
-
Material:
-
PP
-
Rated current:
-
16A(4A)
-
Protection grade:
-
IP68CS
-
Certification:
-
CE

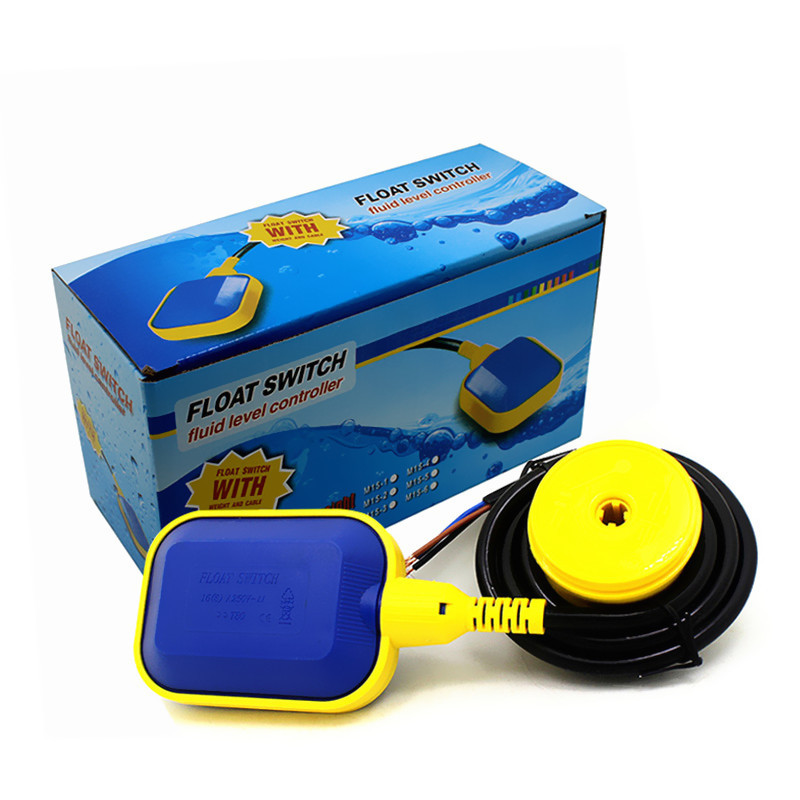

M15 series liquid level controller float ball water level switch
Product Specification:
| Rated Voltage | 250V(380V)/120V |
| Rated Current | 16A(4A) |
| Working Temperture | 0°<water temperature≤80° |
| Mechinacal Endurance | ≥100.000times |
| Electrical Endurance | ≥50.000times |
| Protection Grade | IP68 |
Installation
♦ Fix the counterweight on the electrical cable to control the height of the water level(the counterweight is only provided on request).
♦ Connect the flexible cable with the pump and fix the cable in the water tank.
♦ The length of the cable section between the fixture point of the same and the regulator body determines the total extension of the float and the height of the water level.
♦ During installation, the eventual cable joining section must never be immersed in water.
