Quick Details
-
Voltage:
-
380v/3ph/50hz(or Customized)
-
Dimension(L*W*H):
-
1690*615*1150mm
-
Weight:
-
250kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Product name:
-
Anest Iwata
-
Cooling method:
-
Air Cooling
-
Capacity:
-
580L/min
-
Pressure:
-
8-10bar
-
Noise:
-
75dBA
-
Motor power:
-
5.5 Kw
-
Air tank volume::
-
250L
-
Outlet diameter:
-
G3/4''
-
Certification:
-
ISO CLASS0
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Anest Iwata
-
Model Number:
-
TFPJ55-10
-
Voltage:
-
380v/3ph/50hz(or Customized)
-
Dimension(L*W*H):
-
1690*615*1150mm
-
Weight:
-
250kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Product name:
-
Anest Iwata
-
Cooling method:
-
Air Cooling
-
Capacity:
-
580L/min
-
Pressure:
-
8-10bar
-
Noise:
-
75dBA
-
Motor power:
-
5.5 Kw
-
Air tank volume::
-
250L
-
Outlet diameter:
-
G3/4''
-
Certification:
-
ISO CLASS0

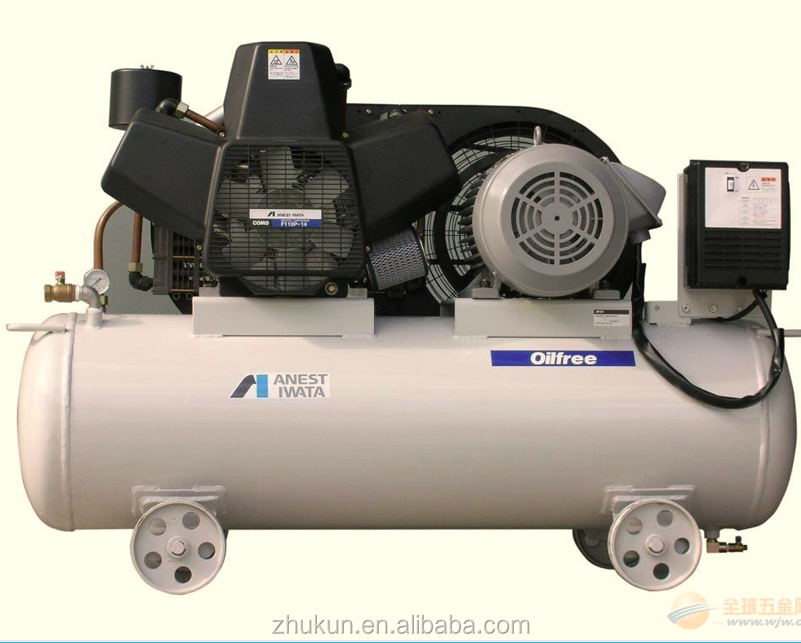

New Anest Iwata air compressor oil free piston type AC power 5.5kw
Authorized distributor certificate
Technical Data
| Modle |
Motor power KW(HP) |
Capacity (L/min) |
Dimension (L*W*H)(mm) |
Weight(kg) |
| TFP J02B-6 | 0.2(1/4) | 20 | 420*330*625 | 20 |
| TFPJ15-10 | 1.5(2) | 165 | 1400*390*855 | 105 |
| TFPJ22-10 | 2.2(3) | 245 | 1400*420*870 | 120 |
| TFPJ37-10 | 3.7(5) | 370 | 1400*425*930 | 135 |
| TFPJ55-10 | 5.5(7) | 580 | 1690*575*1150 | 250 |
| TFPJ75-10 | 7.5(10) | 830 | 1690*575*1140 | 280 |
Details
|
|
|
While oil-free, the models support the maximum pressure of 1.0 MPa,accommodating the needs of customers who require high pressures.
Iwata has obtained ISO 8573-1 CLASS 0 certification.
It mean the air 100% oilfree and will not have the drainage processing expense. |
|
