Quick Details
-
Color:
-
FULL COLOR
-
Panel Size:
-
640*480mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P2.5
-
use:
-
indoor
-
Brightness:
-
1200, ≥1000 cd/m2
-
pixel density:
-
250000
-
Contrast Ratio:
-
30000:1
-
Color Depth:
-
14-22bit
-
Lifespan (hours):
-
1000000
-
IP Rating:
-
IP45
-
View Angle（H/V）:
-
160:160
-
Usage:
-
Indoor
-
Tube Chip Color:
-
FULL COLOR
-
Display Function:
-
Video
-
Pixel Density:
-
160000 pixels/m2
-
Module size:
-
320*160mm
-
Pixel pitch:
-
2.5
-
Life span:
-
100000hours
-
Refresh Rate:
-
1920/3840Hz
-
Warranty:
-
5 years
Quick Details
-
Application:
-
Indoor
-
Type:
-
LED
-
Brand Name:
-
REISS
-
Color:
-
FULL COLOR
-
Panel Size:
-
640*480mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P2.5
-
use:
-
indoor
-
Brightness:
-
1200, ≥1000 cd/m2
-
pixel density:
-
250000
-
Contrast Ratio:
-
30000:1
-
Color Depth:
-
14-22bit
-
Lifespan (hours):
-
1000000
-
IP Rating:
-
IP45
-
View Angle（H/V）:
-
160:160
-
Usage:
-
Indoor
-
Tube Chip Color:
-
FULL COLOR
-
Display Function:
-
Video
-
Pixel Density:
-
160000 pixels/m2
-
Module size:
-
320*160mm
-
Pixel pitch:
-
2.5
-
Life span:
-
100000hours
-
Refresh Rate:
-
1920/3840Hz
-
Warranty:
-
5 years
Product Description
If you need other LED displays (HD indoor screens, stage rental screens, transparent screens,
Soft Flexible Curved LED Display
...) click here →
Specifications：
Indoor led module display panel P1.25/P1.5/P1.6/P1.8/P2/P2.5/P4/P5 led video wall screen
With high refresh rate, high brightness, and fast assembling.
With waterproof, light & thin, and good heat dissipation.
Warranty for 5 years . no dead lamp and long time working hours .
|
Model
|
P1.2
|
P1.5
|
P1.6
|
P1.8
|
P2
|
P2.5
|
P3
|
P4
|
|||||||
|
Pixel Pitch(mm)
|
1.25
|
1.53
|
1.66
|
1.86
|
2
|
2.5
|
3
|
4
|
|||||||
|
Pixel Matrix Per Sq.m
|
422500
|
422500
|
360000
|
288906
|
250000
|
160000
|
90000
|
62500
|
|||||||
|
Pixel Configuration
|
SMD1212
|
SMD1212
|
SMD1212
|
SMD1515
|
SMD1515
|
SMD1515
|
SMD2121
|
SMD2121
|
|||||||
|
Cabinet Resolution
|
415x312
|
415x312
|
384x288
|
344x258
|
320x240
|
256x192
|
192x144
|
160x120
|
|||||||
|
Power Con.(W/㎡) (Max / Avg)
|
600W/200W
|
600W/200W
|
600W/200W
|
580W/180W
|
580W/180W
|
550W/160W
|
450W/160W
|
450W/160W
|
|||||||
|
Refresh Rate (HZ)
|
≥3840
|
≥3840
|
3840
|
3840
|
3840
|
≥1920
|
≥1920
|
≥1920
|
|||||||
|
Brightness (cd/㎡)
|
500-900
|
|
|
|
|
|
|
|
|||||||
|
Module Dimension
|
320x160mm / 1.05x0.53ft
|
|
|
|
|
|
|
|
|||||||
|
Cabinet Dimension
|
640x480mm / 2.10x1.57ft
|
|
|
|
|
|
|
|
|||||||
|
Cabinet Material
|
Die Casting Aluminum
|
|
|
|
|
|
|
|
|||||||
|
Cabinet Weight
|
4.6KG
|
|
|
|
|
|
|
|
|||||||
|
Service Access
|
Front
|
|
|
|
|
|
|
|
|||||||
|
Grey Scale (bit)
|
14-22bit
|
|
|
|
|
|
|
|
|||||||
|
Viewing Angle (H/V)
|
160°/160°
|
|
|
|
|
|
|
|
|||||||
|
IP Rate
|
IP45
|
|
|
|
|
|
|
|
|||||||
|
Operation Temperature
|
-20℃ ~ +80°℃
|
|
|
|
|
|
|
|
|||||||
|
Input Voltage (AC)
|
110V / 220V
|
|
|
|
|
|
|
|
|||||||
Direct connection power cables
Power supply
Fast lock
Receiving card
Project Cases
Part of it
：

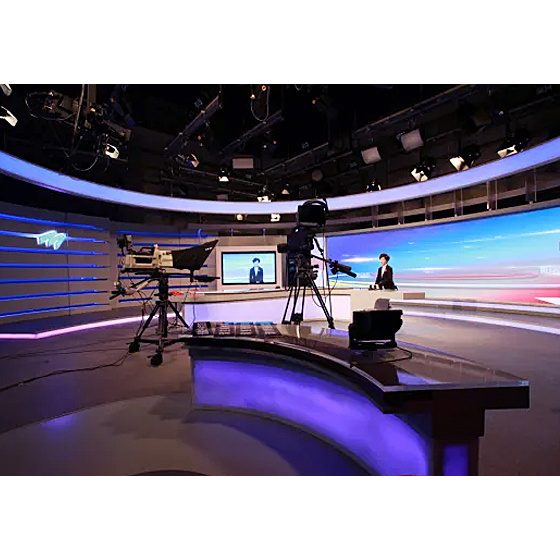

Indoor stage studio
Indoor stage performance
meeting room
Outdoor stage background
