1. Vertical injection vertical clamping design,professional for insert injection moulding processing
2. Adopt brand microcomputer to control machine pressure,system pressure can be digitally adjusted,make machine running smooth running.
3. Multi-stage temperature control for improved product quality stability
4. Equipped with fast clamping mode, low-pressure slow-speed closing mode, automatic mould opening safety design for mold clamping abnormality, protection for molds and machines
5. Equipped with ejector device to facilitate the removal of finished products and save production time
6. Optional for hand-held molds and fixed mold configurations
- Product Details
- {{item.text}}
Quick Details
-
Theoretical Shot Volume(cm³):
-
55 cm³
-
Injection Rate (g/s):
-
42 g/s
-
Injection Weight (g):
-
4 g
-
Screw diameter (mm):
-
90 mm
-
Weight (KG):
-
600 kg
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
120 mm
-
Power (kW):
-
2 kW
-
Marketing Type:
-
New Product 2022
Quick Details
-
Mold Height(mm):
-
40 - 80 mm
-
Ejector Stroke(mm):
-
28 mm
-
Ejector Force(kN):
-
6.9 kN
-
Theoretical Shot Volume(cm³):
-
55 cm³
-
Injection Rate (g/s):
-
42 g/s
-
Injection Weight (g):
-
4 g
-
Screw diameter (mm):
-
90 mm
-
Weight (KG):
-
600 kg
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
120 mm
-
Power (kW):
-
2 kW
-
Marketing Type:
-
New Product 2022
Recommend Products
Products Description

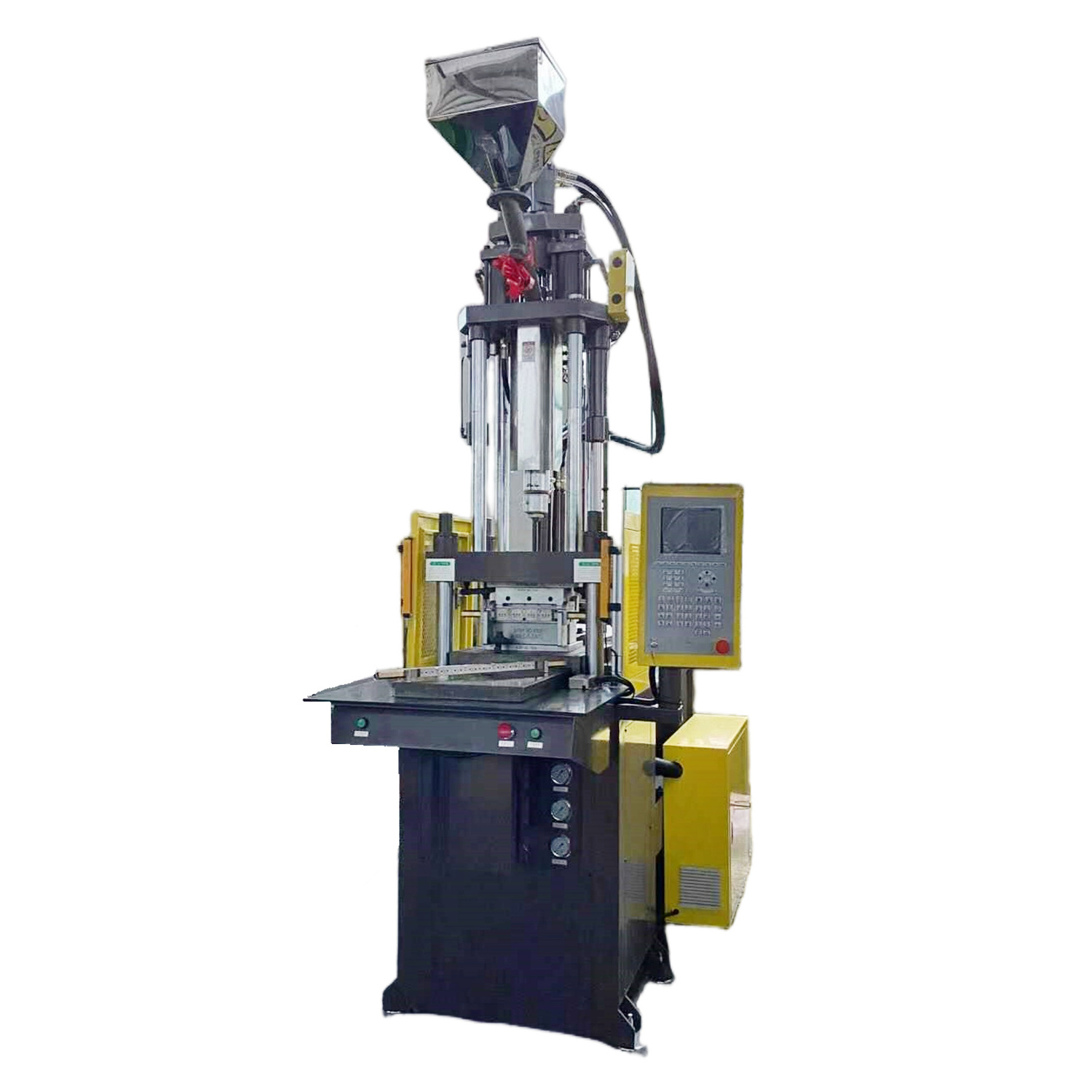

The vertical injection machine suitable for inert injection moulding,specially for DC cable wire plug and connector, such as usb cable,earphone,audio cable etc electronic products
Specifcation
|
Items
|
|
Units
|
Vertical injection molding machine
|
|
||
|
Injection Unit
|
Screw Diameter
|
mm
|
28
|
26
|
||
|
|
Maximum Injection Pressure
|
kgf/cm2
|
1004
|
1164
|
||
|
|
Theoretical Shot Volume
|
cm³
|
55
|
47
|
||
|
|
Maximum Shot Weight
|
gr
|
63
|
55
|
||
|
|
|
oz
|
2.2
|
1.9
|
||
|
|
Injection Rate
|
cc/s
|
42
|
39
|
||
|
|
Screw Speed
|
r.p.m
|
0~150
|
|
||
|
|
Screw Stroke
|
mm
|
90
|
|
||
|
|
Nozzle Stroke
|
mm
|
120
|
|
||
|
|
Nozzle Force
|
tf
|
2.4
|
|
||
|
Clamping Unit
|
Clamping System
|
...
|
Hydraulic
|
|
||
|
|
Clamping Force
|
tf
|
15
|
|
||
|
|
Clamping Stroke
|
mm
|
200
|
|
||
|
|
Maximum Open Daylight
|
mm
|
240
|
|
||
|
|
Minimum Mold Thickness
|
mm
|
40
|
|
||
|
|
Platen Size
|
mm
|
~
|
|
||
|
|
Distance Between Tie Bar
|
mm
|
310
|
|
||
|
|
Ejector Force
|
tf
|
0.7
|
|
||
|
|
Ejector Stroke
|
mm
|
28
|
|
||
|
Others
|
Electric Power
|
kw
|
2.2(3HP)
|
|
||
|
|
Barrel Heating Power
|
kw
|
2.0
|
|
||
|
|
Machine Dimension(Approx.)
|
m
|
1.2*0.9*2.3
|
|
||
|
|
Machine Weight(Approx.)
|
t
|
0.6
|
|
||
|
|
Package Dimension(Approx.)
|
m
|
1.4*1.1*2.25
|
|
||
|
|
Package Weight(Approx.)
|
t
|
0.75
|
|
||
|
|
Oil Tank Volume
|
l
|
90
|
|
||
|
|
Water Cooling Consumption
|
l/hr
|
400-600
|
|
||
