Automatic 4 colors pad printing machine Billiard ball golf ball baseball logo pad printing machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $4200

≥3 Pieces

US $3900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimensions(L*W*H):: 890X830X1450mm

Weight:: 260 KG

Pad printer machine:: golf ball 4 color pad printing machine

Printing color:: 4 colors

Max Printing speed:: 1800 pcs /h

Printing size:: 75x125mm

Printing plate size:: 100x150mm

Work station size:: 80x 126mm

Ink supply:: Ink tray

Key Cylinders:: FESTO

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: HENGJIN

Voltage:: 220VAC/ 1phase

Dimensions(L*W*H):: 890X830X1450mm

Weight:: 260 KG

Pad printer machine:: golf ball 4 color pad printing machine

Printing color:: 4 colors

Max Printing speed:: 1800 pcs /h

Printing size:: 75x125mm

Printing plate size:: 100x150mm

Work station size:: 80x 126mm

Ink supply:: Ink tray

Key Cylinders:: FESTO

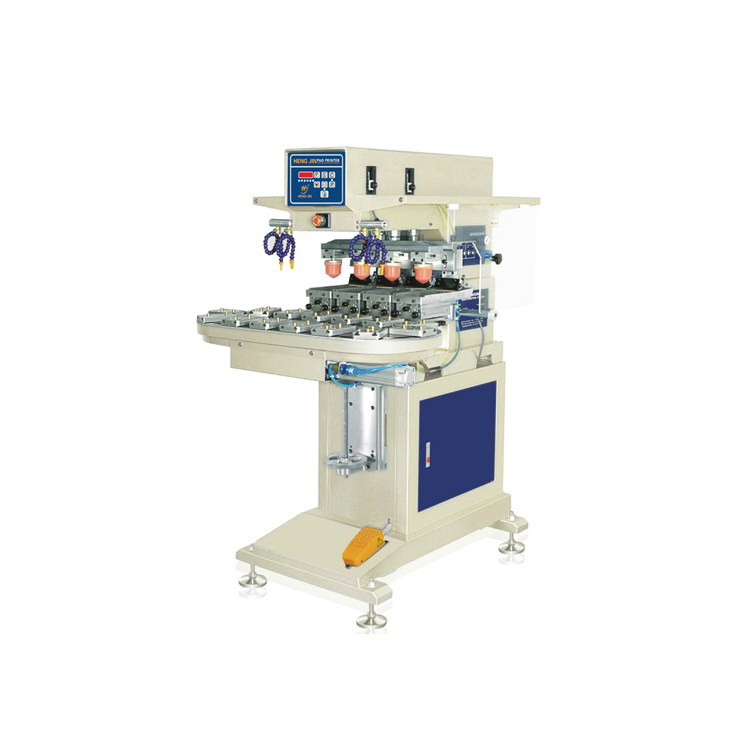

HP-160DZ Semi-automtic 4 colors pad printing machine

Golf ball toy ball baseball 4 color pad printing machine

Applications:

This item special for big target products printing. Which is a regular size. Can comprehensive apply for necessities , toys, electrons, e lectrical equipment, plastics , leather , metal , glass , light industry and food package.

Key Features:

1 The printing speed is faster than shuttle pad printer. But which suitable to print small products. Per time printing 4 colors;

2 There are three cylinders for per printing pads for turntable which all together control the position, then Fixing position is precise and stable;

3 This is machine is Semi-automatic, having automatic counter for 4 digit s;

4 The machine can do your any printing requested, and per location is adjustable, such as, left/ right, up/ down, delay printing, dip ink etc;

5 The cylinder of Machine is Imported Germany FESTO . The thickness of the screw we used 8.75 Degree . Which have more usage about 20 years ;

6 The body is Alloy Cast Aluminum , then it is light and hardy.

7 The machine is running agile, steady and low voice .

Parameters:

Item Number:	HP-160DZ	Printing colors:	Four
Printing Speed	1800pcs/ hour	Max height of products	150mm
Max metal plate:	100x150mm(4 ” x6 ” )	Max printing Size:	75x 125mm (3 ” x 5 ” )
The distance of two U Tray	127mm	Stroke of Pad	160mm
Adjustable pads size on target products	10-60 mm	Adjustable pads size on the metallic plate	10-60 mm
Voltage of source	220 VAC/ 1 Phase 20W	Air supply	6 Bar
Qty of Station on turntable	14/ pcs	Station Size	126x 80mm
Dimension:	890 mm X 830mm X 1450mm	Net Weight	26 0 KGS

Key machine parts as reference:

pad printer Abou us:

Guangdong Hengjin Intelligent Equipment Co. Ltd ( HENGJIN) is located in Guangdong Province,Dongguan City. From Guangzhou or Shenzhen about 1.5 hours. Hengjin has been a industry leading supplier of Pad printer, Screen printer, Hot Stamping Machine and the relative Accessaries supplies for 12 years under the same ownership. We have become well respected by our customers and others in the industry due to our knowlege of the pad print process and the personal attention we give to each and every customer. We offer a complete line of machinery and supplies of top quality and performance.

Hengjin as main an exporting Supplier in China. In order to give our customer more guarantee, avoiding more after-servucecaused. Only we using the spare parts to our machine good quality. The material of our machine is alloy cast aluminium and the surface is Powder spraying. The main parts which cylinder is from Original Germany FESTO.

Hengjin Printing machines which aboved mention have CE approval. And our customer from American, United Kindom, Germany, South American Etc. Sure Hengjin is a satisfying suppiler to you.

Our service:

1. Professional engineer to choose suitable machine according to your requirements ;

2. One year guarantee for whole machine except of consumable ;

3.24 hours technical support by e-mail ;

4. Calling or door-to-door service if need ;

5. Elaborate English manual and detailed Videos/ CD .
