Quick Details
-
Control Voltage:
-
24V/36V/48V/ETC.
-
Motor Power:
-
3.0(kw)
-
Standard Lifting Height:
-
3(m)
-
Speed:
-
Single speed or Double speed
-
Insulation Grade:
-
F
-
Load Chain Diameter:
-
11.2(mm)
-
Rotation Speed:
-
1440( r/min)
-
Working Grade:
-
M5
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Jiangsu, China
-
Power supply:
-
3P , 220V~690V
-
Control Voltage:
-
24V/36V/48V/ETC.
-
Motor Power:
-
3.0(kw)
-
Standard Lifting Height:
-
3(m)
-
Speed:
-
Single speed or Double speed
-
Insulation Grade:
-
F
-
Load Chain Diameter:
-
11.2(mm)
-
Rotation Speed:
-
1440( r/min)
-
Working Grade:
-
M5

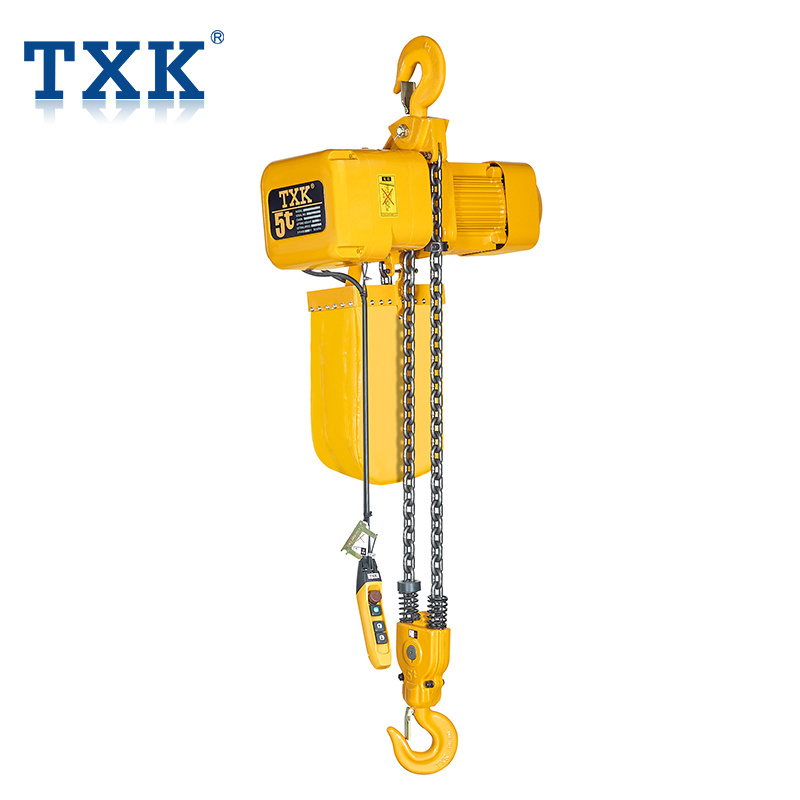

TXK ER2 Model Nitchi 5 Ton Electric Chain Hoist
| Single Speed | Technical Parameters | |||||||||
| Model | 0.5-01S | 01-01S | 1.5-01S | 02-01S | 02-02S | 2.5-01S | 03-01S | 03-02S | 03-03S | 05-02S |
| Capacity(T) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 5 | |||
| Lifting Speed(M/Min) | 7.2 | 6.6 | 8.8 | 6.6 | 3.3 | 5.4 | 5.4 | 4.4 | 2.2 | 2.7 |
| Motor Power(Kw) | 0.8 | 1.5 | 3 | 3 | 1.5 | 3 | 3 | 3 | 1.5 | 3 |
| Rotation Speed(R/Min) | 1440 | |||||||||
| Insulation Grade | F | |||||||||
| Power Supply | 3P 220V-690V | |||||||||
| Control Voltage | 24V/36V/48V | |||||||||
| No. Of Chain | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 |
| Spec. Of Load Chain | φ6.3 | φ7.1 | φ10.0 | φ10.0 | φ7.1 | φ11.2 | φ11.2 | φ10.0 | φ7.1 | φ11.2 |
| Net Weight(Kg) | 47 | 61 | 108 | 115 | 73 | 115 | 122 | 131 | 85 | 151 |
Product Description
TXK Electric Chain Hoist
1. Aluminum alloy shell , light but hard .
2. G80 Load chain or Japan FEC G80 load chain, can be used in poor invironment .
3. Hook: be hot forged with perfect strength , hard to break .
4. Push button, remote control : imported from Taiwan .
5. 3 phase electric chain hoist & Single phase electric chain hoist is optional
