Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZY
-
Product name:
-
Expanded Metal Mesh
-
Color:
-
Black
-
Feature:
-
Corrosion Resistance
-
Usage:
-
Protecting Mesh
-
Hole shape:
-
Diamond Hole
-
Surface treatment:
-
Untreatment
-
Length:
-
2.44m
-
Width:
-
0.5-2m
-
Thickness:
-
1mm-2mm
-
Certification:
-
ISO9001:2008
Quick Details
-
Material:
-
low carbon steel
-
Type:
-
Expanded Mesh
-
Application:
-
Protecting Mesh
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZY
-
Product name:
-
Expanded Metal Mesh
-
Color:
-
Black
-
Feature:
-
Corrosion Resistance
-
Usage:
-
Protecting Mesh
-
Hole shape:
-
Diamond Hole
-
Surface treatment:
-
Untreatment
-
Length:
-
2.44m
-
Width:
-
0.5-2m
-
Thickness:
-
1mm-2mm
-
Certification:
-
ISO9001:2008
Product Description

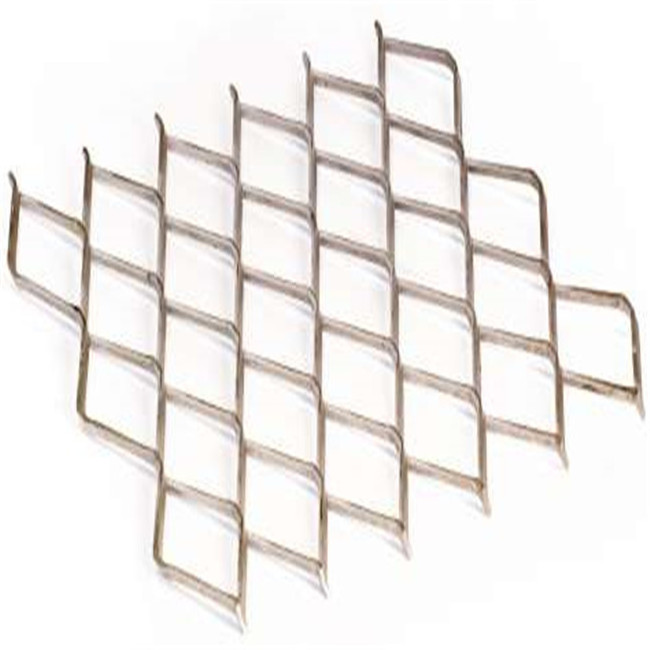

Expanded metal
Introduction of expanded metal:
Expanded metal is a multipurpose product. In production process, it doesn’t have any waste material and saves a lot of cost.
The expanded metal is stretched into diamond shaped holes. The final product is stronger and durable.
expanded metal can use in sheets of carbon, plates of carbon, galvanized material, stainless steel material, aluminum, mild steel and other alloys. ZY produces high quality expanded metal .
Application of expanded metal:
Special designed in architectural expanded metal, outdoor decorative expanded metal, outdoor furniture expanded metal, building expanded metal, ceiling expanded metal, fencing expanded metal, filtration expanded metal, vehicles expanded metal, art expanded metal and concrete structure reinforcement of expanded metal.
Expanded metal is a multipurpose product. In production process, it doesn’t have any waste material and saves a lot of cost.
The expanded metal is stretched into diamond shaped holes. The final product is stronger and durable.
expanded metal can use in sheets of carbon, plates of carbon, galvanized material, stainless steel material, aluminum, mild steel and other alloys. ZY produces high quality expanded metal .
Application of expanded metal:
Special designed in architectural expanded metal, outdoor decorative expanded metal, outdoor furniture expanded metal, building expanded metal, ceiling expanded metal, fencing expanded metal, filtration expanded metal, vehicles expanded metal, art expanded metal and concrete structure reinforcement of expanded metal.
Specification
|
Pattern Number
|
L.W.M (mm)
|
S.W.M. (mm)
|
Strand Width (mm)
|
Strand Gauge (mm)
|
% Free Area
|
Approx. Kg/M2
|
|
MF876 018
|
6.05
|
3.38
|
0.8
|
0.5
|
50
|
2.1
|
|
MF877 018
|
10.24
|
5.84
|
0.8
|
0.5
|
75
|
1.2
|
|
MF888 036
|
10.24
|
5.84
|
1.2
|
0.9
|
65
|
3.2
|
|
MF889 036
|
14.27
|
5.84
|
1.2
|
0.9
|
60
|
3.2
|
|
MF890 036
|
19.05
|
7.42
|
1.2
|
0.9
|
60
|
3.4
|
|
MMF 020R
|
5.80
|
3.50
|
0.8
|
0.6
|
44
|
2.1
|
|
MMF 078R
|
19.00
|
7.40
|
1.7
|
1.0
|
55
|
3.4
|
|
MMF 124R
|
30.50
|
11.70
|
2.4
|
1.6
|
62
|
4.9
|
|
MMF 126R
|
30.50
|
11.70
|
2.4
|
1.2
|
61
|
3.8
|
|
MMF 157R
|
38.00
|
16.50
|
2.2
|
1.6
|
76
|
3.4
|
|
MMF 201R
|
50.80
|
22.50
|
2.5
|
2.5
|
77
|
4.4
|
|
MMF 203R
|
50.80
|
22.50
|
3.0
|
1.6
|
80
|
3.4
|
|
MMF 208R
|
50.80
|
22.50
|
3.9
|
3.0
|
69
|
8.1
|
|
MMF 209R
|
50.80
|
22.50
|
3.1
|
3.0
|
71
|
6.5
|
|
MMF302R
|
76.20
|
33.90
|
3.5
|
3.0
|
78
|
4.9
|
|
MMF 336R
|
85.70
|
40.60
|
3.2
|
3.0
|
84
|
3.7
|
|
MMF 405R
|
101.60
|
50.80
|
5.0
|
3.0
|
82
|
4.7
|
|
MMF 407R
|
101.60
|
50.80
|
3.4
|
3.0
|
85
|
3.1
|
|
MMF 459R
|
114.30
|
39.30
|
4.6
|
3.0
|
82
|
5.4
|
|
MMF 008R
|
200.0
|
75.0
|
6.3
|
3.0
|
-
|
3.6
|
Packing & Delivery
packing : 1. packed in rolls
2. packed in pallets
