- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
AC EV charger cable
-
Application:
-
EV Charger
-
Conductor:
-
copper
-
Insulation:
-
TPE
-
Jacket:
-
PUR-HF
-
Rated Voltage:
-
600/1200 V DC
-
Flame Test:
-
IEC 60332-1-2
-
Standard:
-
IEC VDE BS
-
Number of cores:
-
5/7 cores
-
Certificate:
-
TUV CE
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
AC EV charger cable
-
Brand Name:
-
KMCABLE
-
Product name:
-
AC EV charger cable
-
Application:
-
EV Charger
-
Conductor:
-
copper
-
Insulation:
-
TPE
-
Jacket:
-
PUR-HF
-
Rated Voltage:
-
600/1200 V DC
-
Flame Test:
-
IEC 60332-1-2
-
Standard:
-
IEC VDE BS
-
Number of cores:
-
5/7 cores
-
Certificate:
-
TUV CE
Products Description

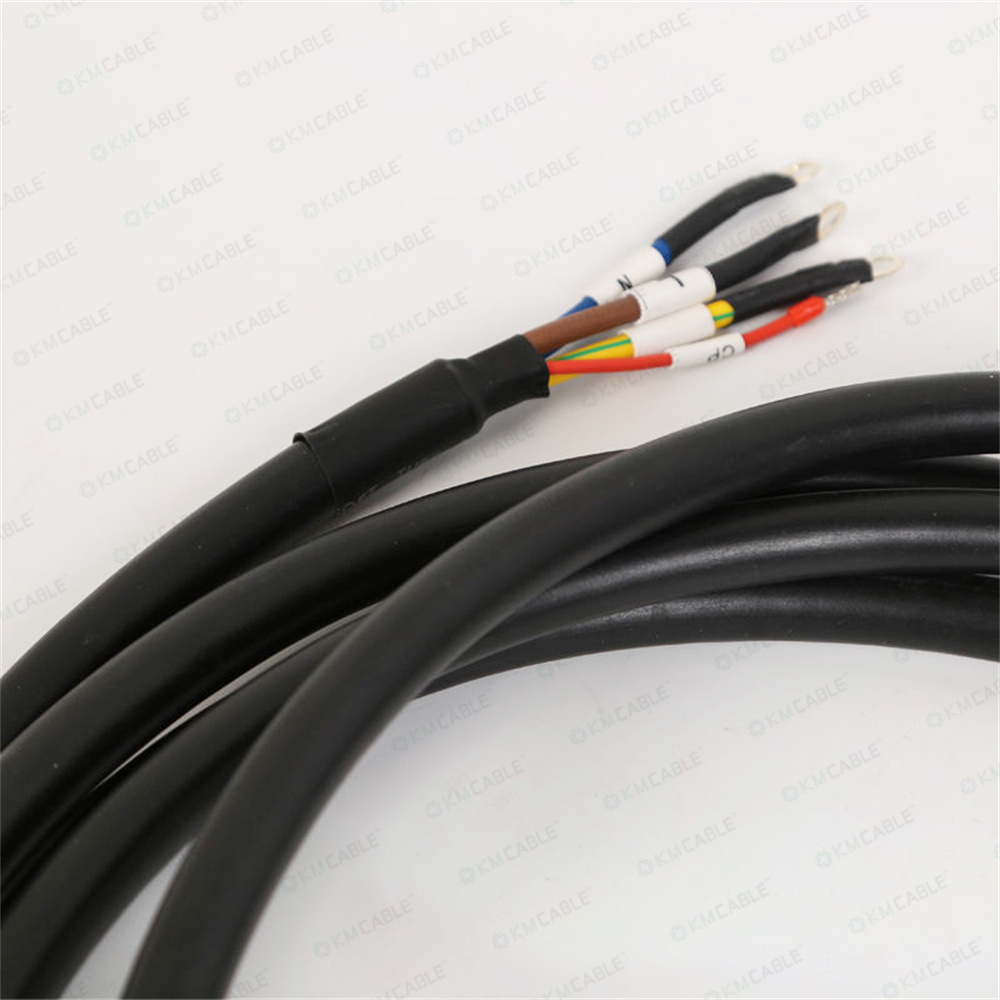

EV charging cable
Robust flexible multicore PUR sheathed cable compatible with European standard electric vehicle AC charging modes 1 (single phase- domestic), 2 and 3 (single/three phase - commercial/public) installations. Suitable for trailing EV plug connections to vehicle.
Specifications
|
Model
|
AC EV Charger cable
|
|
Conductor
|
Class 5 copper conductor
|
|
No. of Cores
|
5 core
|
|
Conductor Type
|
stranded
|
|
Insulation
|
Rubber/TPE
|
|
Jacket(Sheath)
|
PUR-HF
|
|
Standards
|
IEC 60228
|
|
DC
|
1.2 KV
|
|
AC
|
750V
|
|
Colors
|
Black or custom
|
|
Ambient temperature
|
-40℃ ~+90℃
|
|
No. cores x cross-sec.
mm²
|
Outer Ø app.
mm |
Copper weight
kg/km |
Weight app.
kg / km |
|
3G 1.5 + 1 x 0.5
|
9.5
|
48.0
|
115
|
|
3 G 1.5 + 2x0.5
|
9.5
|
53.0
|
125
|
|
3G 2.5 + 1 x 0.5
|
10.0
|
77.0
|
153
|
|
3G 2.5+ 2x0.5
|
10.0
|
82.0
|
161
|
|
5G 2.5 + 1 x 0.5
|
12.8
|
125.0
|
238
|
|
5G 2.5+ 2x0.5
|
12.8
|
130.0
|
245
|
|
5G 2.5+ 4x0.5
|
13.4
|
140.0
|
263
|
|
3G6 + 1 x 0.5
|
12.8
|
178.0
|
293
|
|
3 G 6 + 2 x 0.5
|
12.8
|
183.0
|
300
|
|
5G6 + 1 x 0.5
|
16.0
|
293.0
|
455
|
|
5G 6+ 2x0.5
|
16.0
|
298.0
|
461
|
|
5G 16+ 1 x 1
|
22.7
|
778.0
|
1100
|
