Quick Details
-
Number of Row:
-
Single row
-
Bore Size:
-
1 - 70 mm
-
Brand Name:
-
from Germany
-
Model Number:
-
4.053
-
Place of Origin:
-
Germany
-
Product:
-
needle bearing 4.053
-
Bearing Mataerial:
-
Chrome Steel
-
Bearing Cage:
-
PEEK
-
Noise Level:
-
Z1
-
Hardness:
-
HRC58-63
-
Bearing Lubrication:
-
Oil
-
Vibration Level:
-
V1
-
Internal Clearance:
-
C0
-
Bearing stock:
-
available
-
Sample:
-
Accept
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction works , Energy & Mining
-
Precision Rating:
-
P0 ( ABEC1 )
-
Seals Type:
-
Open
-
Number of Row:
-
Single row
-
Bore Size:
-
1 - 70 mm
-
Brand Name:
-
from Germany
-
Model Number:
-
4.053
-
Place of Origin:
-
Germany
-
Product:
-
needle bearing 4.053
-
Bearing Mataerial:
-
Chrome Steel
-
Bearing Cage:
-
PEEK
-
Noise Level:
-
Z1
-
Hardness:
-
HRC58-63
-
Bearing Lubrication:
-
Oil
-
Vibration Level:
-
V1
-
Internal Clearance:
-
C0
-
Bearing stock:
-
available
-
Sample:
-
Accept

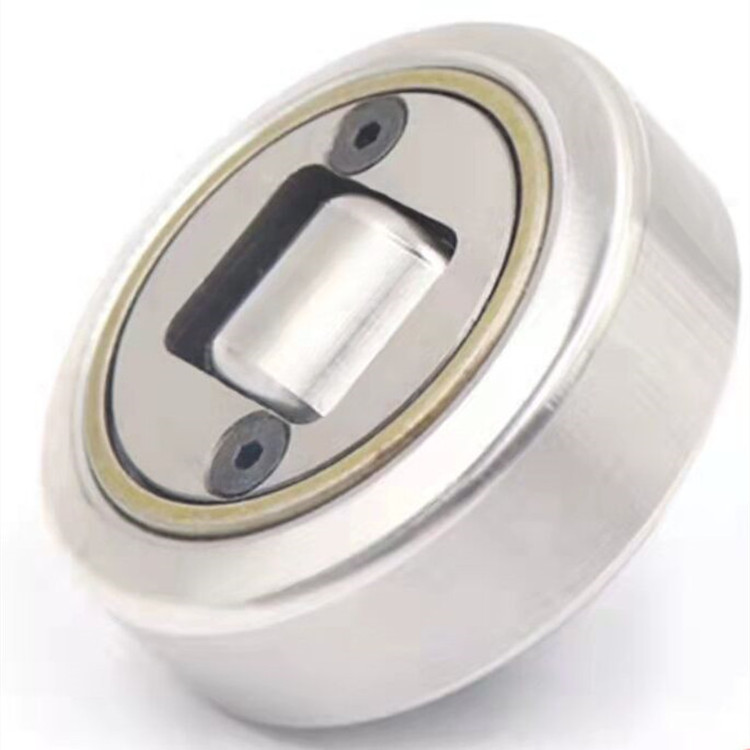

Top Quality Combined Axial Bearing 4.053 4.054-62 4.055-40 Track Roller Bearing
Description of Combined Roller Bearing for Forklift
The Combined Roller Bearing is composed of two main rollers, a side roller and a shaft head, which are installed in two different directions to reduce space and reduce manufacturing costs. The radial and axial direction bearing capacity is relatively large, and the accessories are highly replaceable. The adjustable combined roller bearing can adjust the position of the mandrel by adjusting the eccentric outer hexagon or the eccentric valve to achieve the purpose of adjusting the axial dimension of the side roller.
Composite roller bearings are mainly used in: forklifts, stackers, metallurgical industry, container front forks, cranes and other large lifting equipment and material lifting equipment.
Catalogue of Combined Roller Bearings for Forklift
The best combination axial part/radial part allows to get high load capacity with extremely small dimensions of the bearing, in addition to easiness of assembling on any kind of structure.
Fixed combined bearings have the following technical characteristics:
- Outer ring and axial little roll are manufactured in case-hardening steel type 20CrMnTi.
- This kind of steel guarantees a very good resistance to stress, and assures a very good resistance against crashes. The surface hardness can reach 60-2 HRC for both of them.
- Inner ring and pin are manufactured in core-hardened 100 Cr6 steel. The total-hardening steel guarantees high resistance to wear and stress; both of them reach 60-2 HRC hardness value.
- ZRS seal system, realized by C.R. during the recent years, prevents outer agents, such as dust, wet and mill scale, to enter the inner part of the bearing, and at the same time it prevents the leakage of lubrication grease.
- The lateral thrust cover is made in case-hardening steel as well.
- The central pivot is made in low carbon C20/C45 steel, which guarantees high resistance and is highly suitable for welding.
