Quick Details
-
Type:
-
4K HDMI KVM Switch 4x1
-
PC 1 Input:
-
4xHDMI+4xUSB-B
-
Output Ports:
-
1x HDMI
-
Connector A:
-
1xUSB for Keyboard
-
Connector B:
-
1xUSB for Mouse
-
Connector C:
-
1xUSB for Printer/U disk...
-
Connector D:
-
Microphone port
-
Connector E:
-
Headphone port
-
Remote::
-
Support and IR control
-
Certificate:
-
FCC/CE/RoHS
Quick Details
-
Brand Name:
-
Netral or OEM
-
Model Number:
-
T-KV304A
-
Place of Origin:
-
Guangdong, China
-
Type:
-
4K HDMI KVM Switch 4x1
-
PC 1 Input:
-
4xHDMI+4xUSB-B
-
Output Ports:
-
1x HDMI
-
Connector A:
-
1xUSB for Keyboard
-
Connector B:
-
1xUSB for Mouse
-
Connector C:
-
1xUSB for Printer/U disk...
-
Connector D:
-
Microphone port
-
Connector E:
-
Headphone port
-
Remote::
-
Support and IR control
-
Certificate:
-
FCC/CE/RoHS

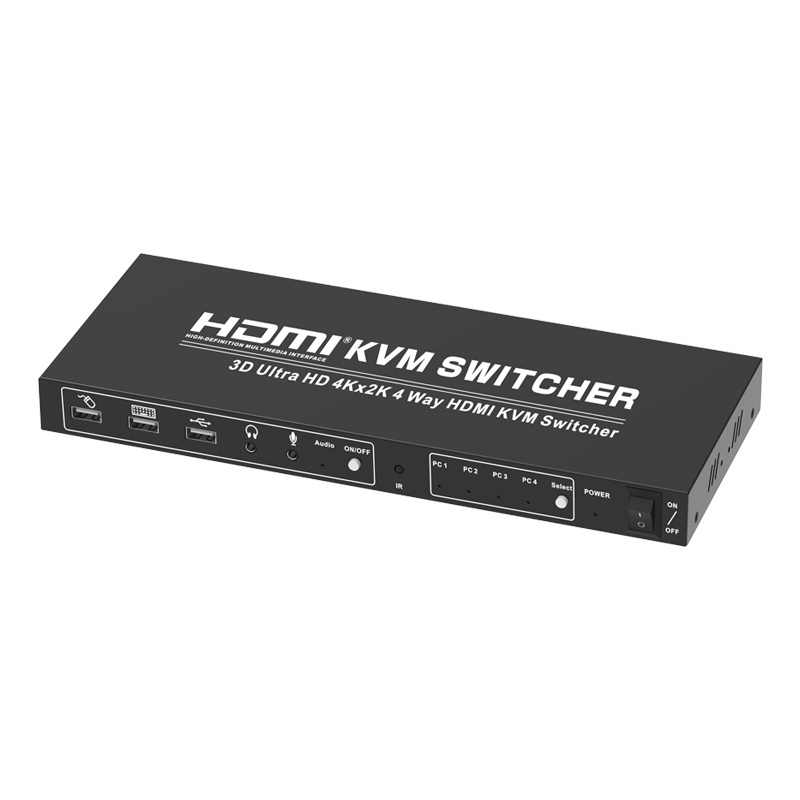

4K HDMI USB KVM Switch 4x1 HDMI KVM Switch Switcher 4 Port with Keyboard and Mouse Control
1.0 Introduction :
The HDMI KVM Switch with built-in sound effect function. It is specially designed for users of PC and Mac with built-in HDMI interfaces and loyal fans of SOHO environment and technology, which is well-suited for HDMI. This unique type of KVM switch can easily control four computers, which have built-in HDMI interfaces, via a HDMI display and either a PC or Mac keyboard and mouse. I mage distortion due to conversion of analog and digital signals will not be a problem anymore.
This KVM switch controls multiple PCs from one keyboard, mouse and HDMI monitor.
2.0 Features:
1.One USB or PS/2 console controls 2 HDMI-interface computers .
2.Switch model: via front panel push buttons ,remote control and hot keys .
3.HDMI digital monitor support-fully compliant with HDMI 1.4
also HDCP 2.2 compliant .
4.Superior video quality-supports 480i,480p,720p,1080p ,3840x2160@30Hz.
5.Support Hot plug&play .
6.Support widescreen resolutions .
7.OS support-Windows, Linux, and Mac .
8.Auto Scan Mode for monitoring all computers and HDMI devices.
3.0 Packaging accessories:
1. HDMI KVM Switcher---- -------------------------- - 1 P CS
2. Remote c ontrol ---------------------------------------- 1P C S
3. 5V DC Power Adaptor------------------------------1 P CS
4. User Manual------------------------------------------1 P CS
4.0 Technical parameters :
|
Computer Connections |
4 |
||
|
Connectors |
Console Ports |
Keyboard |
1 X USB Type A Female |
|
Video |
1 x HDMI TYPE A Female |
||
|
Mouse |
1 x USB Type A Female |
||
|
USB device |
1 x USB Type A Female |
||
|
KVM Ports |
Keyboard / Mouse /USB |
4 USB Type B Female |
|
|
Video |
4 HDMI Type A Female |
||
|
Power |
1 x DC Jack |
||
|
S tereo /microphone |
3.5mm Jack |
||
|
Switches |
Selected |
2 Push button |
|
|
Emulation |
Keyboard/Mouse |
USB x2 |
|
|
Video |
3840x2160,4096x2160@30Hz |
||
|
Scan Interval |
10 seconds |
||
|
Power Consumption |
DC 5V |
||
|
Environment |
Operating Temp |
0-50 |
|
|
Storage Temp |
-20-60 |
||
|
Humidity |
0-80% RH, Non-condensing |
||
|
Physical Properties |
Housing |
Metal |
|
|
Weight |
0.8kg |
||
|
Dimensions (L x W x H) |
276x110x25mm |
||
1. UPS / DHL / FEDEX /EMS / TNT and so on (door to door)
2. For Air Shipment, Please choose your favorite
shipping method according to your detail requirement
3. The shipping discount is different in different seasons and depend on different weight, we will choose the cheapest and safest way according to your detail quantities
4. Normally, it will take around 3-7days from China to
the
destination country. Please note that some remote place will need 1-3 days more.
Delivery:
1. Samples within 1-3 days
2. Wholesales Orders : 5-7 days according various quantities
3. OEM 10-12 days after receiving your sample confirmation and payment.
Warranty:
1. One year warranty.
2. Please send back the defective goods within the warranty period, we will repair them or send you new ones for free.
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it just to confirm your problem, then we will send you free new goods instead.
