Quick Details
-
Size:
-
7500*3500*3200mm
-
Material:
-
hot-dip galvanized steel, Hot-dip galvanized
-
Warranty:
-
3 years
-
Output Power:
-
22kw
-
Product name:
-
Automatic Car washer
-
Usage:
-
Car wash
-
Layout:
-
7500*3500*3200mm
-
Washing speed:
-
3-8 Minutes
-
Certificate:
-
CE
-
Voltage:
-
380V three phase 50HZ
-
Packing:
-
13CBM
-
Place of origin:
-
China
-
Logo:
-
Could be customized
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HUAYE
-
Model Number:
-
L3-100
-
Size:
-
7500*3500*3200mm
-
Material:
-
hot-dip galvanized steel, Hot-dip galvanized
-
Warranty:
-
3 years
-
Output Power:
-
22kw
-
Product name:
-
Automatic Car washer
-
Usage:
-
Car wash
-
Layout:
-
7500*3500*3200mm
-
Washing speed:
-
3-8 Minutes
-
Certificate:
-
CE
-
Voltage:
-
380V three phase 50HZ
-
Packing:
-
13CBM
-
Place of origin:
-
China
-
Logo:
-
Could be customized
Product Description

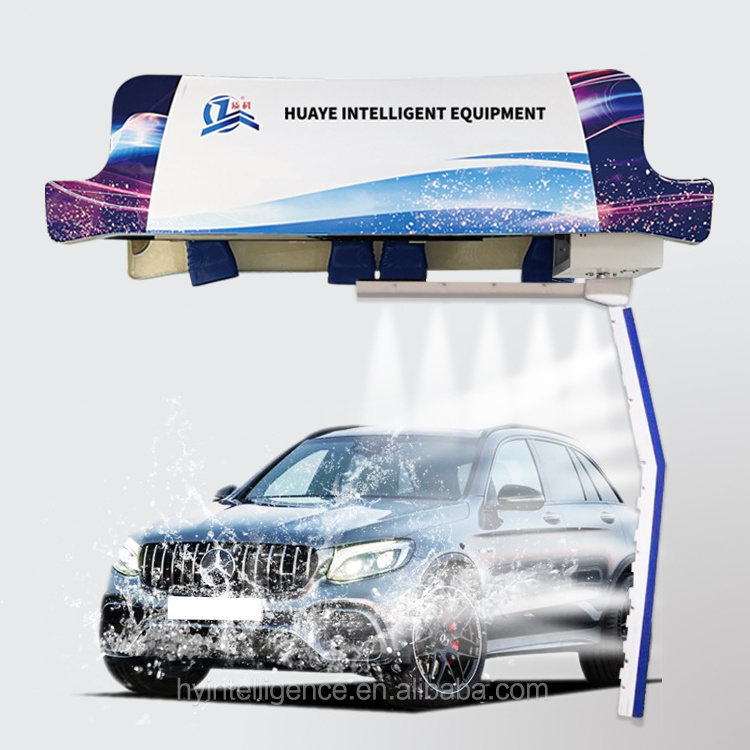

Touchless Fully Automatic Car Washing Machine With Single Arm High Pressure Auto Car Washer Auto Car Wash Machine System
The new generation of touchless system stands out in so many ways: looks, mechanics, flexibility, and versatility. It has been created to satisfy the needs of the most demanding professionals in the wash world. What’s more, this new series has a special quality which makes it different to anything the market has ever known before: its adaptability. The interior immediately appeals with its stylish modern design, which combines the latest technology and maximum reliability in the wash.
Specification
|
|
Item
|
Parameters
|
|
1
|
Dimension（L*W*H）
|
3000*1300*1000mm
|
|
2
|
Layout(L*W*H)
|
7500*3500*3200mm
|
|
3
|
Max. Wash height
|
2000mm
|
|
4
|
Max. Wash width
|
2500mm
|
|
5
|
Max. Wash length
|
6000mm
|
|
6
|
Washing speed
|
3-8 min.(depend on the operation mode or procedure chosen )
|
|
7
|
Total weight
|
2500kg
|
|
8
|
Power supply
|
380V/25kw
|
|
9
|
Air switch
|
100A
|
|
10
|
Water pump motor power
|
18.5kw
|
|
11
|
Fan motor power
|
5.5kw*4 sets
|
|
12
|
Moving motor power
|
0.37kw frequency control
|
|
13
|
Rotation motor power
|
0.37kw frequency control
|
|
14
|
Control system
|
PLC+HMI control system
|
|
15
|
Drive system
|
Frequency inverter control
|
|
16
|
Detection system
|
Ultrasonic intelligent three-dimensional detection
|
|
17
|
Water consumption
|
100-180L/car
|
|
18
|
Electricity consumption
|
0.5-1.4kw•H/car
|
|
19
|
Packing
|
≈13CBM
|
Products Description
|
Main Features:
|
|
|
||
|
1
|
Energy saving system
|
√
|
||
|
2
|
Water pressure stage control
|
√
|
||
|
3
|
Vehicle width detecting
(Spraying arm Left-right moveable according to the vehicle width）
|
√
|
||
|
4
|
Self-parking and detecting system
|
√
|
||
|
5
|
Vehicle collision avoidance system
|
√
|
||
|
6
|
Inbuilt air dry system
|
√
|
||
|
7
|
Freeze Prevention system
|
√
|
||
|
8
|
Lubrication-free
|
√
|
||
|
9
|
Operation permission setting function
|
√
|
||
|
10
|
Equal pressure anti blocking nozzle
|
√
|
||
|
11
|
Safe alarm system
|
√
|
||
|
12
|
Throughput info.
|
√
|
||
|
13
|
Automatic standby system
|
√
|
||
|
14
|
Breakdown self check
|
√
|
||
|
15
|
Galvanized steel frame
|
√
|
||
|
16
|
LED indicator system
|
√
|
||
|
17
|
Voice prompts function
|
√
|
||
|
18
|
Remote control
|
√
|
||
|
19
|
Automatic standby service
|
√
|
||
|
Function:
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
1
|
Chassis wheel washing
|
√
|
||
|
2
|
360° high pressure washing
|
√
|
||
|
3
|
Detergent spraying
|
√
|
||
|
4
|
Colorful/high Foam spraying
|
√
|
||
|
5
|
Wax spraying
|
√
|
||
|
6
|
Air dryer
|
√
|
||
|
Optional:
|
|
|
||
|
1
|
Self-service payment system
|
●
|
||
|
2
|
Colorful lights
|
●
|
||
|
3
|
Water recycle system
|
●
|
||
|
Standard √ Optional ●
|
|
|
||
Funtion：
★Chassis and wheel washing
High Pressure water spray removes the dirt and muds on the chassis and wheels of the vehicle.
★ Washing liquid spraying
★ Colorful Foam spraying
Foam changes its color in the process of applying to the car body. Easily removes road dust, dirt, oil, insect traces. It makes a stable foam that is easily washed off the surface. Does not harm aluminum, nickel-plated surfaces and other coatings from non-ferrous alloys.
★ 360°high pressure washing
High water pressure up to 100 bar（150 bar is optional）to remove the dirt, muds and insects body on the vehicle body, the water pressure can be set freely on the man-machine interface. water saving and engery saving.
★ Wax spraying
★ Air dryer 5.5kw*4sets frequency
Parts Brand/Power
：
