Quick Details
-
Brand Name:
-
easemind
-
Model Number:
-
G7-D2-LS
-
Product name:
-
RF Wireless Digital Alarm Sensor Wireless Alarm Detector
-
Application:
-
Liquid Tank Detection Appliance
-
Output signal:
-
0~10V
-
Type:
-
RF Module
-
Operating Voltage:
-
2.6~3.6V DC
-
Usage:
-
Fuel Tank Level Monitoring
-
Certificates:
-
CE ROHS
-
Network Port:
-
10/100M Ethernet
-
Protocol:
-
Active TCP/Modbus TCP
-
RF Wireless:
-
433 MHz, 4.8Kbit/s
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
2 years
-
Place of Origin:
-
Hong Kong S.A.R.
-
Brand Name:
-
easemind
-
Model Number:
-
G7-D2-LS
-
Product name:
-
RF Wireless Digital Alarm Sensor Wireless Alarm Detector
-
Application:
-
Liquid Tank Detection Appliance
-
Output signal:
-
0~10V
-
Type:
-
RF Module
-
Operating Voltage:
-
2.6~3.6V DC
-
Usage:
-
Fuel Tank Level Monitoring
-
Certificates:
-
CE ROHS
-
Network Port:
-
10/100M Ethernet
-
Protocol:
-
Active TCP/Modbus TCP
-
RF Wireless:
-
433 MHz, 4.8Kbit/s
RF Wireless Digital Alarm Sensor Wireless Alarm Detector water level control switch
With G7 wireless digital alarm input and Base Station, you can start monitoring sensor measurement online remotely.
Wireless sensor G7 transmits measurement of any detector with dry contact output signal to Base Station via wireless signal. Base Station collects all the wireless sensors readings and uploads to central server in interval via Modbus TCP protocol.
G7-Centre App receives data from Base Station over Internet or LAN.
G7 Client App for Windows10, iOS, Android displays and stores all the incoming data in computer/tablet/smartphone for data analysis. By monitoring and understanding how measurement changes, user can be alerted by alarm triggered by alarm e.g. smoke detector, level switch, water leakage.
G7-D2 is a wireless digital alarm sensor.
It transmits digital sensor data wireless via RF.
[In the Package]
1 x Base Station & RF Antenna
1 x AC/DC Adaptor
1 x Ethernet Cable
Up to 64 x Wireless Sensors in one single system

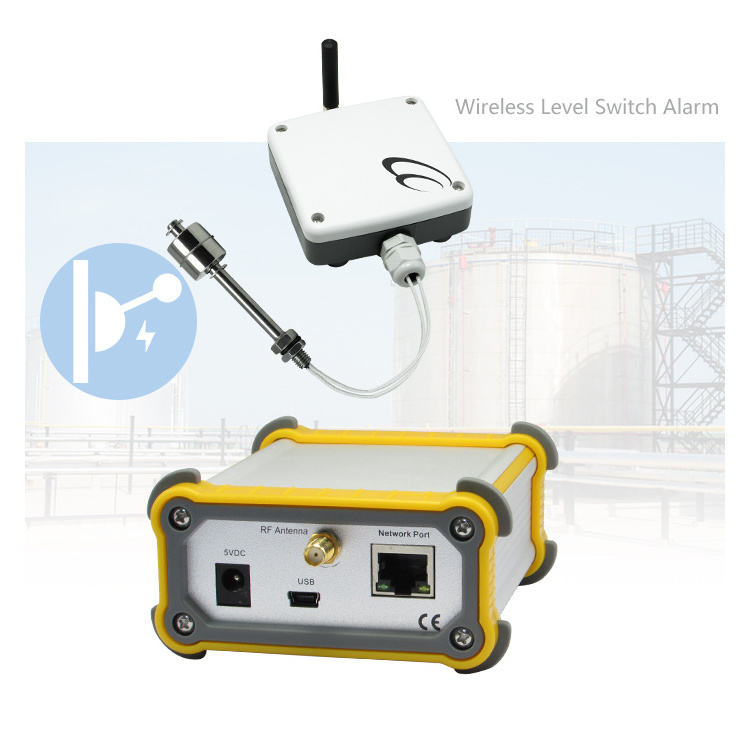

Wireless Level Switch Alarm
* supports max. 64 wireless level alarm
* battery operated
applications:
- oil tank level alarm
- oil truck level alarm
- river, lake, reservoir level alarm
[How it Works]
(1) Wireless Sensor
The sensor transmits the digital detector alarm to Base Station wireless over radio frequency up to 1200 meter unblocked. Its internal battery operates for average one year. All sensors are waterproof and internal/external antenna adjustable.
* G7-AD Wireless Analog Sensor
* G7-D2 Wireless Digital Alarm Input
* G7-T2/TX Wireless Temperature Sensor
* G7-H2/H3 Wireless Temperature Humidity Sensor
* G7-T2/TX-Ex Wireless Temperature Sensor [Extended Power]
* G7-H2/H3-Ex Wireless Temperature Humidity Sensor [Extended Power]
(2) Base Station
It is a gateway between user and sensors. Base Station receives reading from max. 64 wireless sensors in a range of 1200m. This station is connected to the Internet or LAN connection. Information of all sensors collected in one data record is then sent to the central computer over LAN or Internet in Modbus TCP protocol.
(3) G7 Wireless Client App for Windows, iPad, Android
By using free G7 Client Lite, users receive data from Base Station over LAN or Internet. Data will be saved into file for future analysis and displayed in graphics with live alarm alert.
[Technical Specification]
|
G7-D2 |
Wireless Digital Alarm Input |
|
Digital Alarm Input |
2 x channels |
|
|
Dry Contact |
|
Transmission Interval: |
User Programmable 5s ~ 4 hours |
|
Sensor ID: |
Unique 8 digits |
|
RF Wireless: |
433MHz, 4.8Kbit/s |
|
RF Power: |
10dBm |
|
Wireless Distance: |
1200 meter (unblock) |
|
Operation Rating: |
80mA (data transmission) |
|
Standby Rating: |
~3.0uA (sleep mode) |
|
Operating Voltage: |
2~3.6V DC |
|
Battery Life: |
Average 1~2 year |
|
Dimension: |
80 x 80 x 28 mm |
|
Base Station |
|
|
Protocol: |
Active TCP |
|
|
Modbus TCP |
|
Network Port: |
10/100M Ethernet |
|
Data Packet: |
Instant on incoming data of connected sensors |
|
RF Wireless: |
433MHz, 4.8Kbit/s |
|
RF Address/Band: |
255/15 |
|
Operating Voltage: |
5 ~ 20V DC |
|
Rating: |
< 130mA |
|
Operating Temperature: |
-35 ~ 75 °C |
|
Dimension: |
70 x 65 x 35 mm |
[Applications]
* water pipes network real time monitoring – level switch sensor
* oil/gas pipes network, pump stations – valve open contact
* underground water level real time monitoring
* environmental monitoring system – level or light sensors
* remote Industrial equipment monitoring
* wide area equipment monitoring e.g. power plant, antenna tower
* data centre for water leakage detection
* food chain, storage, transport industry, building management
* agricultural, farming, laboratory, medical industry – water leakage
