- Product Details
- {{item.text}}
Quick Details
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Name:
-
Medical waste Incinerator

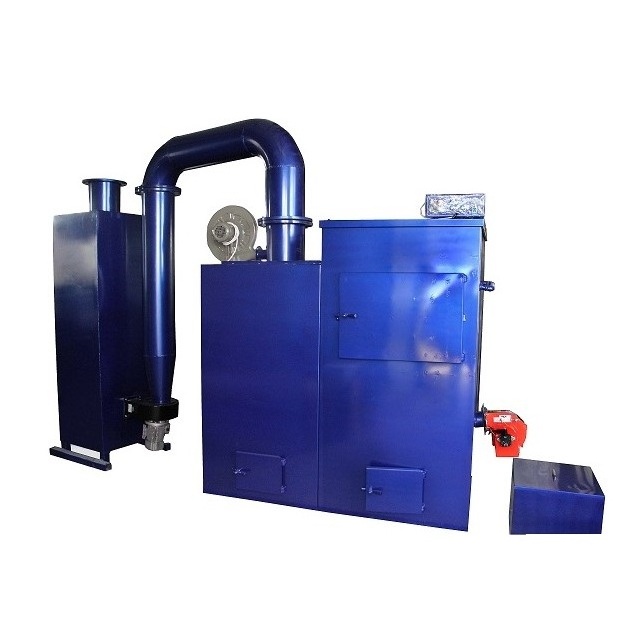

JK-MI-20 20kg/h hospital medical waste incinerator
Product Description:
It is suitable for the health sector, farm, blood station, epidemic prevention station, surgical waste in hospital and viral material.
Types of medical waste incinerated: disposable syringe, infusion set, cotton yarn, some materials used in the operating room , stump, rubber gloves, dumped protective clothing and sickbed supplies which are infectious and hazardous
Main features:
It has been assessed and registered as meeting the requirements of ISO9001 and 14000.
With Italian fuel injection system
Automatically control system, digital display
With the founction of time set, automatically incinerate and ignite,Negative pressure burning,Use the diesel for fuel.
Can meet the requirements of the national environmental protection standard.
Low failure rate, low maintenance and operating cost
Safety device:
Burner safety device: fuel supplies can be automatically cuted off ,when the burner ignition device is unnormal
Technical parameter:
|
Model |
Capacity |
F uel |
Ignition Mode |
Power |
Power Supply |
Overall Dimension |
Weight |
|
JK-MI-10 |
10Kg/H |
Diesel fuel |
A utomatically |
700W |
220V/50HZ |
140*75*130cm |
800kg |
|
JK-MI-20 |
20Kg/H |
Diesel fuel |
A utomatically |
900W |
220V/50HZ |
145*85*140cm |
900kg |
|
JK-MI-30 |
30Kg/H |
Diesel fuel |
A utomatically |
1100W |
220V/50HZ |
150*80*145cm |
1000kg |
|
JK-MI-50 |
50Kg/H |
Diesel fuel |
A utomatically |
1800W |
220V/50HZ |
160*90*150cm |
1200kg |
|
JK-MI-100 |
100Kg/H |
Diesel fuel |
A utomatically |
2500W |
220V/50HZ |
170*100*180cm |
2000kg |
|
JK-MI-200 |
200Kg/H |
Diesel fuel |
A utomatically |
3500W |
220V/50HZ |
190*140*220cm |
3000kg |
|
Smoke Processor |
|
|
|
|
70*80*220cm |
100kg |
|
Basic Configuration:
Capacity:20Kg/h;Fuel:Diesel fuel;Ignition Mode:Automatically;Power:900W;Power Supply:220V/50HZ;
Furnace: 1 set (steel furnace, refractories, insulation materials)
Dust collector: 1 set; Exhaust pipe: 1 set
Oil Pump: 1 unit; Fan: 1 set
Italian importing fuel injection system: 1 set
Carbon steel storage tank: 1 unit
Carbon steel chimney: 1 set
Carbon steel flue: 1 set
Automatically control system: 1 set
Safety equipment: 1 set (Including the burner safety devices, lightning protection safety devices, etc.) Overall dimension:145*85*140cm;;Weight:900Kg;Packing size:165*100*155cm;
Installation Diagram
Application case:
