Quick Details
-
Rated Loading Capacity:
-
5 ton
-
Rated Lifting Moment:
-
customize
-
Max. Lifting Height:
-
15.8m
-
Span:
-
4.5-15.8
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
NUOMAN
-
Showroom Location:
-
USA
-
Product name:
-
Spider Crane
-
Key words:
-
Mini Hydraulic Crane
-
Usage:
-
Outdoor Construction Goods Lifting
-
Crane type:
-
Truck Crane Mobile Crane Hydraulic Crane
-
Keyword:
-
Outdoor Lifting Machine
-
Type:
-
5T Crawler Spider Crane
-
Capacity:
-
1-8 Ton
-
Model:
-
Mini Crawler Spider Crane
-
Color:
-
Customer Requirements
-
Applicaton:
-
Hydraulic Arm Crane
Quick Details
-
Weight (KG):
-
5000
-
Marketing Type:
-
Hot Product 2023
-
Application:
-
construction
-
Rated Loading Capacity:
-
5 ton
-
Rated Lifting Moment:
-
customize
-
Max. Lifting Height:
-
15.8m
-
Span:
-
4.5-15.8
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
NUOMAN
-
Showroom Location:
-
USA
-
Product name:
-
Spider Crane
-
Key words:
-
Mini Hydraulic Crane
-
Usage:
-
Outdoor Construction Goods Lifting
-
Crane type:
-
Truck Crane Mobile Crane Hydraulic Crane
-
Keyword:
-
Outdoor Lifting Machine
-
Type:
-
5T Crawler Spider Crane
-
Capacity:
-
1-8 Ton
-
Model:
-
Mini Crawler Spider Crane
-
Color:
-
Customer Requirements
-
Applicaton:
-
Hydraulic Arm Crane
Product Description

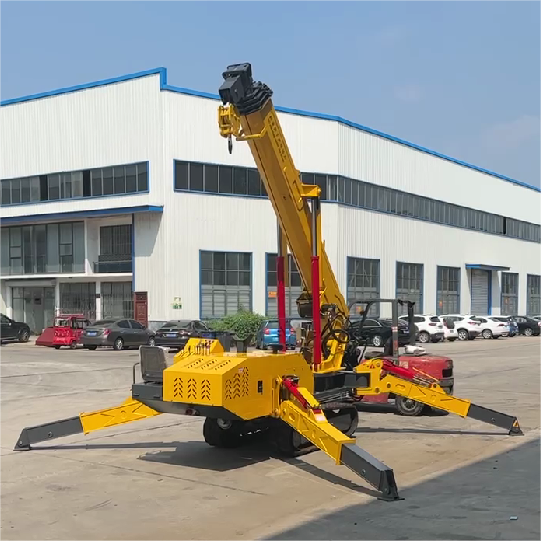

Crawler spider crane is a powerful heavy-lifting machine that is designed to operate in difficult terrain and confined spaces. It is a versatile piece of equipment that can perform a wide range of lifting tasks, from building construction to infrastructure maintenance, and from wind turbine installation to shipyard operations.
Product Details
Advantage:
1. The Crawler Spider Crane for moving loads quickly, easily, and safely.
2. Spider crane, suitable for occasions with limited space.
3. The spider crane is a full-slewing, boom-type, full-hydraulic transmission crane.
4. The main arm section adopts a U-shaped structure. The single-stage telescopic oil cylinder and the wire rope telescopic
mechanism can realize the synchronous expansion and contraction of the main arm.
3. The spider crane is a full-slewing, boom-type, full-hydraulic transmission crane.
4. The main arm section adopts a U-shaped structure. The single-stage telescopic oil cylinder and the wire rope telescopic
mechanism can realize the synchronous expansion and contraction of the main arm.
|
5 tons spider crane parameters
|
|
|
|
Lifting arm
|
4.5 m/5 sections （15.8 m）
|
|
|
Amplitude of variation
|
Double variable amplitude cylinder
|
|
|
Turntable
|
840mm inner tooth disc
|
|
|
Winch
|
6 tons of winch
|
|
|
Wire rope
|
10mm thick 80 meters long
|
|
|
Outrigger
|
4 double legs (manual swing hydraulic telescopic)
|
|
|
Body size
|
5 meters long, 1.6 meters wide and 2 meters high
|
|
|
Track size
|
2.6 meters long and 350 wide
|
|
|
Weight
|
5 Tons
|
|
|
engine
|
Yunnei 490 Four cylinders
|
|
|
Electric motor
|
11 KW 380V
|
|
|
Operating system
|
Onboard seat operation (Remote control is optional)
|
|
