Quick Details
-
Lift Speed:
-
8m
-
Weight (KG):
-
80 kg
-
electric hoist name:
-
electric stage chain hoist
-
mine hoist Volt:
-
380 3p 50hz
-
hoist Rope Guide:
-
Yes
-
Over Load Limit:
-
Available
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HUGO
-
Lift Speed:
-
8m
-
Weight (KG):
-
80 kg
-
electric hoist name:
-
electric stage chain hoist
-
mine hoist Volt:
-
380 3p 50hz
-
hoist Rope Guide:
-
Yes
-
Over Load Limit:
-
Available

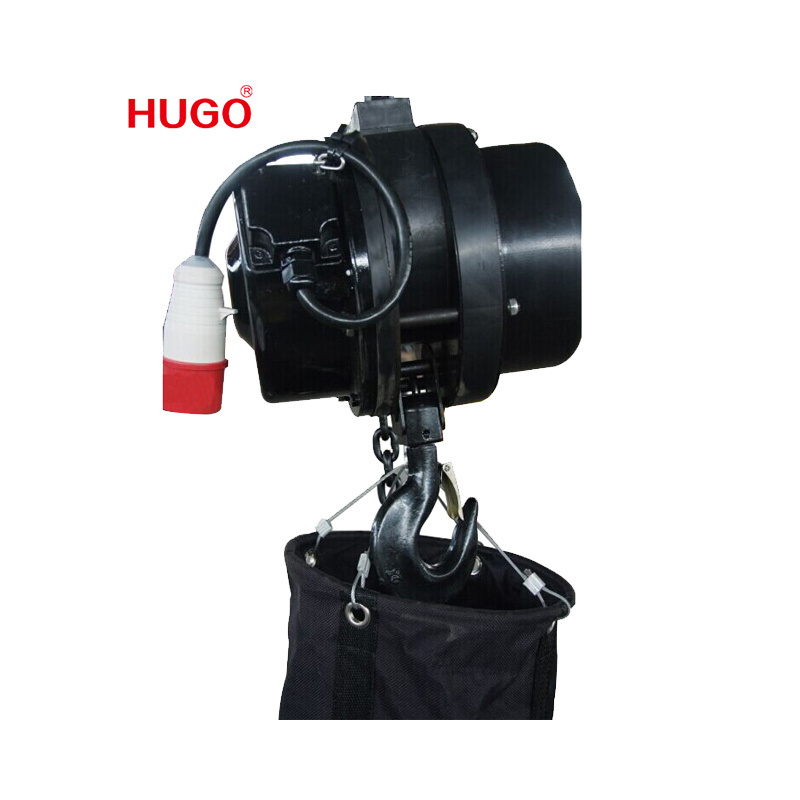

lifting 500kg electric stage chain hoist for truss
Lifting equipment 1ton chain hoist electric stage hoist 220V
Parameters of stage electric hoist
|
Capacity(KG) |
Model |
Power(kw) |
No. of load Chain (mm) |
Lift speed (m/min) |
Weight of hoist without load chain (kg) |
Weight of Load chain (Kg/m) |
|
500 |
HCH 0.5A |
0.42 |
1 |
4 |
30 |
1.1 |
|
500 |
HCH 0.5B |
0.86 |
1 |
8 |
48 |
1.1 |
|
500 |
HCH 0.5C |
0.83 |
1 |
4 |
48.5 |
1.1 |
|
1000 |
HCH 1A |
1.5 |
1 |
8 |
50 |
1.1 |
|
1000 |
HCH 1B |
0.86 |
2 |
2 |
52 |
2.2 |
|
2000 |
HCH 2A |
1.5 |
2 |
4 |
54 |
2.2 |
|
2000 |
HCH 2B |
1.5 |
1 |
16 |
50 |
1.1 |
1.Introduction of wholesale alibaba electric chain hoist price crane hoist
Advantages:
1.Reducer: adopt third-class dead axel helical gear transmission structure gear and geaaxel are made of heat treated alloy steel
2.Button Switch: easy to operate, safey for operator, both remote control and pendant control are available.
3.Motor: three-phase asynchronous induction motor, durable and powerful. Insulation grade is F.
4.Protection grade: IP54, work grade: M3
5.Over load limit is available. Hook is widen and thicken
6. Power-Off protection, Emergency stop system.
Application :
7. Hoist Crane Price can travel rotation through the trolley hanging on the I-steel,and install on the single beam crane,gantry crane,jib crane and overhead crane to rise and fall the cargos. So it can be used in factories, mines, wharf, warehouse,freightyards,and shops and so on which need lifting equipment for lifting heavy objects.
Safety Features :
8. Fire stopper:Adjustable mechanical memory structure,high sensitivity
Weight limiting stopper:preventing hook clashing the top, sensitive reaction. Safe and durable, easy to install and debug
Overload limiter:Preset related data according working condition,show accurate weight;value clearly .Modular,low power design
Stage electric hoist Packing box
Stage electric hoist Packing box
Use case & Service
1. Many OEM producers choose our products .
2. We have more than 50 professional technical teams, provide best global after-sales service.
3.Fast delivery time.
4. All products have acquired the CE , ISO,PICC.SGS,TUV certificate.
5. we are one of the market leaders in crane hoist designing and manufacturing in China.
