Quick Details
-
Drilling depth:
-
1.6(m)
-
Swing angle:
-
180(°)
-
Power head speed:
-
1500(rpm)
-
Maximum torque:
-
2500(kn.m)
-
Gradeability:
-
15(°)
-
Walking speed:
-
40(km/h)
-
Distance between wheels:
-
1670mm
-
Matching drill pipe type:
-
Concrete drilling
Quick Details
-
Place of Origin:
-
Shandong, China
-
Name:
-
Highway guardrail pile driver/Loaded pile driver
-
Drilling diameter:
-
114-160(mm)
-
Drilling depth:
-
1.6(m)
-
Swing angle:
-
180(°)
-
Power head speed:
-
1500(rpm)
-
Maximum torque:
-
2500(kn.m)
-
Gradeability:
-
15(°)
-
Walking speed:
-
40(km/h)
-
Distance between wheels:
-
1670mm
-
Matching drill pipe type:
-
Concrete drilling

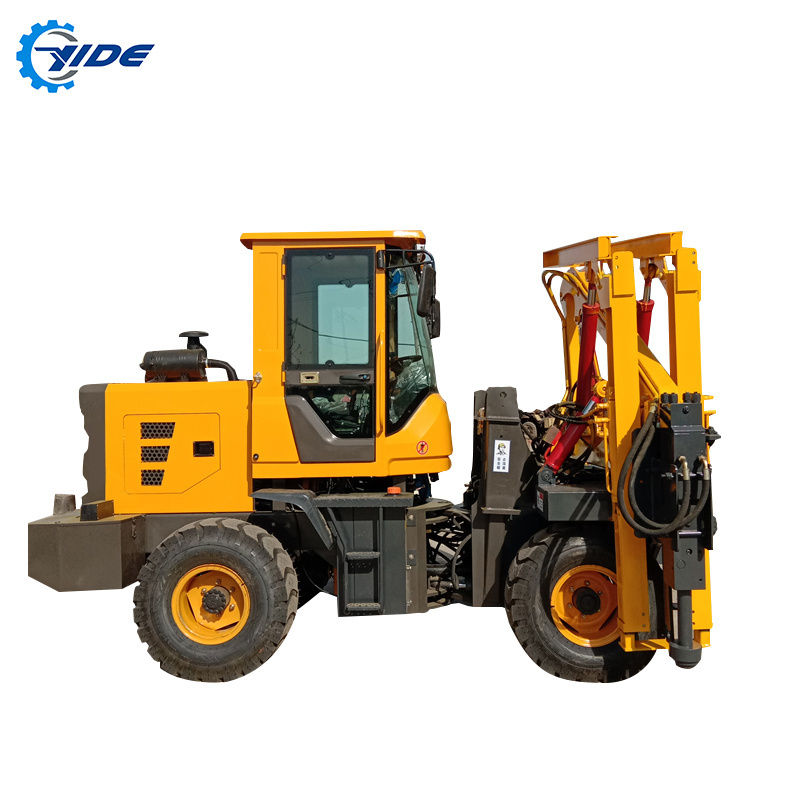

Hydraulic post installation highway guardrail pile driver
H ighway guardrail drilling rig is a piling drilling machine widely used in highway, railway, construction, hydropower, port and other construction projects. with advanced product performance, high work efficiency, comfortable operation, and standardized components for key components, which can adapt to various harsh working environments and are ideal equipment for construction.
Pressure system: Advanced hydraulic system, high-quality hydraulic components and strict assembly process to ensure high efficiency and durability of hydraulic system.
Model design: The overall frame structure is excellent and the materials are completely GB. High strength, good stability, and industrial design, the operator's working space is more spacious.
Production process: The production process is more reasonable, and the wear parts are heat treated. The welding process is rigorous, the overall stress relief treatment of the frame welding, the deformation is reduced, and the testing equipment is perfect.
| Pile machinery | Loaded pile driver |
| Brand | YIDE |
| model | YD920 |
| Drilling diameter | 114-160(mm) |
| Drilling depth | 1.6(m) |
| Swing speed | 2(m) |
| Swing angle | 180(°) |
| Power head power | 45(kw) |
| Power head speed | 1500(rpm) |
| Maximum torque | 2500(kn.m) |
| Gradeability | 15(°) |
| Walking speed | 40(km/h) |
| Vehicle weight | 4.2(t) |
| Matching drill pipe type | Concrete drilling |
| Dimensions | 420*228*270(cm) |
| Hydraulic hammer impact frequency | 13-18HZ |
| Hydraulic hammer flow | 60-851/min |
| Hydraulic hammer working pressure | 14-16MPA |
| Diesel engine power | 45kw |
| Hydraulic system flow | 55-65ml/r |
| Distance between wheels | 1670mm |
| Machine quality | 4200kg |
| Configuration details |
Huichai 4102 engine (with integrated pile driver oil pump) 1 set, 260 hammer head 1, 1 hammer cake,
1 set of O-ring set, 1 set of wrench tool kit. |
| Name | Electric pile driver/Spiral pile drilling machine |
| Brand | YIDE |
| model | YXK-350 |
| Drilling diameter | 150(mm) |
| Drilling depth | 2.2(m) |
| Swing speed | 30(m) |
| Swing angle | 360(°) |
| Power head power | 5.5kw / 7.5kw |
| Power head speed | 36(rpm) |
| Maximum torque | 20(kn.m) |
| Gradeability | 25(°) |
| Walking speed | 3-5(km/h) |
| Vehicle weight | 0.03(t) |
| Matching drill pipe type | Spiral pile nail |
| Dimensions | 2200*500*450mm(cm) |
| Motor voltage | 380V |
| Motor phase number | Three-phase electricity |
| Mobile mode | Push the wheel |
| Machine weight | 150-220KG |
| Drilling speed | 2 minutes / meter |
| Rotating speed | 36 rev / min |
| Transmission mode | Upper slide chain drive |
| Lifting method | Manual hoist |
| Slide rail diameter | 30MM |
| Pile length range | ≤2 MM |
| Pile diameter range | ≤110MM |
