Quick Details
-
Rolling thinckness:
-
0.3-1mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BN
-
Voltage:
-
380V/50HZ 3Phase(as Customer's Request)
-
Dimension(L*W*H):
-
5*1.5*1.8m
-
Weight:
-
3000 kg
-
Feeding width:
-
100mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Forming stations:
-
about 8stations +1 station of rectify (according the final design)
-
Material Thickness:
-
0.4-0.8mm
-
Color:
-
Clients' Requirements
-
Control system:
-
PLC(imported Brand)
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Roller material:
-
Gr15 Steel Quenched
-
Motor brand:
-
China Famous Brand
-
Certification:
-
CE ISO
Quick Details
-
Type:
-

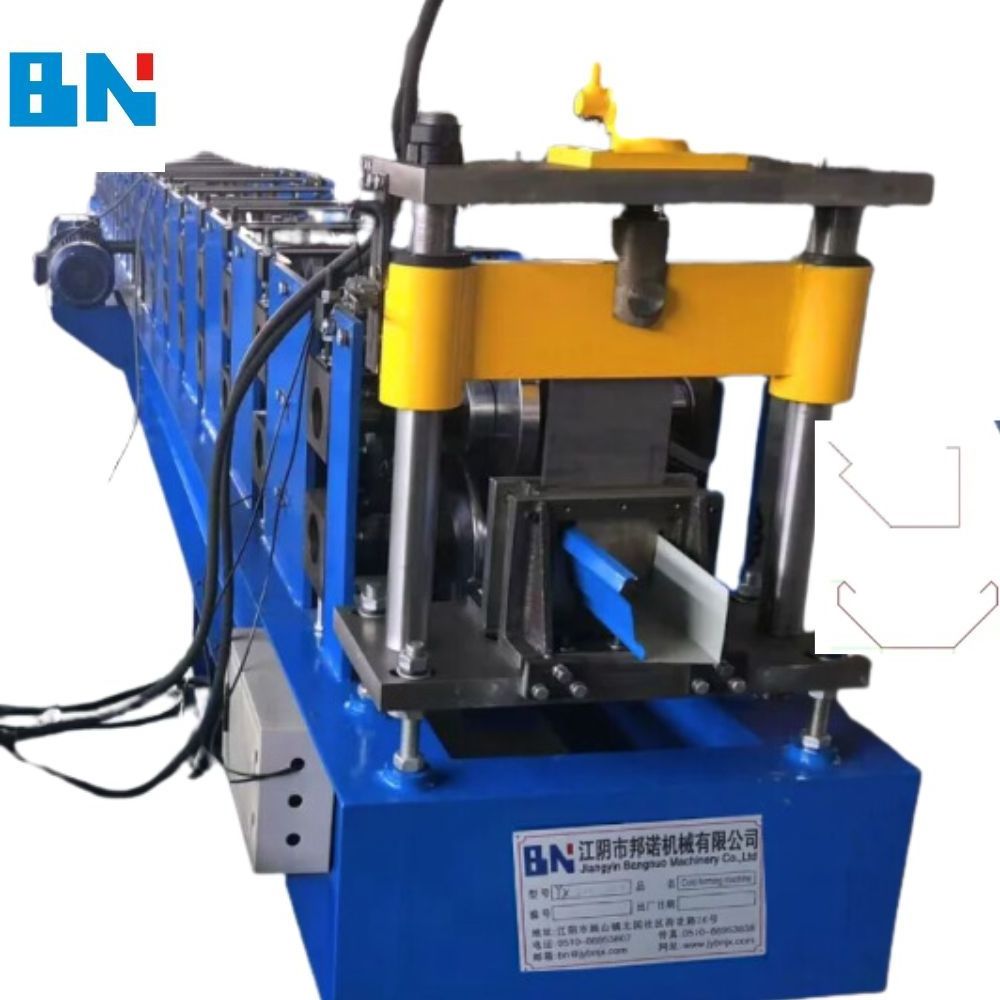

roll forming machine
-
Tile Type:
-
metal
-
Production Capacity:
-
10-20m/min
-
Rolling thinckness:
-
0.3-1mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BN
-
Voltage:
-
380V/50HZ 3Phase(as Customer's Request)
-
Dimension(L*W*H):
-
5*1.5*1.8m
-
Weight:
-
3000 kg
-
Feeding width:
-
100mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Forming stations:
-
about 8stations +1 station of rectify (according the final design)
-
Material Thickness:
-
0.4-0.8mm
-
Color:
-
Clients' Requirements
-
Control system:
-
PLC(imported Brand)
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Roller material:
-
Gr15 Steel Quenched
-
Motor brand:
-
China Famous Brand
-
Certification:
-
CE ISO
Products Description
|
Description |
Explaination |
|
Working speed
|
10-15 m/min（Shear time is not included）
|
|
Pressed plate thickness
|
0.4-0.6mm
|
|
Control mode
|
Panasonic PLC
|
|
Discharging rack
|
2 t manual discharging rack
|
|
Number of molding passes
|
20 lanes
|
|
Roll material
|
After finishing, the surface of 45# steel is chrome plated。
|
|
Shaft material and diameter
|
45# Steel finishing，Shaft diameter is￠65mm
|
|
Main engine power
|
7.5kw
|
|
Power of hydraulic station
|
3kw
|
|
Hydraulic pressure
|
12Mpa
|
|
Scissors material
|
Cr12Mov， quench HRC 58-62℃
|
|
Length tolerance
|
3m±1.5mm
|
|
Voltage
|
380V, 50HZ,3 phase（According to customer requirements can be adjusted）
|
|
Transmission mode
|
1.0 inch single row chain
|
|
Equipment form
|
Slab-wall structure
|
|
Equipment color
|
Company color
|
|
Equipment size
|
L*W*H—10.5m*1.5m*1. 2m
|
|
Date of delivery
|
80 days
|
|
Payment method
|
30% advance charge，70% pay off on delivery
|
Flow Chart
Equipment composition
|
2 t manual discharging rack
|
1 piece
|
|
Molding machine
|
1 set
|
|
Control cabinet
|
1 set
|
|
Hydraulic station
|
1 set
|
|
Discharge table
|
2 sets
|
Details Images
FAQ
1.Q：What is your MOQ?
A:
The minimum order quantity is one set.
2.Q:How can I order?
A:Please contact our staffs for the products you like, then we will send you a quotation.
3.Q:Can I customize the size according to my own drawing?
A:
Of course, everything is according to your requirements.
4.
Q:Can you make our own logo on the products?
A:Yes,custom logo is available.
5.Q:
What services are available after purchase?
A:
Our machine is definitely guarantee for 12 months. If there is any problem,we will send the technician to fix the problem ASAP!
