1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality ,utmost cost-effective globally.
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow
- Product Details
- {{item.text}}
Quick Details
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XINGMUYUAN
-
Model Number:
-
XMY-E900
-
Voltage:
-
380V, 220V, 415V, 230V or as your request
-
Product Name:
-
Exhaust fan
-
Size:
-
900*900*450mm
-
Belt:
-
Japanese Mitsuboshi
-
Frame Material:
-
Galvanized Sheet/Stainless Steel430
-
Motor Brand:
-
China motor/Siemens motor/WEG motor/ABB motor
-
Sample:
-
Accept
-
Customized service:
-
Accept
-
Application:
-
Poultry Farms,Animal Husbandry,Greenhouse, Factory workshop
-
Zinc-Coated Layer:
-
275g/㎡
-
Opening Device:
-
Centrifugal Push-Pull
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
-
Electric Current Type:
-
AC
-
Mounting:
-
Wall Fan
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XINGMUYUAN
-
Model Number:
-
XMY-E900
-
Voltage:
-
380V, 220V, 415V, 230V or as your request
-
Product Name:
-
Exhaust fan
-
Size:
-
900*900*450mm
-
Belt:
-
Japanese Mitsuboshi
-
Frame Material:
-
Galvanized Sheet/Stainless Steel430
-
Motor Brand:
-
China motor/Siemens motor/WEG motor/ABB motor
-
Sample:
-
Accept
-
Customized service:
-
Accept
-
Application:
-
Poultry Farms,Animal Husbandry,Greenhouse, Factory workshop
-
Zinc-Coated Layer:
-
275g/㎡
-
Opening Device:
-
Centrifugal Push-Pull
Product Description

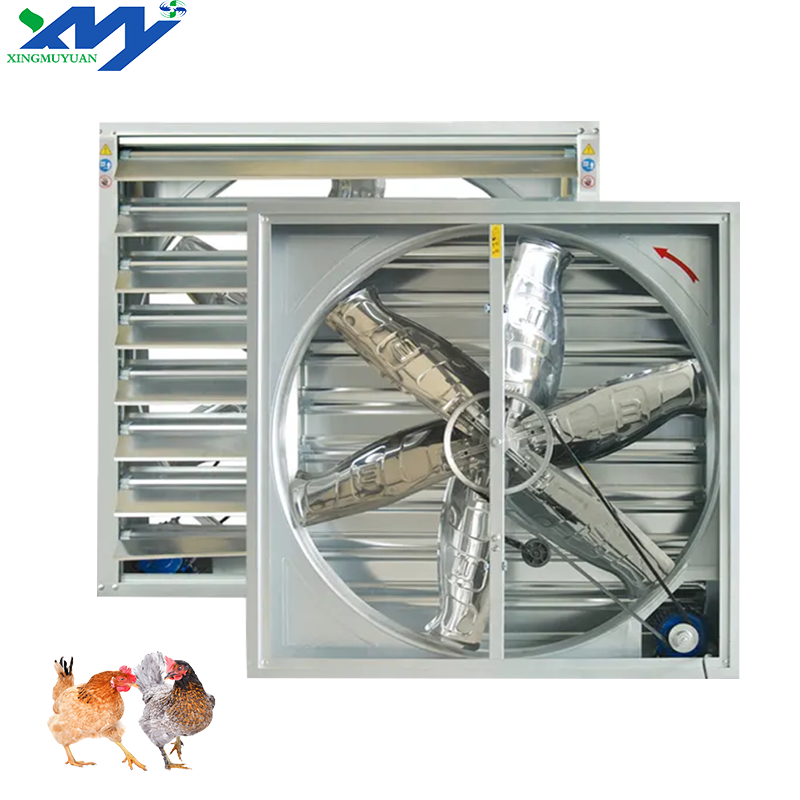

Industrial workshop exhaust fan poultry farm air cooling fans greenhouse wall mounted air ventilation hoods
Adopt CAD/CAM optimization design and manufacture, select panels and accessories, strict quality control, high quality testing requirements make the fan produced by Big Herdsman has the following characteristics: high total pressure, large air volume, low noise, low energy consumption, smooth operation, long life and so on.
|
Product Name
|
Exhaust Fan
|
|
|
|
|||
|
Support Customization
|
OEM, ODM, OBM
|
|
|
|
|||
|
Current Type
|
AC
|
|
|
|
|||
|
Installation
|
Wall Fan
|
|
|
|
|||
|
Blade Material
|
Stainless Steel
|
|
|
|
|||
|
Voltage
|
380V, 220V, 415V, 230V or as your request
|
|
|
|
|||
|
Warranty Period
|
2 Years
|
|
|
|
|||
|
After-sales Service System
|
Online Support
|
|
|
|
|||
|
Model
|
Blades Diameter
(mm)
|
Dimension(mm)
|
Blades Speed(rpm)
|
Motor Speed(rpm)
|
Air flow
(m³/hr)
|
Input power
(KW)
|
|
XMY800
|
710(28inch)
|
800*800
|
660
|
1400
|
18000
|
0.37
|
|
XMY900
|
750(30inch)
|
900*900
|
630
|
1400
|
22000
|
0.55
|
|
XMY1000
|
900(36inch)
|
1000*1000
|
610
|
1400
|
25000
|
0.75
|
|
XMY1100
|
1000(40inch)
|
1100*1100
|
600
|
1400
|
32500
|
0.75
|
|
XMY1220
|
1100(44inch)
|
1220*1220
|
460
|
1400
|
38000
|
0.75
|
|
XMY1380
|
1270(50inch)
|
1380*1380
|
439
|
1400
|
44000
|
1.1
|
|
XMY1530
|
1400(56inch)
|
1530*1530
|
325
|
1400
|
55800
|
1.5
|
Main Features：
Frame 275g Thicken galvanized sheet
We has advanced production technology with automatic equipment. professional production line, NC-based professionalequipment.Auto
punching and bending. Highly-accurated. Materials is made by 275g coating weight galvanized sheet.
Motor
Motor Protection Grade: IP55
Advantage: Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity.
Advantage: Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity.
Belt pulley
Fan belt pulley made of high strength aluminum-magnesium alloy by die-casting. Blast-sanding treatment for attractive appearance,eliminate internal stress to improve its own rigidity and stability.
Fan shutter
High light hot galvanized sheet with zinc thickness of 275g/m2, automatic opening and closing, to wind, rain, dust and other functions, beautiful and generous.
Centrifugal System
centrifugal system open the shutters at complete 90 degree to ensure the lowest air resistance and biggest air volume.When close,the sealing can effciently block light and wind into the poultry farm house. As the first one adopt high quality nylon to ensure
the long service life. The fasteners of centrifugal system all are copper rivets, wear-resisting and no rust, flexible. Guide rod is made of 304 stainless steel, ensure the high strength, no rust, reduce friction
the long service life. The fasteners of centrifugal system all are copper rivets, wear-resisting and no rust, flexible. Guide rod is made of 304 stainless steel, ensure the high strength, no rust, reduce friction
Belt
Belts are Japanese Mitsubishi brand and Sanlux brand for option. Belt type: A and B. wear-resistant and longe service life.Long service life and no repair Modified B type belt,so that service life increase 3times than Type A
.
Fan blade
The material of the blade is Krupp stainless steel, thickness 1.2mm. Large air flow, no deformation, no fracture, no dust, attractive and durable
Fan safe net
Bearing
Imported double-row bearing with special waterproof design.
Advantage: High strength, low noise, free maintenance and long service life.
XINGMUYUAN Exhaust fan are widely used in Agriculture and industry ventilation and cooling.
It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc..
