Quick Details
-
Dimension(L*W*H):
-
4200*1680*2170mm
-
Weight:
-
5000 KG
-
Marketing Type:
-
New Product 2024
-
Mobility:
-
Move by crawler
-
Max. Speed:
-
40 m/min
-
Torque:
-
3200 Nm
-
Max. rotation speed:
-
230 r/min
-
Pushing Force:
-
135KN
-
Pulling Force:
-
135KN
-
Maximum entry angle:
-
18°
-
Maximum flow rate of mud pump:
-
100 L/min
-
Engine power:
-
81KW
-
Application:
-
Construction works
Quick Details
-
Place of Origin:
-
Shandong
-
Brand Name:
-
Hengwang
-
Voltage:
-
380V or diesel engine
-
Dimension(L*W*H):
-
4200*1680*2170mm
-
Weight:
-
5000 KG
-
Marketing Type:
-
New Product 2024
-
Mobility:
-
Move by crawler
-
Max. Speed:
-
40 m/min
-
Torque:
-
3200 Nm
-
Max. rotation speed:
-
230 r/min
-
Pushing Force:
-
135KN
-
Pulling Force:
-
135KN
-
Maximum entry angle:
-
18°
-
Maximum flow rate of mud pump:
-
100 L/min
-
Engine power:
-
81KW
-
Application:
-
Construction works

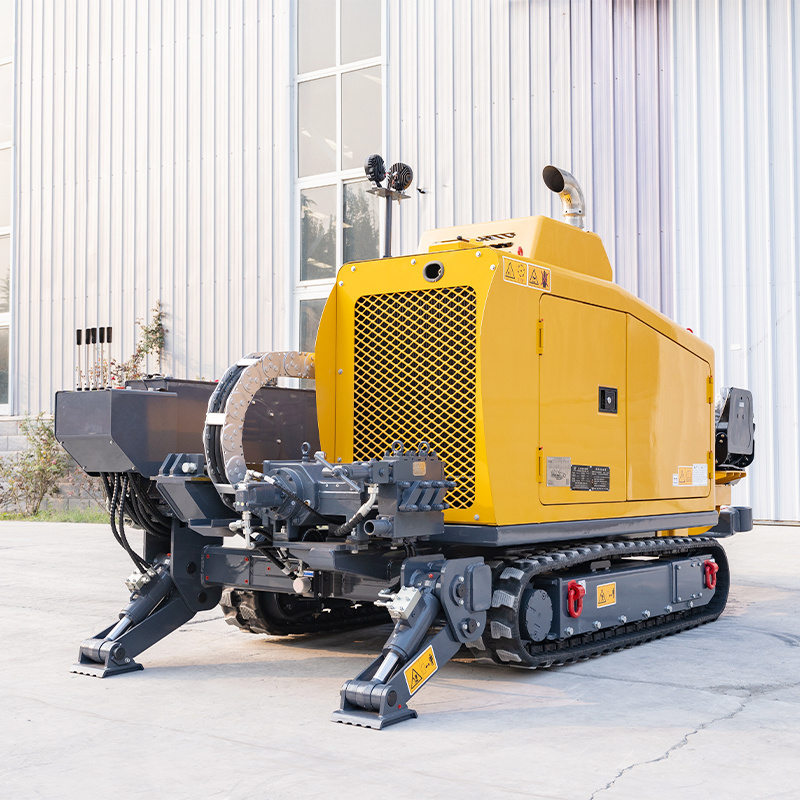

Hengwang mini Horizontal Directional Drilling Machine HWF130 Horizontal Directional Drilling Rig
The listing price is just deposit price and excluding freight fee. If you want to get the specific price, please contact me or send an inquiry, then we will send you formal quotation, thanks！
Product Description
Horizontal directional drill rig is driven with full hydraulic system, propelled with its own crawlers. Driven with duplex zero motors, the rotator could drill with two speeds with an advanced and compact structure, adopting chain feeding system driven by motor, the motor could move stably and reliably, the mast could be adjusted for the angle of drilling holes from 8°to 16°. The overall unit is in low center of gravity and good stability with graceful structure, an auxiliary crane equipped to the horizontal directional drill rig, a comfortable operation circumstance provided for the operator. Basing on the idea of purchasing internationally, the main matching parts and auxiliary equipments, such as diesel engine, hydraulic pumps, valves, motors, reducer and key hydraulic accessories are all adopted in famous brand at home and abroad.
Details Images
Product Paramenters
|
Specification for HWF130 Horizontal Directional Drilling Rig
|
|
|
|
Model
|
HWF130
|
|
|
Engine
|
Cummins
|
|
|
Dimensions（mm )
|
4200*1680*2170
|
|
|
Rated power（KW)
|
81
|
|
|
Rotary Speed（rpm)
|
2200
|
|
|
Pushing Force（KN）
|
135
|
|
|
Pulling Force（KN）
|
135
|
|
|
Torque（N·m )
|
3200
|
|
|
Maximum speed（r/min )
|
230
|
|
|
Maximum flow rate of mud pump（L/min )
|
100
|
|
|
Maximum entry angle（° )
|
18
|
|
|
Overall weight（kg)
|
5000
|
|
|
Drill pipe diameter（mm)
|
52/60
|
|
|
Drill pipe length（m )
|
1.8
|
|
The listing price is just deposit price and excluding freight fee. If you want to get the specific price, please contact me or send an inquiry, then we will send you formal quotation, thanks！
Wide range of use
