- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
450
-
Voltage:
-
220v or 380v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
boshi multi-function packaging machines
-
Model:
-
BS-350
-
Film width:
-
Max.350mm
-
Film thickness:
-
0.03-0.1mm
-
Bag width:
-
50-160 mm
-
Bag length:
-
65-190 mm, 90-220mm, or 150-330 mm
-
Product height:
-
40-60 mm
-
Packing speed:
-
40-180 bags/ min
-
Power:
-
2.6 KW
-
Machine dimensions:
-
4020*770*1450 mm
-
Machine weight:
-
680 kg
Quick Details
-
Function:
-
Wrapping, Labeling, counting
-
Packaging Type:
-
Bags, Film, Foil
-
Packaging Material:
-
Plastic, Paper
-
Weight (KG):
-
450
-
Voltage:
-
220v or 380v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
boshi multi-function packaging machines
-
Model:
-
BS-350
-
Film width:
-
Max.350mm
-
Film thickness:
-
0.03-0.1mm
-
Bag width:
-
50-160 mm
-
Bag length:
-
65-190 mm, 90-220mm, or 150-330 mm
-
Product height:
-
40-60 mm
-
Packing speed:
-
40-180 bags/ min
-
Power:
-
2.6 KW
-
Machine dimensions:
-
4020*770*1450 mm
-
Machine weight:
-
680 kg
Application
:

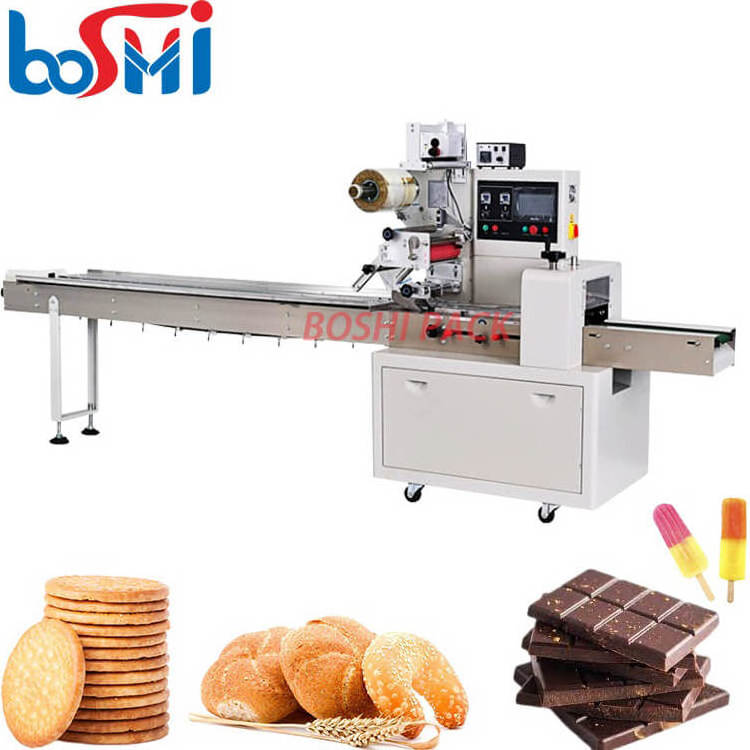

Machine suitable to pack bread, biscuits, popsicle, cakes, pies, chocolate, instant noodles, drugs, mask, gauze, daily products, hardware, scrubber, glove, meat, soap, charcoal, socks, baby diaper and other solid objects with regular size.
Technical parameters:
|
Model
|
BS-350
|
BS-450
|
BS-600
|
|
Packing speed
|
20-180 Bags/min
|
30-150 Bags/min
|
30-150 Bags/min
|
|
Support bag size
|
L(65-330)×W(50-165)×H(5-60)mm
|
L(130-450)×W(50-215)×H(5-75)mm
|
L(130-450)×W(50-215)×H(5-75)mm
|
|
Bag type
|
Pillow bag(back seal)
|
Pillow bag(back seal)
|
Pillow bag(back seal)
|
|
Film width
|
≤350mm
|
≤450mm
|
≤600mm
|
|
Film thickness range
|
30-80um
|
30-80um
|
30-80um
|
|
Power
|
220V 50HZ,2.6KW
|
220V 50HZ,2.8KW
|
220V 50HZ,3KW
|
|
Motor configuration
|
Full servo motors
|
Full servo motors
|
Full servo motors
|
|
Cutter moving type
|
Rotary cutter
|
Rotary cutter
|
Rotary cutter
|
|
Machine color
|
White/Red/Blue
|
White/Red/Blue
|
White/Red/Blue
|
|
Machine material
|
Frame-carbon steel,contact parts--stainless steel SUS304
|
Frame-carbon steel,contact parts--stainless steel SUS304
|
Frame-carbon steel,contact parts--stainless steel SUS304
|
|
Feeding conveyor
|
Chain /belt/pusher
|
Chain /belt/pusher
|
Chain /belt/pusher
|
|
Machine dimension
|
3770*770*1450 mm
|
4020*820*1450 mm
|
4020*920*1450 mm
|
|
Machine weight
|
580 kg
|
680 kg
|
750 kg
|
Touch screen
* English and Chinese screen display(Also support other languages)
* With many color mould , easy for debugging and adjusted any parameters
* PLC computer system
* Self-development program
Level sensor to feed automatically
* English and Chinese screen display(Also support other languages)
* With many color mould , easy for debugging and adjusted any parameters
* PLC computer system
* Self-development program
Level sensor to feed automatically
Bag former
* Adjusted bag former device
* Can make different bag width,for different width product no need to change bag former.One is enough to meet all the width.
* Adjusted bag former device
* Can make different bag width,for different width product no need to change bag former.One is enough to meet all the width.
End Seal Cutter Area
* Constant temperature heat sealing cutter is used to seal the front and rear ends of packaging products.
* Constant temperature heat sealing cutter is used to seal the front and rear ends of packaging products.
*
Angle inserting device is selected to make the bag beautiful and avoid
curling at the sealing position.
curling at the sealing position.
Install Film structure
* Motor Control Film Structure
* High quality grinding rollers,Pull evenly,more beautiful packaging
* Film position can be easily adjusted by hand shank
* Motor Control Film Structure
* High quality grinding rollers,Pull evenly,more beautiful packaging
* Film position can be easily adjusted by hand shank
Date printer
ink roll date printer
*Can print dates and letters
*Each line can print 15letters
*One ribbon roll have 100 metes,can print 20000 bags
ink roll date printer
*Can print dates and letters
*Each line can print 15letters
*One ribbon roll have 100 metes,can print 20000 bags
Output Conveyor
* Fully automatic finished product transfer,can transfer the finished product to the specified area, process automation.
* The length of the conveyor can be customized!
* Fully automatic finished product transfer,can transfer the finished product to the specified area, process automation.
* The length of the conveyor can be customized!
PRODUCT ADVANTAGES:
* Three servo motor version, high speed output, stable operation, saving time and film.
* Interface features easy and quick setting and operation.
* Self failure diagnosis, clear failure display.
*High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
* Temperature independent PID control, more suitable for packaging different materials.
* Positioned stop function, without sticking knife or wasting film.
* Simple driving system, reliable working, convenient maintenance.
* All control is realized through software, easy for function adjusting and technical upgraded.
