Quick Details
-
Voltage:
-
AC380V 50HZ/60HZ, 3 phase
-
Dimension(L*W*H):
-
2300mm* 1200mm* 1400mm
-
Weight:
-
800 kg
-
Marketing Type:
-
New Product 2021
-
Base Paper Requirements:
-
18-2g/m2 1ply, or 14-16g/m2 2ply
-
Base Paper Size:
-
1200mm* 460mm
-
Base Paper Core Diameter:
-
76.2mm
-
Embossing Unit:
-
Heating unit to make the wool roller flower more clear
-
Folding Unit Product Size:
-
230mm* 230mm± 2mm
-
Finished Product Folded Size:
-
115mm* 115mm± 2mm, 1/4 fold
-
Power Supply:
-
AC380V, 50HZ/60HZ, 3 phase
-
Folding Unit Speed:
-
0-200m/min, depends on the paper quality
-
Folding Unit:
-
Space between folding roller and guiding roller is adjustable
-
After Warranty Service:
-
Spare parts
Quick Details
-
Production Capacity:
-
0-200m/min, depends on the paper quality
-
Place of Origin:
-
China
-
Brand Name:
-
CND
-
Voltage:
-
AC380V 50HZ/60HZ, 3 phase
-
Dimension(L*W*H):
-
2300mm* 1200mm* 1400mm
-
Weight:
-
800 kg
-
Marketing Type:
-
New Product 2021
-
Base Paper Requirements:
-
18-2g/m2 1ply, or 14-16g/m2 2ply
-
Base Paper Size:
-
1200mm* 460mm
-
Base Paper Core Diameter:
-
76.2mm
-
Embossing Unit:
-
Heating unit to make the wool roller flower more clear
-
Folding Unit Product Size:
-
230mm* 230mm± 2mm
-
Finished Product Folded Size:
-
115mm* 115mm± 2mm, 1/4 fold
-
Power Supply:
-
AC380V, 50HZ/60HZ, 3 phase
-
Folding Unit Speed:
-
0-200m/min, depends on the paper quality
-
Folding Unit:
-
Space between folding roller and guiding roller is adjustable
-
After Warranty Service:
-
Spare parts

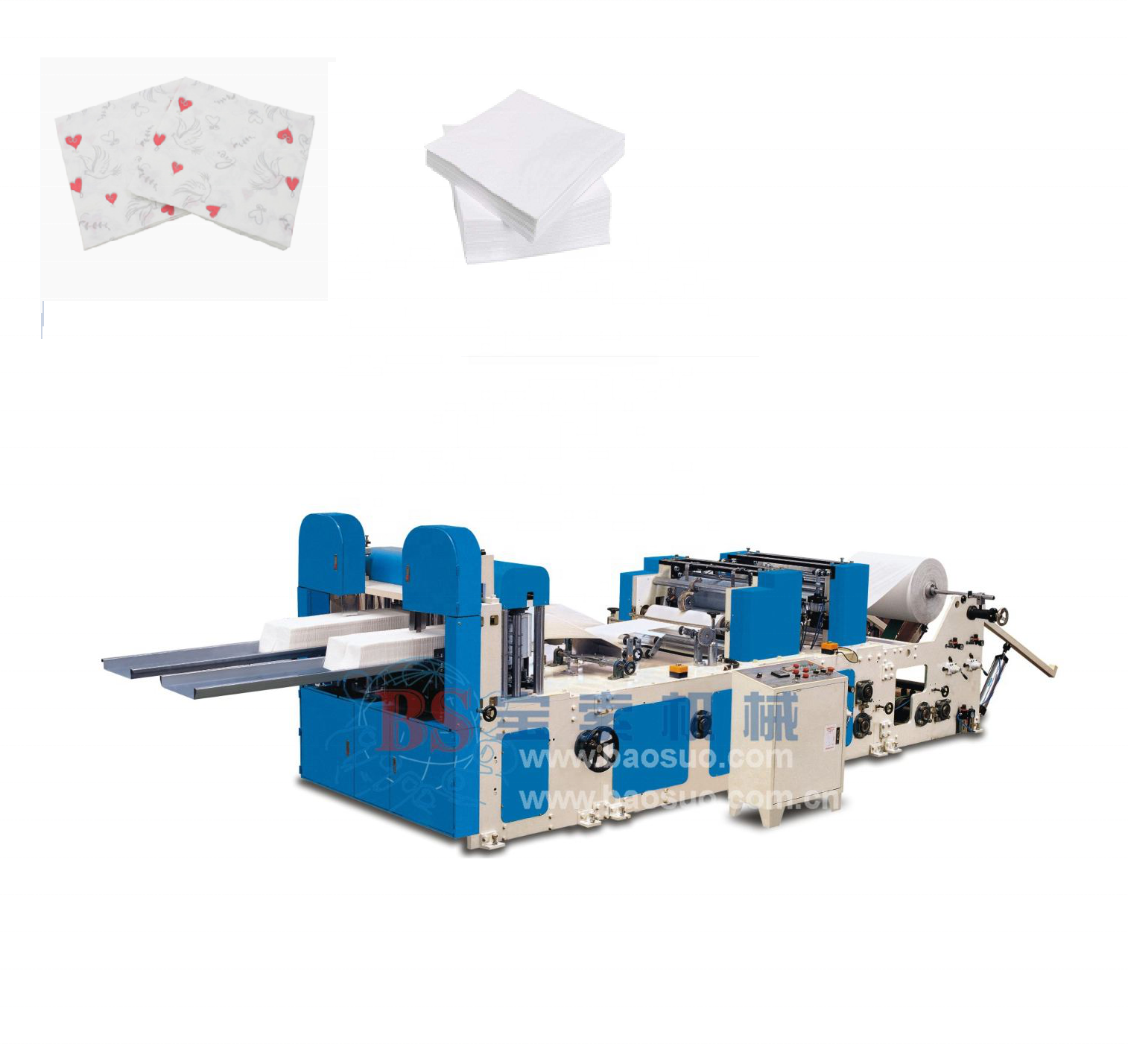

CND-CJ460-2L
NAPKIN FOLDING MACHINE
|
Model
|
CND-CJ460-2L NAPKIN FOLDING MACHINE
|
|
|
|
|||
|
NO.
|
Item
|
|
Technical Specification
|
|
|||
|
1
|
Base Paper Requirements
|
|
18-22g/m², 1 ply or 14-16g/m², 2 ply tissue paper
|
|
|||
|
2
|
Base Paper Size
|
|
φ1200mm× 460mm
|
|
|||
|
3
|
Base Paper Core Diameter
|
|
76.2mm
|
|
|||
|
4
|
Paper-feeding Part
|
|
1.) Flat belt delivery the paper, buffer cylinder control
2.) Manual tension adjusting device 3.) Pneumatic jumbo roll loading |
|
|||
|
5
|
Embossing Unit
|
|
1.) 1 set steel to wool full embossing roller, the flower patter should be fixed by two sides
2.) Heating unit to make the wool roller flower more clear
|
|
|||
|
6
|
Folding Unit
|
|
1.) Finished product unfold size: 230mm* 230mm± 2
2.) Finished product folded size: 115*115±2mm, 1/4 fold 3.) Space between folding roller and guiding roller is adjustable 4.) Band saw blade to cut 5.) Speed: 0—200m/min, depends on the paper quality 6.) Brush type electrostatic eliminator |
|
|||
|
7
|
Control Unit
|
|
1.) Automatic counting
2.) The machine will stop when the paper break 3.) Scramming device 4.) Power: AC 380V 50HZ/ 60HZ, 3 phase |
|
|||
* When the equipment is shipped, we will provide you with some wearing parts for free to ensure the normal operation of the equipment.
* After the equipment leaves the factory, we will provide one year of after-sales service. During this period, due to the failure of the design of the equipment, we will replace the parts for you for free. If the electrical parts have quality problems, we will replace them for free within one year.
* After one year, we will continue to provide after-sales service. If wearing parts and other parts need to be replaced, we will only charge for the cost.
Tissue Packing Line
PJ V Fold Production Line
Robot
Use Robot Working
Kitchen Towel
Kitchen Towel Production Line
Tissue Production
CND-200MJ + CND FZ15 Tissue Production Line
Kitchen Towel Packing Line
Kitchen Towel 1Roll/2Roll Packing
Paper Production Line
Toilet paper + Jomboo Roll + Tissue Production Line
Tisseu Converting Machine
YD, YC, YH, PF, MJ, BJ, ULTRA
Automatic Jumboo Roll Rewinder
Ultra-SR600, Ultra-SR1200
Embossed Facial Foldes
YH-2L, YH-4L, YH-5L, YH-6L
Towel Folders
MJ-N-3L, MJ-N-4L, MJ-N-5L
Slitting Rewinder
PF-A, PF-E
Full Automatic Tissue Rewinder Line
Ultra-YD-E-3,Ultra-YD-E-4, Ultra-YD-E-5
CND company is located in Dalian, China. Dalian is one of the most important international port cities in China and the international logistics center in east Asia.
CND focuses on design, R&D, production of industrial equipment and automatic equipment, and is committed to creating and providing a solution platform for the most professional automatic equipment, production line integration. CND can provide a technological package of specialized solutions and service process, especially in industrial equipment, household paper equipment, packaging equipment, protective equipment, new energy field etc.
CND has a wide range of service outlets at home and abroad, and has offices and after-sales service centers in South Korea and other countries, is recognized widely by domestic and foreign customers over the years. CND hopes to cooperate with you to create a better future.
Q1
:
How long does it take to produce the equipment?
A : Generally, it takes 25-60 days for small equipment and documents; and 90-120 days for production lines or large equipment.
Q2 : How to install the equipment after arrived? Will your company send us a technician?
A : Generally, it takes 25-60 days for small equipment and documents; and 90-120 days for production lines or large equipment.
Q2 : How to install the equipment after arrived? Will your company send us a technician?
A
: Yes, we will apply for a working visa for our technician while the equipment is shipped,then we will set out for the specific location of its country for equipment installation.
We will take videos of the equipment installation and operation, and offer you the equipment manual If our technician is unable to go under the exceptional circumstances (epidemic situation, visa rejection, isolation, etc.)
Q3
:
Can I put my Logo/ Brand on the machines and finish products?
A
: Sure, please just send us your artworks.
Q4
:
How can we know the quality of your machine?
A
: Customers can send material to us and then we use our machine to manufacture finished products which will be re-sent to customers.
Q5
:
Do you have after sale service?
A
: Yes, we provide one year warranty and technical support.
Q6
:
What if we can't come for inspection after the equipment is finished under special circumstances (epidemic situation, visa rejection, isolation, etc.)?
A
: We will provide you with taking the complete commissioning video and pictures of the equipment.
