Quick Details
-
Power (kW):
-
4
-
Weight (KG):
-
2000 KG
-
Function:
-
making different size of nails
-
Voltage:
-
380V(or as required)
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
After-sales Service:
-
Online support,Video technical support
-
Name:
-
Nail Making Machine
-
Product name:
-
Automatic Nail Making Machine
-
Keyword:
-
High Speed Nail Machine
-
Keywords:
-
Nail Production line
-
Advantage:
-
Efficiency,Low energy consumption, Low cost
Quick Details
-
Production Capacity:
-
300set/month
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HuaRui nail maker machine
-
Power (kW):
-
4
-
Weight (KG):
-
2000 KG
-
Function:
-
making different size of nails
-
Voltage:
-
380V(or as required)
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
After-sales Service:
-
Online support,Video technical support
-
Name:
-
Nail Making Machine
-
Product name:
-
Automatic Nail Making Machine
-
Keyword:
-
High Speed Nail Machine
-
Keywords:
-
Nail Production line
-
Advantage:
-
Efficiency,Low energy consumption, Low cost
Automatic Nail Making Machine ,Wire Nail Making Machine , Nail Production Line
Keywords
:
(Nail making machine ,Automatic n
ail making machine ,
Wire nail making machine , Iron nail making machine , Steel nail making machine , Nail making line , Nail production line , Nail production machine , Nail cutting machine , Nail polishing machine , Nail washing machine , Nail maker ,Automatic Nail machine )
Working Flow
Wire-Rod---Nail Making Machine---Nail Polishing machine---Finished Nails
Wire-Rod---Wire Drawing Machine ---Nail Making Machine---Nail Polishing machine---Finished Nails
Wire Drawing Machine
|
Model No.
|
LS-Single
|
LS2-560
|
LS3-560
|
LS4-560
|
LS5-560
|
LS6-560
|
||||||
|
Maxim Inlet Wire Diameter
|
6.5mm
|
6.5mm
|
6.5mm
|
6.5mm
|
6.5mm
|
6.5mm
|
||||||
|
Minimum Outlet Wire Diameter
|
2.0mm
|
2.0mm
|
2.0mm
|
2.0mm
|
2.0mm
|
2.0mm
|
||||||
|
Drawing speed
|
56r/min
|
135m/min
|
150m/min
|
175m/min
|
205m/min
|
230m/min
|
||||||
|
Remarks: machine comes with Descaling device and Discharging device.
|
|
|
|
|
|
|
||||||
Auxiliary Equipment of Wire Drawing Machine
Pointing Rolling Machine
Function:
This is pointing rolling machine, used to sharpen the head of the wire, then it can enter the wire drawing machine.
Butt Welding Machine
Function:
Used to weld two wires coil together. When one wire coil finish drawing, this machine can connect the next wire coil to continue to be drawn by the wire drawing machine.

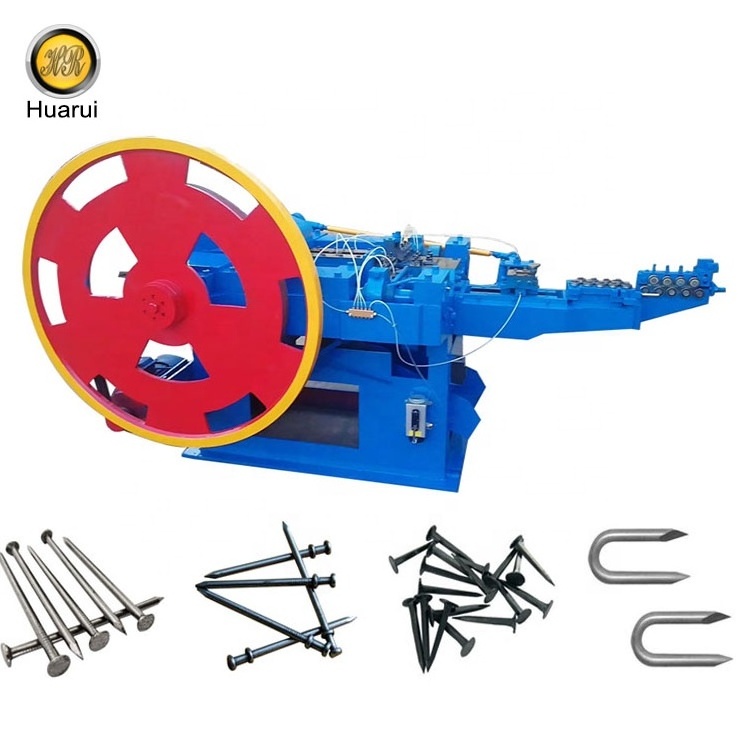

Automatic Nail Making Machine
Function: This machine adopts piston structure to ensure the high working speed, low noise and less chance of impact
characteristics, especially can make excellent quality YouMao nail and other special-shaped nail which are suitable for high speed studs for welding machine and nail gun.
characteristics, especially can make excellent quality YouMao nail and other special-shaped nail which are suitable for high speed studs for welding machine and nail gun.
|
Model No.
|
Nail diameter
|
Nail length
|
Motor power
|
Working speed
|
Overall dimension
|
Machine weight
|
|
Z94-1C
|
0.9-1.6mm
|
9-25mm
|
1.5kw
|
450pcs/min
|
1.5*1.3*1.2m
|
0.8ton
|
|
Z94-2C
|
1.2-2.8mm
|
16-50mm
|
2.2kw
|
380pcs/min
|
1.7*1.3*1.4m
|
1.15ton
|
|
Z94-3C
|
1.6-3.5mm
|
25-75mm
|
3.0kw
|
320pcs/min
|
2.0*1.4*1.4m
|
1.35ton
|
|
Z94-4C
|
2.8-4.5mm
|
30-100mm
|
4.0kw
|
260pcs/min
|
2.2*1.6*1.65m
|
1.8ton
|
|
Z94-4C(2)
|
2.8-5.0mm
|
50-120mm
|
4.0kw
|
260pcs/min
|
2.32*1.55*1.3m
|
2.1ton
|
|
Z94-5.5C
|
3.5-5.5mm
|
75-150mm
|
5.5kw
|
220pcs/min
|
2.5*1.6*1.5m
|
2.15ton
|
|
Z94-5C(2)
|
3.0-6.5mm
|
80-220mm
|
5.5kw
|
130pcs/min
|
3.1*1.7*1.65m
|
2.7ton
|
|
Z94-6C
|
3.0-8.0mm
|
80-220mm
|
7.5kw
|
130pcs/min
|
3.1*1.7*1.65m
|
4.5ton
|
|
Z94-6C(2)
|
4.0-8.0mm
|
80-220mm
|
11kw
|
160pcs/min
|
3.22*1.82*1.5m
|
4.5ton
|
|
Z94-6C(3)
|
5.0-10.0mm
|
150-320mm
|
11kw
|
160pcs/min
|
3.32*1.75*1.55m
|
4.6ton
|
|
Z94-8A
|
5.0-10.0mm
|
180-320mm
|
22kw
|
120pcs/min
|
6*2.1*1.9m
|
10ton
|
|
HR-7112A
|
3.0-5.5mm
|
150-350mm
|
7.5kw
|
80pcs/min
|
2.9*1.6*1.7m
|
3.15ton
|
|
HR-7112B
|
4.0-8.0mm
|
150-350mm
|
7.5kw
|
60pcs/min
|
3*1.75*1.8m
|
5.5ton
|
|
HR-300
|
2.5-4.5mm
|
150-300mm
|
5.0kw
|
60pcs/min
|
3.1*1.6*1.55m
|
2.35ton
|
|
HR-400
|
3.0-6.5mm
|
150-400mm
|
5.5kw
|
60pcs/min
|
3.1*1.6*1.55m
|
3.0ton
|
|
HR-500
|
3.0-6.5mm
|
150-500mm
|
5.5kw
|
60pcs/min
|
3.1*1.6*1.55m
|
3.0ton
|
Nail Polishing Machine
|
Model
|
Motor power
|
Overall size
|
Capacity of nails
|
|
SD-400
|
2.2kw
|
1.64*0.9*1.0m
|
400kg
|
|
SD-600
|
3kw
|
2.0*1.0*1.4m
|
600kg
|
|
SD-1000
|
5.5kw
|
2.0*1.5*1.5m
|
1000kg
|
|
SD-2000
|
7.5kw
|
2.5*2.1*2.0m
|
2000kg
|
Clients Visiting
FAQ
Q1. Why do we choose Huarui M
achinery?
A1. We are very professional manufacturer of high quality screw making machines and we can provide a reasonable screw production line according to customers' demand.
Q2. Are you trading company or manufacturer?
A2. We are manufacturer with nearly 30 years experience. and 13 years exporting experiences.
Q3. Have you exported your machines to overseas market?
A3. Yes, we have exported our machines to Uzbekistan, Kyrgyzstan, Kazakhstan, Indonesia, Russia, Egypt, India, Viet Nam, Thailand,Pakistan, Algeria and so on.
Q4. Is there any quality warranty ?
A4. Yes, the warranty of mechanical portion of the equipment shall be 2 years.
Q5. How to choose the machines?
A5. Please tell us the screw size and type that you want to produce, we will recommend the most suitable machine models to you.
Q6. What is the raw material should we use?
A6. To make nails, usually use the common iron material , like Q195 ,Q235 ..
Q7. What's the delivery time?
A7. It is depending on your order quantity, usually we aim to deliver your order within 30 days.
Q8. How do you pack the machines?
A8. Wrapped film packing in full container. Wooden Frame or Wooden Case packing in LCL.
Q9. What's your payment terms?
A9. 40% TT deposit before production, 60% TT balance before shipment.
Q10. What is your MOQ ?
A10. 1 set of any machine model.
A1. We are very professional manufacturer of high quality screw making machines and we can provide a reasonable screw production line according to customers' demand.
Q2. Are you trading company or manufacturer?
A2. We are manufacturer with nearly 30 years experience. and 13 years exporting experiences.
Q3. Have you exported your machines to overseas market?
A3. Yes, we have exported our machines to Uzbekistan, Kyrgyzstan, Kazakhstan, Indonesia, Russia, Egypt, India, Viet Nam, Thailand,Pakistan, Algeria and so on.
Q4. Is there any quality warranty ?
A4. Yes, the warranty of mechanical portion of the equipment shall be 2 years.
Q5. How to choose the machines?
A5. Please tell us the screw size and type that you want to produce, we will recommend the most suitable machine models to you.
Q6. What is the raw material should we use?
A6. To make nails, usually use the common iron material , like Q195 ,Q235 ..
Q7. What's the delivery time?
A7. It is depending on your order quantity, usually we aim to deliver your order within 30 days.
Q8. How do you pack the machines?
A8. Wrapped film packing in full container. Wooden Frame or Wooden Case packing in LCL.
Q9. What's your payment terms?
A9. 40% TT deposit before production, 60% TT balance before shipment.
Q10. What is your MOQ ?
A10. 1 set of any machine model.
