Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Dimension(Long * Breadth * High):
-
1727x1627x1753
-
Warranty:
-
half a year
-
Machine Weight:
-
680 kg
-
Bucket capacity:
-
0.5
-
dimensions:
-
1727*1676*1753mm
-
digging depth:
-
559mm
-
blade angle:
-
30 degree
-
tree ball:
-
600-900mm
-
working flow:
-
37 L/min
-
pressure:
-
16 Mpa
-
max. tree diameter:
-
850mm
-
weight:
-
680kg
Quick Details
-
Engine Brand:
-
CHANGCHAI
-
Power:
-
75 KW, 37 KW, 15.7 kw, 55 kw, 70 KW
-
Brand Name:
-
HCN
-
Place of Origin:
-
Jiangsu, China
-
Dimension(Long * Breadth * High):
-
1727x1627x1753
-
Warranty:
-
half a year
-
Machine Weight:
-
680 kg
-
Bucket capacity:
-
0.5
-
dimensions:
-
1727*1676*1753mm
-
digging depth:
-
559mm
-
blade angle:
-
30 degree
-
tree ball:
-
600-900mm
-
working flow:
-
37 L/min
-
pressure:
-
16 Mpa
-
max. tree diameter:
-
850mm
-
weight:
-
680kg
Product Description & Applications:

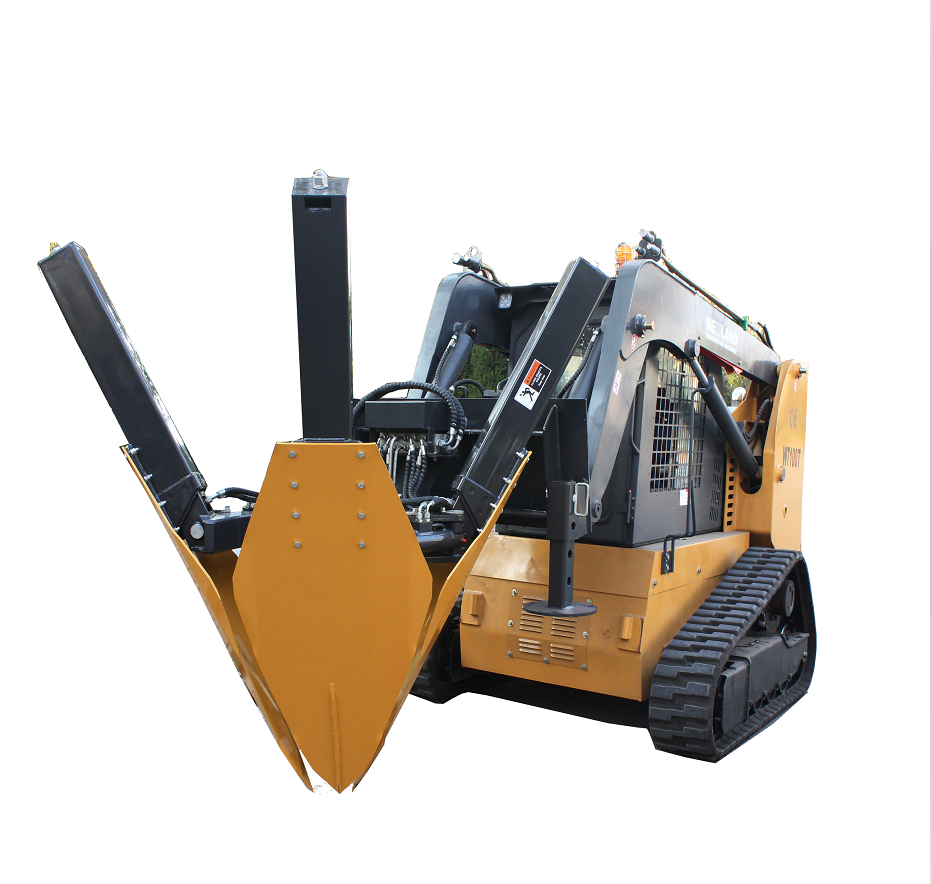

he HCN Skid Steer 3-blade Hydraulic Tree Spade features abrasion-resistant Hardox steel blades that operate at a 30° angle with opposite configuration for the easy clean-cut removal and transportation of your trees. It cuts a root ball 36” in diameter at a depth of 27.5” with a spade opening of 22” that can accommodate various tree types ranging approximately 4 to 6 feet height.
Featuring removable blades that are easy to sharpen and/or replace, as well as an enclosed heavy gauge frame that provides rear stabilization and heavy down-pressure support, this machine has been designed to help safely cut down on heavy labour-intensive work.
Features:
Abrasion-resistant Hardox 450 steel blades guarantee toughness, bendability, and weldability
Opposite blade configuration offers complete clean-cut and root ball support
Removable blades for easy sharpening and replacement
Enclosed heavy gauge frame design provides firm rear stabilization and heavy down-pressure support
Wide blade opening provides easy designated tree access/exit
Hydraulic hoses, flat-faced couplers, and controls included
Two height-adjustable kickstands
Greaseable pin fittings
Universal skid steer mount
Specifications:
Overallsize:72” (L)x70” (W) x 72” (H)
Operating weight: 1500 lb
Capable of moving trees: 4 to 6 feet (approx.)
Max. root cutting capacity: 4”
Max. balldiameter: 36”
Max. balldepth: 27.5”
Max. ball weight: 1250 lb
Blade quantity: 3
Max. blade opening: 22”
Blade cylinder stroke: 28”
Swing cylinder stroke: 4.5”
Hardox 400 steel blades:
Hardness: 370-430 HBW
Thickness: 8 mm
Bladesangle: 30°
Flowrate:16-21 US GPM
Pressurerange:1740-3045 PSI
Packaging:
Packed in a metal shipping crate
Shipping dimension: 82” x 77” x 50”
Shippingweight: 1700 lb
Skid steer tree spade tree transplanter attachment for sale Descriptions:
|
Model
|
050324
|
050336 | 050344 |
| Overall length (mm) | 1320 | 1991 | 1974 |
| Overall width (mm) | 1676 |
2027
|
1692
|
| Overall height (mm) | 1320 |
1491
|
1994
|
| Digging Depth D(mm) | 500 |
747
|
787
|
| Maximum Gate Opening(mm) | 80 | 160 | 240 |
| Blades Angle(°) | 25 | 25 | 25 |
| Working flow(L/min) | 12-21 | 12-21 | 12-21 |
| Operating Pressure ( MPa ) | 16 | 16 | 16 |
| Fit Tree Diameter (mm) | 30-60 | 50-100 | 70-120 |
| Weight(Kg) | 545 | 816 | 981 |
skid steer tree spade tree transplanter attachment for sale Picture shows:
tree spade on machines at working condition:
More Detailed Photos:
Professional Package:
Customer Visiting:
HCN Tree Spade is the leading manufacturer of Tree Spades. Not only do we custom build Tree Spades, but we also produce top quality equipment for all of your other nursery needs, including Truck Spades, Tree Tyers and the Tree Rex.
Here at HCN ATTACHMENTS, we pride ourselves in producing top of the line Tree Spades, and other tree transplanting equipment, to meet the demands of the nursery industry. We manufacture equipment on our 1000+ acre nursery and our focus as always is to build equipment that we know works rather than building equipment that we think will work.
