Quick Details
-
Voltage:
-
220 V or 380 V
-
Dimensions:
-
1700*710*650 mm
-
Rated Duty Cycle:
-
100%
-
Weight (KG):
-
120 KG
-
Product name:
-
Reflow Oven machine
-
Heat Zone Numbers:
-
3 Zones
-
Heat Method:
-
Infrared
-
Length of Heating Zones:
-
1000 mm
-
Cooling Zone Numbers:
-
Two Natural Air Cooling
-
Working Power:
-
2 KW
-
Heating up Time:
-
About 30 mins
-
Range of Temperature Control:
-
Indoor Temperature --- 400 Degrees
-
Method of Temperature Control:
-
PID Close Cycle Control
-
Net Weight:
-
120 kg
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HUAQIZHENGBANG
-
Use:
-
smt production line
-
Voltage:
-
220 V or 380 V
-
Dimensions:
-
1700*710*650 mm
-
Rated Duty Cycle:
-
100%
-
Weight (KG):
-
120 KG
-
Product name:
-
Reflow Oven machine
-
Heat Zone Numbers:
-
3 Zones
-
Heat Method:
-
Infrared
-
Length of Heating Zones:
-
1000 mm
-
Cooling Zone Numbers:
-
Two Natural Air Cooling
-
Working Power:
-
2 KW
-
Heating up Time:
-
About 30 mins
-
Range of Temperature Control:
-
Indoor Temperature --- 400 Degrees
-
Method of Temperature Control:
-
PID Close Cycle Control
-
Net Weight:
-
120 kg
Product Details
Product Description
Desktop Reflow Oven
ZBRF series reflow soldering machine use M type stainless steel drye wxpansion evaporator heating tube anti corrosion and high temperature, longer serve life, high heat efficiency. Cooperating with hot air circulation system, the heat storage structure allows the heat to be fully used. The multi-layered heat insulation structure minimizes the loss of heat. Temperature is control by the PID close-cycle which provide high precision temperature control.
|
Product name
|
|

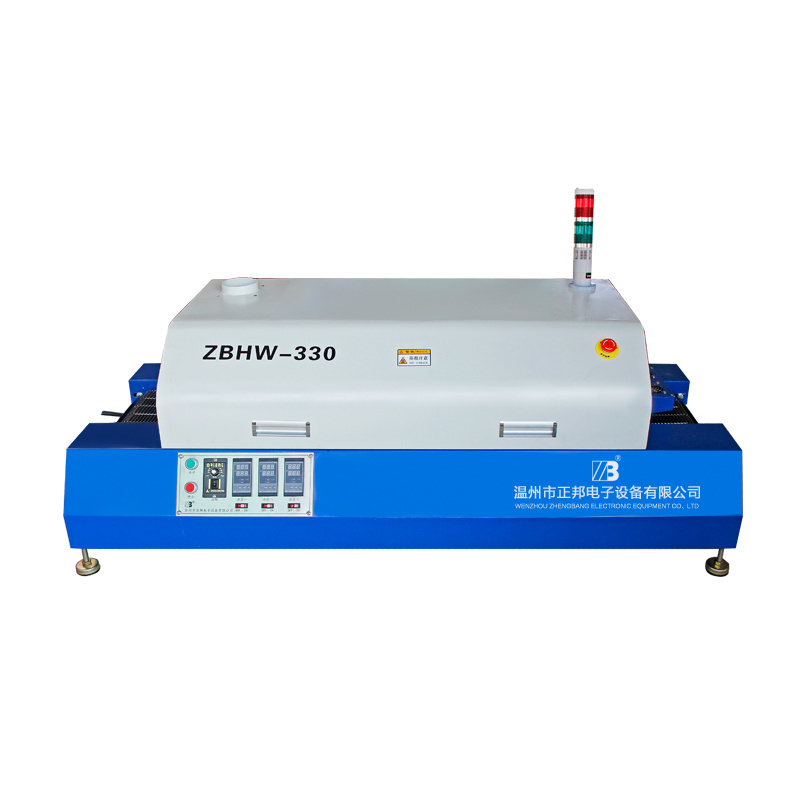

Infrared line Five solder reflow machine
|
|
|
|||
|
Model
|
|
ZBHW-330
|
|
|
|||
|
Heating method
|
|
Infrared line heating
|
|
|
|||
|
Number of cooling zones
|
|
Two natural wind cooling
|
|
|
|||
|
Length of heating zones
|
|
1000mm
|
|
|
|||
|
Height of net belt
|
|
280±20mm
|
|
|
|||
|
Width of net belt
|
|
300mm
|
|
|
|||
|
PCB size
|
|
900±20mm
|
|
|
|||
|
Transport Direction of Net Belt
|
|
Left -> Right (Right -> Left)
|
|
|
|||
|
Transport Speed of Net Belt
|
|
0-2000mm/min
|
|
|
|||
|
input power supply
|
|
AC220V/AC380Vall ok
|
|
|
|||
|
starting power
|
|
6kw
|
|
|
|||
|
Working power
|
|
2kw
|
|
|
|||
|
Time of passing through the machine
|
|
3.5-5.5min
|
|
|
|||
|
Temperature control method
|
|
PID closed cycle control
|
|
|
|||
|
Temperature Control Range
|
|
Indoor temperature-400 °C
|
|
|
|||
|
Heating time
|
|
About 15mins
|
|
|
|||
|
Outline size
|
|
1700*715*670mm
|
|
|
|||
|
Weight of body machine
|
|
131kg
|
|
|
|||
FAQ
Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.
Q: What's the way of shipping?
A: These are all heavy machines; we suggest you use cargo ship. But components for mending the machines, air transportation would be fine.
Q: How is the training?
A: After buying our machines, your engineers can go to our company or our engineers go to your factory if require, and we will train them how to use these machines.
Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
Q: Does you machines have quality certificate?
A: All of our machines have passed CE certificate, ISO14001(BCC), ISO9001(IQNET) and
have own patent.
Q: How about the warranty?
A: We support one year warranty( The nozzle with a warranty of 1 months; belt with a warranty of 3 months ). We will regularly update the software for customers. If there is any doubt in the process of operating the machine, pls feel free contact us. We will help you in time.
All the spare parts will be provided free of charge for you within the warranty period.
Recommend Products
About Us
Wenzhou Zhengbang Electronic Equipment Co., Ltd was established 2006, located in Ouhai Zone,Wenzhou,China,which is a professional manufacturer specializing in research,development, production, marketing and service of soldering welding machines.
We are the leader of soldering machines supplier, our main products are Solder Paste Mixer, Silk Screen Printing Machines, Pick And Place Machine, Reflow Oven, Heating Plate, Dip Soldering Machines, SMT Inspection Conveyor, SMT upper and bottom stock frames, Turnover Cart, Feeder, Nozzles, Soldering Pot, PCB cutting machine, Sharpen Machine and so on. Most our products have passed CE certification and lots of products got patent.
Our products have won a good reputation all over the world, We’re sincerely looking forward to serving you in the nearest future.
