Quick Details
-
Filling Accuracy:
-
±0.5%
-
Voltage:
-
380V 50Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GMK
-
Dimension(L*W*H):
-
L1650*W1250*H1750(mm)
-
Weight:
-
500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service
-
Name:
-
semi-auto cartridge fiilling machine
-
Product name:
-
BZD-300
-
Function:
-
manual put cartridge
-
Filling material:
-
sealant
-
Capacity:
-
about 30 cartridges/min
-
Usage:
-
semi-auto
-
Bottle type:
-
Plastic Bottle
-
Certification:
-
ISO
Quick Details
-
Machinery Capacity:
-
Other
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Other
-
Filling Accuracy:
-
±0.5%
-
Voltage:
-
380V 50Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GMK
-
Dimension(L*W*H):
-
L1650*W1250*H1750(mm)
-
Weight:
-
500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service
-
Name:
-
semi-auto cartridge fiilling machine
-
Product name:
-
BZD-300
-
Function:
-
manual put cartridge
-
Filling material:
-
sealant
-
Capacity:
-
about 30 cartridges/min
-
Usage:
-
semi-auto
-
Bottle type:
-
Plastic Bottle
-
Certification:
-
ISO

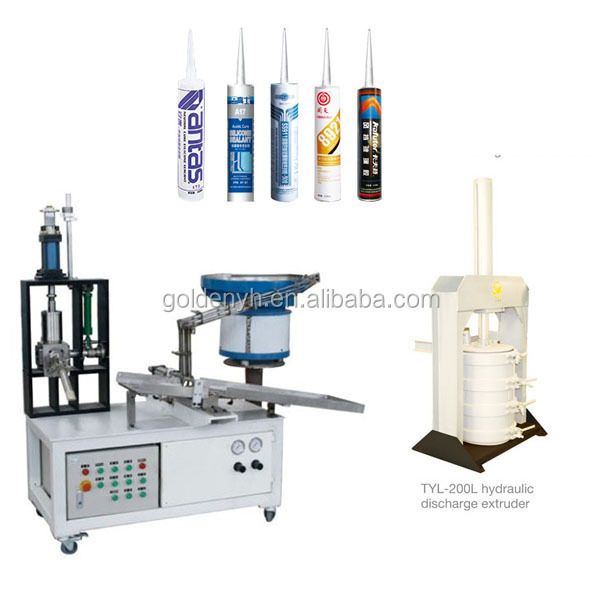

Semi-auto multifunction cartridge filling machine
BZD-300 semi-automatic cartridge filling machine can be used packaging with direct connection with sealant mixing chamber. After manual tube feeding and automatic filling and automatic machine capping, and it is ready for packaging. This machine has built-in measuring cylinder, with the advantages of ease of adjustment and precise measuring. The pipeline connecting with pressure feeder outlet adopts special joint and hose for ease of changing color and reducing material loss.
Characteristics
1) Automatic conveying plugs
2) Adjust filling volume by hand (automatic metering)
3) Automatic plugging and exhausting air
Main Technical Configuration
|
No. |
Name |
Model & Spec. |
Brand and Place of Origin |
|
1 |
Hydraulic system-pump, valve |
|
YUKEN, doflnid |
|
2 |
Hydraulic system- air cooler |
AH0608T-CA |
Deernuo |
|
3 |
Pneumatic system-valve, meter, air cylinder |
|
AirTAC, SNS |
|
4 |
Bearing |
|
NSK |
|
5 |
Oil seal |
|
Sealtech |
|
6 |
PLC |
|
Japan Omrom |
|
7 |
All parts contacting with material are made of stainless steel. |
||
|
8 |
Lubrication Grease |
Special grease for high speed bearing |
Mobile |
l Filling speed: 30 cartridges/min
l Filling capacity: 250ml-320ml ( ±2ml )
l Filling capacity measurement error: ±0.5%
l Cartridge volume: 300ml
l Mucilage consistency : 75-100
l Total power:4KW
l Compressed air : 0.4 ~ 0.8Mpa Air consumption : 0.1M 3 /min
l Power : AC , 3 phase 4 wire , 380v/50hz
l Dimension : 1650 ×1250×1750 ( mm )
l Weight : About 500 kgs
Specifications
Delivery details: 2 months after your deposit.
Package details: Export standard package
