Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XRDR
-
Dimension(L*W*H):
-
Custom Size, Custom Size
-
Weight:
-
1.3 KG
-
Working Temperature Range:
-
100 - 200 ℃, 100 - 300 ℃
-
Product name:
-

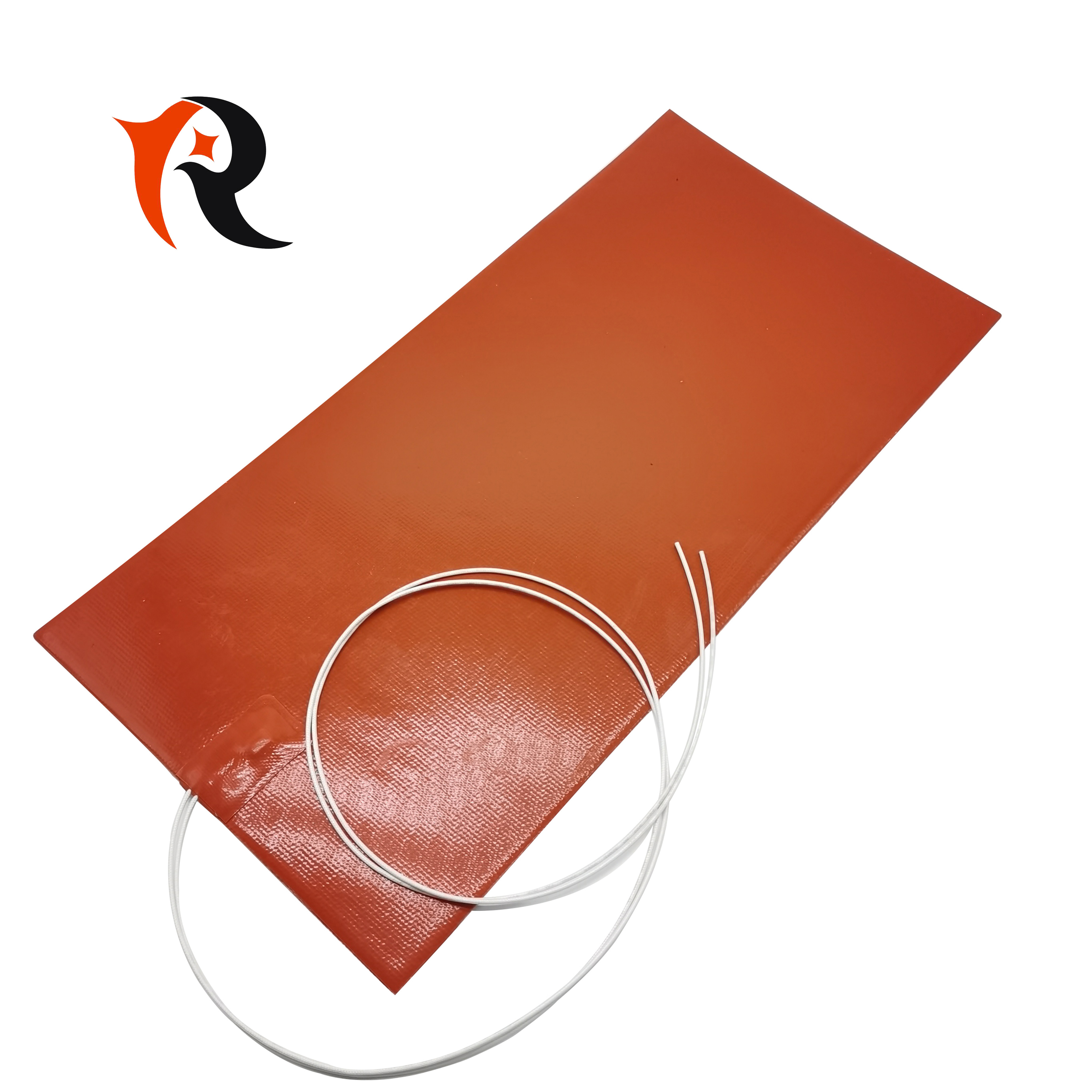

flexible silicone heating pad 48V silicone rubber heater for battery
-
Thermocouple:
-
with or w/o
-
Heating material:
-
etched metal foil
-
Insulation Material:
-
Silicone rubber
-
Showroom Location:
-
None
Quick Details
-
Type:
-
Flexible Heater
-
Power Source:
-
Electric
-
Voltage:
-
220V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XRDR
-
Dimension(L*W*H):
-
Custom Size, Custom Size
-
Weight:
-
1.3 KG
-
Working Temperature Range:
-
100 - 200 ℃, 100 - 300 ℃
-
Product name:
-
flexible silicone heating pad 48V silicone rubber heater for battery
-
Thermocouple:
-
with or w/o
-
Heating material:
-
etched metal foil
-
Insulation Material:
-
Silicone rubber
-
Showroom Location:
-
None
|
Technical Parameters
|
|
|
|
Size
|
Rectangle (Lenght*Width), Round (Diameter), or provide the drawings
|
|
|
Shape
|
Round, Rectangle, Square, any shape according to your requirement
|
|
|
Voltage Range
|
1.5V~40V
|
|
|
Power density range
|
0.1w/cm2 - 2.5w/cm2
|
|
|
Heater size
|
10mm~1000mm
|
|
|
Thickness of Heaters
|
1.5mm
|
|
|
Using temperature range
|
0℃~180℃
|
|
|
Heating Material
|
Etched nickel chrome foil
|
|
|
Insulation Material
|
Silicone Rubber
|
|
|
Lead wire
|
Teflon, kapton or silicone insulated leads
|
|
|
Features
* The silicone rubber heaters have advantage of thinness, lightness and flexibility;
* The silicone rubber heater can improve heat transfer, accelerate warming and decrease power under the process of operation;
* Fiberglass reinforced silicone rubber stabilizes the dimension of heaters; * The silicone rubber heater's max wattage can be made for 1 w/cm²; * The silicone rubber heater's can be made for any size and any shapes. |
|
|
Rocomand Types
Parameters for Oil Tank and Gas Tank
|
Product Name
|
Size
|
Voltage/Power
|
Weight
|
Drum Diameter
|
|
200L Drum heater
|
250*1740mm
|
220V/2KW(3KW)
|
1.6KG
|
580mm
|
|
200L Drum heater
|
125*1740mm
|
220V/1KW
|
0.85KG
|
580mm
|
|
20L Drum heater
|
200*860mm
|
220V/800W
|
0.75KG
|
300mm
|
|
15KG Gas tanker
|
100*970mm
|
220V/300W
|
0.55KG
|
310mm
|
|
50KG Gas tanker
|
100*1250mm
|
220V/350W
|
0.6KG
|
400mm
|
|
50KG Gas tanker
|
180*1250mm
|
220V/500W
|
0.9KG
|
400mm
|
Accessories for Silicone Rubber Heater
Buying Guides
① You can have your forwarder to arrange transportation.
② We support TNT, UPS, FedEX, DHL, SF Express and EMC.
③ All of our heating element are customized as your working environment. Please advise voltage, power, size and application to help us give you a moderate price and professional service.
Application of Silicone Rubber Heater
Yancheng Xinrong Electronic Technology Co.,Ltd have been engaged in design and manufacturing of industrial heating system, Our company have advanced production lines and testing equipment, who supply clients high quality goods, as well as professional R&D
department and service team, who provide customers best heating solutions. Our products have been exported to Europe, America, Asia, Mid East etc. more than 200 countries. We supply different heating element, heating equipment, and temperature measurer.
Adhering to "Quality Best, Customer First and Honesty" business philosophy, the company and domestic and foreign partner make
progress together to create a better future.
department and service team, who provide customers best heating solutions. Our products have been exported to Europe, America, Asia, Mid East etc. more than 200 countries. We supply different heating element, heating equipment, and temperature measurer.
Adhering to "Quality Best, Customer First and Honesty" business philosophy, the company and domestic and foreign partner make
progress together to create a better future.
