product name:
-
voltage transmitter
-
Primary measuring range:
-
0-1500V
-
rated output:
-
(0)4~20mA;0~5V;0~10V;Customization
-
Load Capacity:
-
Voltage output:5mA; Current output:6V
-
Linearity:
-
0.2%;0.5%
-
response time:
-
<200ms
-
certificate:
-
FCC,CE,RoHS,ISO
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Qidian
-
Model Number:
-
JXDA4U
-
product name:
-
voltage transmitter
-
Primary measuring range:
-
0-1500V
-
rated output:
-
(0)4~20mA;0~5V;0~10V;Customization
-
Load Capacity:
-
Voltage output:5mA; Current output:6V
-
Linearity:
-
0.2%;0.5%
-
response time:
-
<200ms
-
certificate:
-
FCC,CE,RoHS,ISO

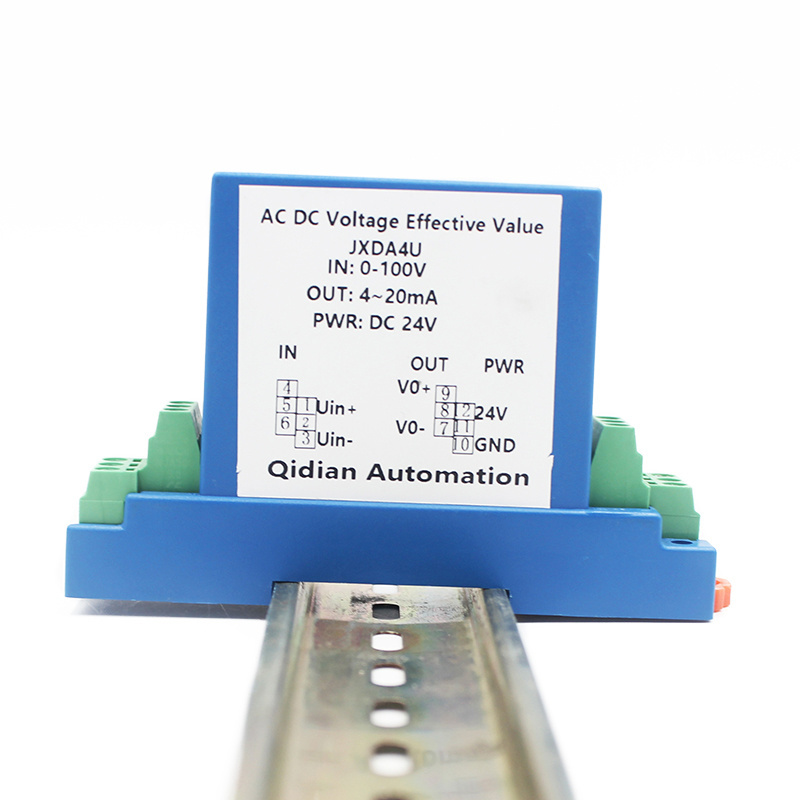

JXDA4U 0-1000V DC Voltage Direct Current Signal Tranducer Analog Galvanic Signal Transmitter
Introduction
<1>. JXDA4U is used to measure AC and DC voltage, especial for the irregular input waveform, or the frequency of input signal varies greatly.
<2>. Wide selection of input&output signal and power supply. Input voltage from 10mV~1000V, output signal can be AC0~5V or AC0~10V at ±12V or ±15V.
<3>. Adopting electromagnetic isolation and optocoupler isolation, strong anti-interference ability.
<4>. High quality terminals, easy connection.
Technical Transmeter
|
Input |
|
| Original side rated current |
10mV;20mV;75mV;1V;10V;50V;100V;500V;800V;1000V |
| Original side measuring range |
20mV~1200V |
| Output | |
| Rated output | (0)4~20mA;0~5V;0~10V;Customization |
| Load capacity |
Voltage output:5mA; Current output:6V |
| Other Parameters | |
| Installation | Standard DIN rail + Plane screw fixation |
| Power supply | DC12V; DC24V; DC±12V; DC±15V |
| Accuracy | <200mS |
| Linearity | 0.1% |
| Accuracy |
0.2%; 0.5% |
| Overload capacity | Double nominal input,sustainable |
| Temperature drift | ≤500PPM/℃ |
| Band width | DC |
| Consumption of current | <25mA+output current |
| Isolation withstand voltage | 1kV;3kV/50Hz,1Min |
| Offset Voltage | ≤10mV |
| Working temperature | -10~+70℃ |
|
Ambient Conditions |
-25~+85℃ |
