- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
RVP42-9M
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JUTAI
-
Theory:
-
Motion Activation Sensors
-
Output:
-
2 Relays output
-
Power supply:
-
12-28VAC, 12-36VDC
-
Frequency:
-
24.125GHz
-
Power:
-
<20dBm
-
Detection height:
-
2m to 9m
-
Angle adjustment:
-
0-180 degree longutudinal
-
Detection Speed:
-
5 cm/s to 25km/s
-
Detection Area(30 degree angle):
-
3.0m*3.5m @ height: 2m; 6.5m*8.5m @ height: 9m
-
Working current:
-
Max.75mA
-
Power frequency:
-
50hz
-
Protection grade:
-
IP65
Quick Details
-
Use:
-
for automatic door
-
Mounting Type:
-
rack mounting
-
Description:
-
Detail in manual, Activation & Safety Sensors
-
Model Number:
-
RVP42-9M
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JUTAI
-
Theory:
-
Motion Activation Sensors
-
Output:
-
2 Relays output
-
Power supply:
-
12-28VAC, 12-36VDC
-
Frequency:
-
24.125GHz
-
Power:
-
<20dBm
-
Detection height:
-
2m to 9m
-
Angle adjustment:
-
0-180 degree longutudinal
-
Detection Speed:
-
5 cm/s to 25km/s
-
Detection Area(30 degree angle):
-
3.0m*3.5m @ height: 2m; 6.5m*8.5m @ height: 9m
-
Working current:
-
Max.75mA
-
Power frequency:
-
50hz
-
Protection grade:
-
IP65
Product Description
24GHz Microwave Radar Sensor
The RVP42-9M is a high-performance motion radar detector for vehicle detection and human detection, specially developed for industrial doors, garage doors, cold storage doors, road gates, and other industries. It is with dual relays of vehicle-detection and pedestrian-detection, and can also open the corresponding relay output as needed. Meanwhile, RVP42-9M has a recognition and filtering function for horizontally moving vehicles or pedestrians.
Specification
|
Model Number
|
RVP42-9M
|
|
Type
|
Motion Radar Sensor
|
|
Usage
|
for automatic door
|
|
Theory
|
Motion Activation Sensors
|
|
Output
|
2 Relays output
Max.48 VAC/DC. Max.current 1A
|
|
Description
|
Activation & Safety Sensors
|
|
Power supply
|
12-28VAC, 12-36VDC
|
|
Frequency
|
24.125GHz
|
|
Power
|
<20dBm
|
|
Detection height
|
2m to 9m
|
|
Angle adjustment
|
0-180 degree longutudinal
|
|
Detection Speed
|
5 cm/s to 25km/s
|
|
Detection Area(30 degree angle)
|
3.0m*3.5m @ height: 2m; 6.5m*8.5m @ height: 9m
|
|
Working current
|
Max.75mA
|
|
Power frequency
|
50hz
|
|
Working temperature
|
-30 to +60
|
|
Protection grade
|
IP65
|
|
Relative humidity
|
0％ to 95％, no condensation
|
|
Dimension
|
162mm*110mm*65mm
|
|
Cable length
|
7m
|
|
Weight
|
400g
|
Functions
Detection Area
The microwave range offers a narrow or wide detection area that makes it suitable for all types of installations. The narrow setting is easy to set by simply clicking the narrow lens on to the radar module. By turning the module left or right and tilting it up and down the microwave can be adjusted quickly and easily for many different applications. No external set-up device is needed. Adjust the detection area with Sensitivity potentiometer.
Dual Relays Outputs
It is a fully customizable, hands-free radar motion sensor equipped with dual relays:

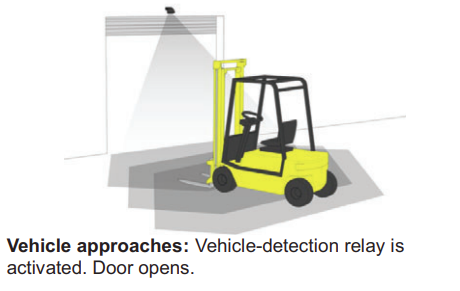

Vehicle-detection relay active
Person-detection relay active
Vehicle-detection relay and person-detection relay both active
The below setting shows only active the vehicle-detection mode, not for person-detection. it can be set according to your project requirement.
Vehicle-detection relay active
Person-detection relay active
Vehicle-detection relay and person-detection relay both active
The below setting shows only active the vehicle-detection mode, not for person-detection. it can be set according to your project requirement.
Direction Recognition
It can be set the direction detection:
1. motion forward and close to the sensor
2. backward movement away from the sensor
3. Forward and backward.
2. backward movement away from the sensor
3. Forward and backward.
Applications
Factory entrances
Pedestrian and parallel traffic rejection
Parking garage detection
Barrier arm activation
Diagram Connection
