Quick Details
-
Product name:
-
EV Charging dual Type 2 Plug with 5 M cables
-
Application:
-
Charging Electric Car Charging Cable
-
Certificate:
-
CE ROHS
-
Rated Current:
-
16A / 32A
-
Warranty:
-
12 Months
-
Cable length:
-
Customized
-
Rated Power:
-
3.5kw/7 KW/11kw/22kw
-
Color:
-
Customized Color
-
Connector:
-
Type-1/Type-2/CHAdeMO/GBT
-
Rated Output Power:
-
3.5kw/7 KW ev charging cable
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
FYE24/FYE25/FYE26
-
Brand Name:
-
Feyree
-
Product name:
-
EV Charging dual Type 2 Plug with 5 M cables
-
Application:
-
Charging Electric Car Charging Cable
-
Certificate:
-
CE ROHS
-
Rated Current:
-
16A / 32A
-
Warranty:
-
12 Months
-
Cable length:
-
Customized
-
Rated Power:
-
3.5kw/7 KW/11kw/22kw
-
Color:
-
Customized Color
-
Connector:
-
Type-1/Type-2/CHAdeMO/GBT
-
Rated Output Power:
-
3.5kw/7 KW ev charging cable
Recommend Products
Feyree EV charging cable type 2 to type 2 /GBT/ type 1 fast electric car ev charger charging cables 16A/32A for charging station
Product Paramenters
|
Main features:
|
|
|
|
|
||||
|
Input power
|
|
110V-240V
|
|
|
||||
|
Charging current
|
|
8/10A/13A/16A adjustable. (Use the same current to charge your car next time.)
|
|
|
||||
|
Output power
|
|
3.5kw-7kw-11kw-22 KW
|
|
|
||||
|
Protection level
|
|
IP66 (working state) ev charging cable
|
|
|
||||
|
Mechanical life
|
|
plugging and unplugging>10000 times
|
|
|
||||
|
Contact bushing
|
|
copper alloy, silver plated
|
|
|
||||
|

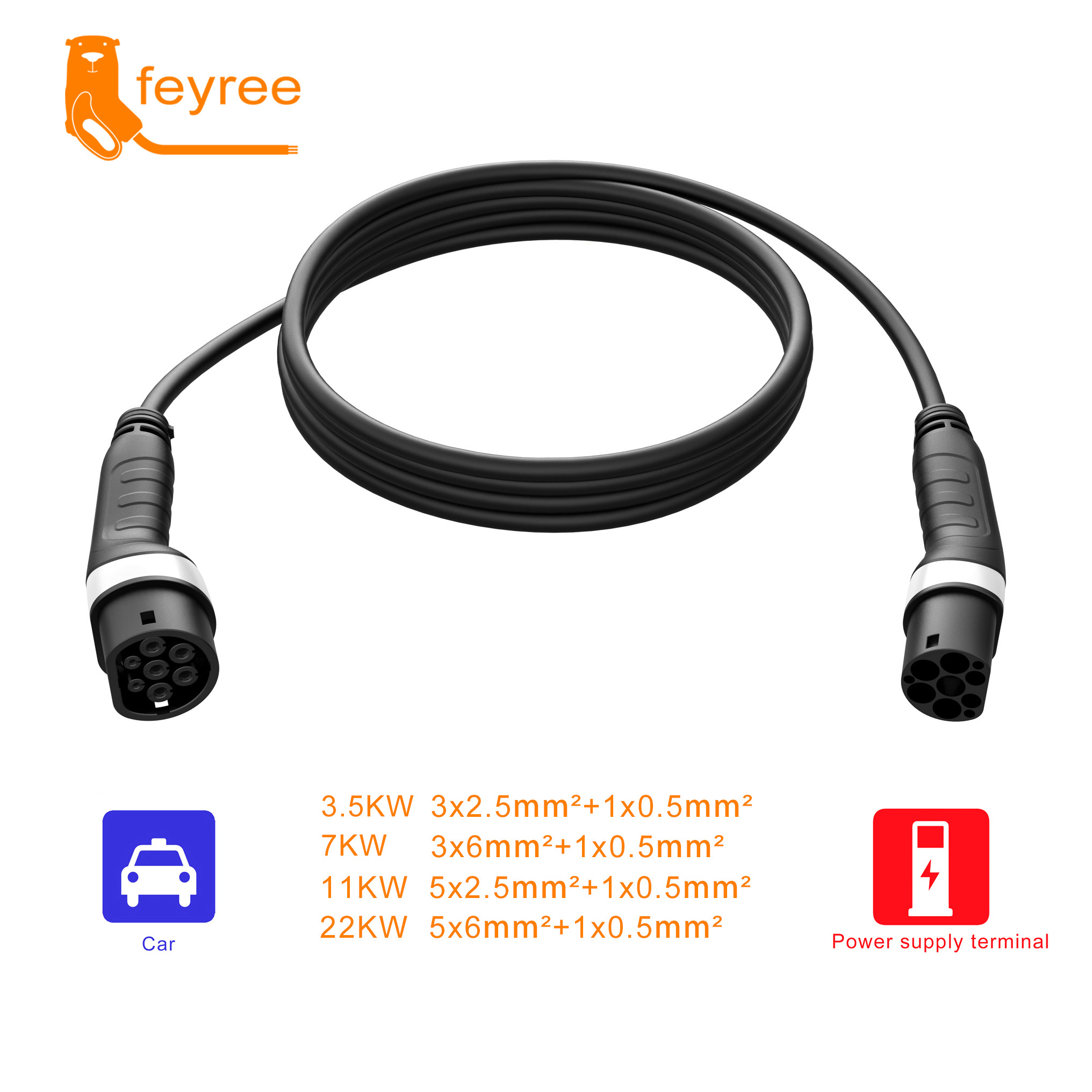

Cable Paramater
|
|
16A/1P 3.5KW 3G 2.5mm² + 1*0.5mm²
32A/1P 7KW 3G 6mm² + 1*0.5mm²
16A/3P 11KW 5G 2.5mm² + 1*0.5mm²
32A/3P 22KW 5G 6mm² + 1*0.5mm²
|
|
|
||||
|
Cable lenght
|
|
5M Customizable
|
|
|
||||
|
Models
|
|
Type 2 to Type 2 white
Type 2 to Type 1
Type 2 to Type 2 black
Type 2 to GBT
|
|
|
||||
|
Operating temperature
|
|
-30 °C ~ + 55 °C
|
|
|
||||
Details Images
Products Description
Features:
• Dual Charging plug meet TYPE 2 IEC 62196-2 / type 1 standard
• Excellent protection performance, protection grade IP55, it can keep EV connector working even if use in a rainy day - Working condition
• Laboratory simulation experience -30 degrees of low temperature to 55 degrees of high temperature
Packing list:
1 x charging plug with 5m cable
1 x user's manual
1 x certificate of approval
• Dual Charging plug meet TYPE 2 IEC 62196-2 / type 1 standard
• Excellent protection performance, protection grade IP55, it can keep EV connector working even if use in a rainy day - Working condition
• Laboratory simulation experience -30 degrees of low temperature to 55 degrees of high temperature
Packing list:
1 x charging plug with 5m cable
1 x user's manual
1 x certificate of approval
