Quick Details
-
Model Number:
-
NCT-100
-
Measuring result:
-
10 times per eye
-
Working distance:
-
≥11mm
-
Display mode:
-
10.1-inch HDMI color LED touch screen
Quick Details
-
Warranty:
-
18 months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Nova
-
Model Number:
-
NCT-100
-
Measuring result:
-
10 times per eye
-
Working distance:
-
≥11mm
-
Display mode:
-
10.1-inch HDMI color LED touch screen
Features:
Auto tonometer utilizes image control and feature recognition for auto 3-D positioning of xyz with reliable judgment and measurement results, and easy to operate. The air non-contact approach to measure IOP can also be used for corneal thickness.

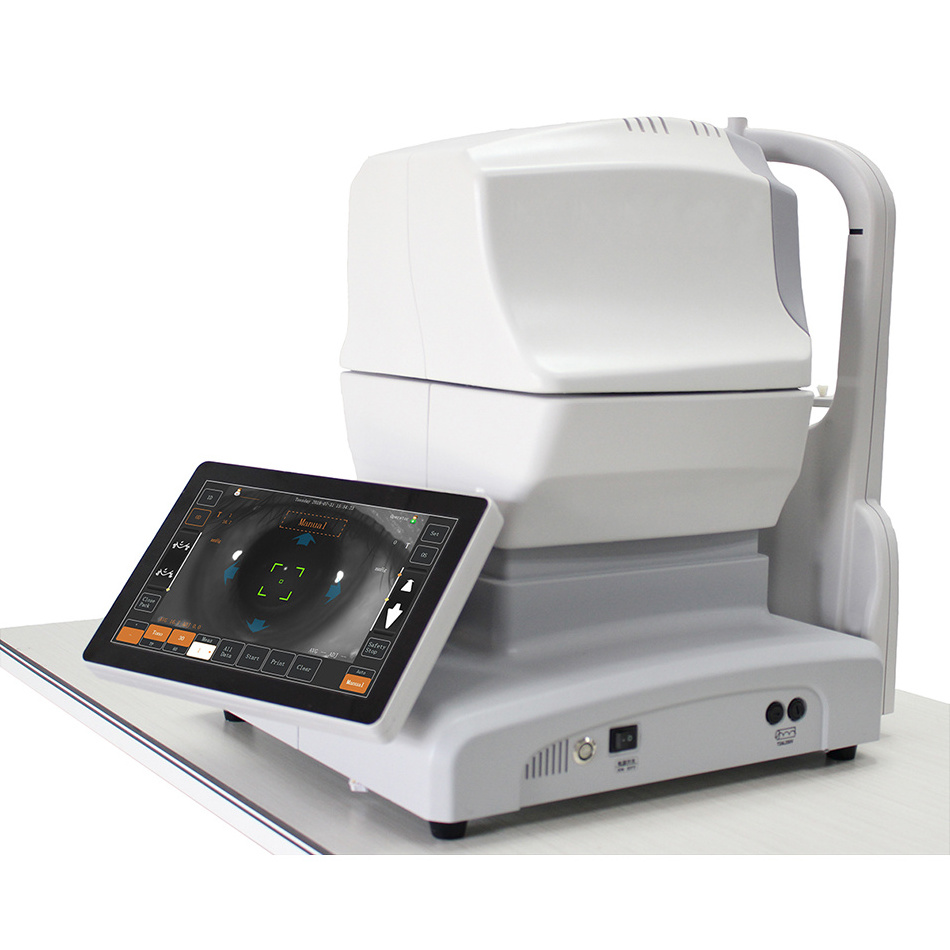

NCT-100 Ophthalmic Air Puff Non Contact Tonometer:
NCT-100 air puff tonometer is a non contact tonometry machine for intraocular pressure (IOP) test. This machine is simple and easy to operate, and you can get test results within 10 seconds. Contactless measurement will reduce injuries or infections on eyes.
Performance:
1. Auto 3-D positioning of xyz results in precise and reliable measurement.
2. Full-auto measurement for both right and left eye data without manual switch.
3. Easy to operate the tonometer with color touch monitor.
4. Stable data of IOP through soft air measurement .
5. To compensate corneal thickness measurement of IOP.
Specifications
|
Intraocular pressure (IOP) measuring range
|
1mmHg~ 30mmHg /1mmHg ~60mmHg ( precision of 1mmHg)
|
|
Measuring system
|
dual sensor system of light and pressure
|
|
Working distance
|
≥11mm
|
|
R/L
|
automatic detection and display
|
|
Measuring result
|
10 times per eye; 3 times result printing per eye
|
|
Recording
|
build-in printer
|
|
Measuring mode
|
auto/manual
|
|
Focus
|
when luminous spot is in the focus frame, 2 modes can be chosen.
auto mode: auto intraocular pressure measurement
manual mode: when it's good focus, the frame will turn yellow into green, and click to start the measurement
|
|
Error indication
|
if the measurement signal is weak, the IOP will be enclosed by ( ), or display "ERR "
|
|
Safety limit button
|
install measurement for minimum distance between head and patient
|
|
Safety functions
|
the distance between air nozzle and cornea
is controlled in preset range(such as 11mm);
it will stop going forward when the cornea is
too closed to air head.
|
|
Movement range
|
≥30mm(front to back)/ 90mm(left to right)/ 30mm(vertical)
|
|
Jaw layer vertical movement
|
0~65mm with under jaw layer
|
|
Display mode
|
10.1-inch HDMI color LED touch monitor
|
|
Output port
|
USB2.0
|
|
Working platform
|
electric elevating platform
|
|
Weight
|
19.7kg
|
|
size
|
380 mm (L) x 460mm (W) x 505mm (H)
|
|
Power supply
|
220V/50HZ
|
