Quick Details
-
Output Speed:
-
2.2-90KW, 0.19-60r/min
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ever-power
-
precision grade:
-
6-8 (ISO1328),100%tested
-
Housing materia:
-
Iron casting
-
material of internal:
-
42CrMo
-
Material of gearbox:
-
20CrMnTi Planetary Gearbox
-
Weight:
-
0.145-6.5T
-
Export Area:
-
Russia, Southeast Asia, India,South Africa, Australia
-
Reduction Stages:
-
up to 5 Stages Planetary Gearbox
-
input:
-
In-line, right-angle
-
Keyword:
-
Planetary Gearbox
Quick Details
-
Gearing Arrangement:
-
Planetary
-
Output Torque:
-
160000
-
Input Speed:
-
1450/960rpm, accordingly
-
Output Speed:
-
2.2-90KW, 0.19-60r/min
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ever-power
-
precision grade:
-
6-8 (ISO1328),100%tested
-
Housing materia:
-
Iron casting
-
material of internal:
-
42CrMo
-
Material of gearbox:
-
20CrMnTi Planetary Gearbox
-
Weight:
-
0.145-6.5T
-
Export Area:
-
Russia, Southeast Asia, India,South Africa, Australia
-
Reduction Stages:
-
up to 5 Stages Planetary Gearbox
-
input:
-
In-line, right-angle
-
Keyword:
-
Planetary Gearbox
Products Description
Feature:

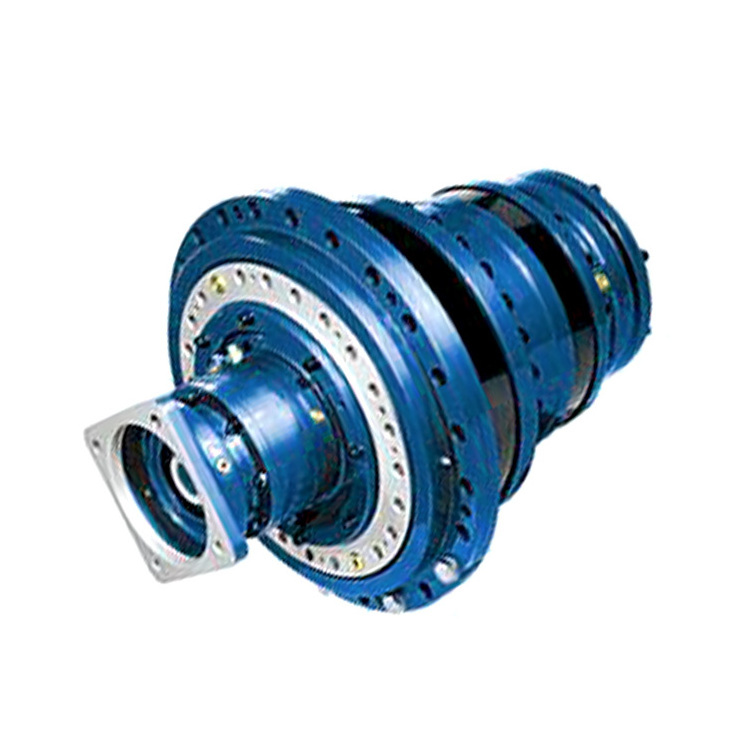

1.P series planetary gear reducer adopts new open line planetary gear transmission, which makes rational use of internal and external combination and power split. Therefore, it has the characteristics of light weight, small volume, large transmission ratio, high efficiency, smooth operation, low noise and strong adaptability.2.The box body is made of nodular iron, which greatly improves the efficiency.The column property and anti-seismic property of the box body.3.Programming mode: concentric shaft input, helical gear input, bevel gear helical gear input, bevel gear input4.Output mode: inner flower field type, hollow shaft shrink disc type, outer flower field type, solid shaft flat field type5.Installation form: horizontal installation, vertical installation and torsion installation.6.P series products have 9-34 type specifications, planetary transmission stage has 2 and 3. The speed ratio is 254000.Modular design, according to customer requirements to change the combination.7. Combinate with R ,K series can get larger speed ratio
If you need to customize, please click here
|
Speed ratio range
|
basic type 25 ~ 4000
|
|
torque range
|
2.6 ~ 900knm
|
|
power range
|
22 ~ 1920kw
|
|
Installation form:
|
1. Horizontal installation / foot installation 2. Vertical installation / flange installation 3. Torsion arm installation.
|
|
Output mode
|
1. Hollow output shaft with shrink disc 2. Solid output shaft with flat key 3. Hollow shaft with involute spline 4. Solid shaft with involute spline
|
For more models or customization, please click here!
