T4 Pro Advantages :
1 . Nest software: Millbox
2. position: 4
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
M6
-
Model Number:
-
T4 Pro Mill
-
Product name:
-
dental lab milling machine
-
Usage:
-
dental emax crown veneer inlays onlays
-
milling type:
-
Wet milling
-
Coolant type:
-
Water cooling
-
Burs seats:
-
6
-
LCD screen size:
-
10.4 inch
-
Spindle Speed:
-
60000
-
Nesting software:
-
MillBox
-
Burs shank diameter:
-
6mm
-
nest software:
-
Millbox
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Onsite Installation
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
M6
-
Model Number:
-
T4 Pro Mill
-
Product name:
-
dental lab milling machine
-
Usage:
-
dental emax crown veneer inlays onlays
-
milling type:
-
Wet milling
-
Coolant type:
-
Water cooling
-
Burs seats:
-
6
-
LCD screen size:
-
10.4 inch
-
Spindle Speed:
-
60000
-
Nesting software:
-
MillBox
-
Burs shank diameter:
-
6mm
-
nest software:
-
Millbox
Product Paramenters
|
Size
|

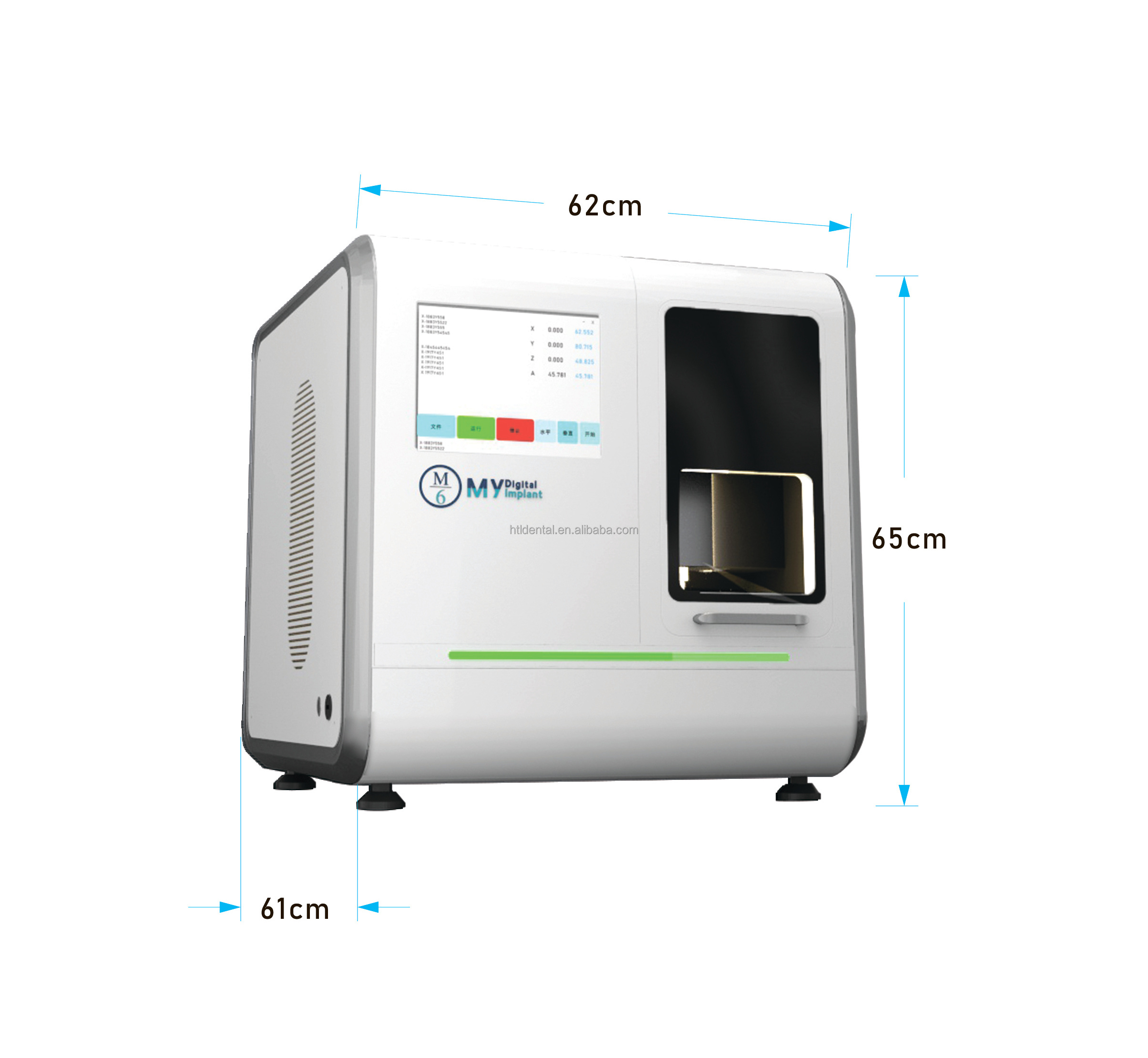

610(W)x610(L)x630(H)mm
|
|
Weight
|
135KG
|
|
Travel
|
110mm(X),135mm(Y),75mm(Z)
|
|
Tilt angle
|
360°（A）
|
|
Power supply
|
Singe phase,AC 220V,50Hz
|
|
Max Power
|
2.8KW
|
|
Air pressure
|
6 bar and above
|
|
Drive motors
|
servo motor
|
|
Position Precision
|
±0.005mm(XYZ),±0.001rad(A)
|
|
Number of axes
|
4
|
|
Spindle power
|
1.8KW
|
|
Spindle speed
|
5000~60000rpm
|
|
Max feeding rate
|
6000mm/min(XYZ)
|
|
Milling bur positions number
|
6
|
|
Milling bur handle diameter
|
6mm
|
|
Milling bur length
|
50±1mm
|
Millable material & products
Emax material
Emax material
could mill emax crown, veneer,inlays and onlays
Holder for Emax block
with 4 positions
Precision
Three different size milling bur to process emax products
Milling time
it will cost 15~20min to mill a job
Nest software
Millbox nesting software
Original Millbox comes with machine
Nest the designed emax product in Millbox
nest in Millbox and get .nc format file
language available
different language available for Millbox
CS
DE
EN-US
EN
ES
FR
HU
IT
JA
KO
PL
PT-BR
RU
CH
Air pressure requirement
Air pressure should be ≥6bar
to make sure the machine could mill, we need to keep the air pressure above 6bar
Methods to send NC file from PC to Mill
Two ways to transfer NC file from computer to milling machine
1. via USB
2. via local area network
Packing and Shipping
After-sales Service
1. Machine installation guide
we will help you to install the machine step by step via video, and will check everything before formal milling
2. Millbox software installation and authorization guide
we will help you to install and authorize Millbox if you dont know how to do that
we will help you to set up right setting and parameter if you don't know how to do that
one year warranty
you could contact us if you meet any problem when using our machine, our team will help
