High-quality Vertical Cylinder Honing Machine THM170

High-quality Vertical Cylinder Honing Machine THM170

FOB Reference Price: Get Latest Price

≥1 Sets

US $8000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 1400

Power (kW):: 1.5

Machine Type:: Hydraulic Scrap Shears

warranty period:: one year

After-sales Service Provided:: Video technical support

After Warranty Service:: Video technical support

Quick Details

Place of Origin:: China

Brand Name:: AMCO

Voltage:: 220V/380V

Weight (KG):: 1400

Power (kW):: 1.5

Machine Type:: Hydraulic Scrap Shears

warranty period:: one year

After-sales Service Provided:: Video technical support

After Warranty Service:: Video technical support

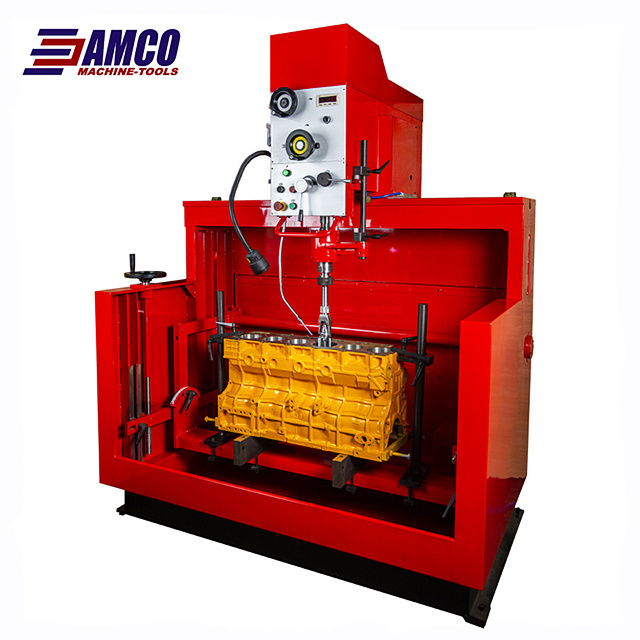

Vertical Cylinder Honing Machine THM170

Features:

1. Hydraulic vertical honing machine with head provided with pneumatic system for an easy honing spindle longitudinal and transversal positioning on the workpiece.

2. The block supporting base is adjustable in the height and inclination to allow the assembling of flat and "V"blocks.

3. Honing spindle with steplessly variable ratation speed visualized on the control panel.

Specification	Unit	THM170
Max. dia. of the hole honed	mm	φ170
Max. depth of the hole honed	mm	360
Spindle speed(stepless)	r.p.m	100-300
Roundness	mm	0.0025
Cylindricity	mm	0.005
Surface roughness		Ra0.2
Table longitudinal travel	mm	1100
Table cross travel	mm	80
Table max. loading	kg	200
Main motor	kw	1.1
Hydraulic station motor	kw	1.5
Coolant pump motor	w	90
Spindle reciprocation speed(stepless)	m/min	0-18
Overall dimensions(LxWxH)	mm	1800x1300x2200
Packing dimensions(LxWxH)	mm	2220x1640x2290
N.W/G.W	kg	1200/1400
