Quick Details
-
Voltage:
-
220V/380V
-
Disc Dia.:
-
Customers Request
-
No Load Speed:
-
0.35m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OBC
-
Model Number:
-
E1
-
Warranty:
-
18 months, 1 Year
-
Usage:
-
OBC-E1 auto painting oven for sale
-
Filters:
-
High Efficiency Filter
-
Lighting System:
-
24pcs 16w LED Lamp
-
Thickness of panel:
-
50 mm/75mm
-
Color:
-
Cutomized
-
Environmental certificate:
-
CE Approved
-
Product:
-
OBC-E1 auto painting oven for sale
-
Panel Material:
-
EPS
-
Heating System:
-
electrical heating
-
Certification:
-
ce
Quick Details
-
Power:
-
30.5KW
-
External Size:
-
7050*5050*3200mm
-
Internal Size:
-
6900*3900*2600mm
-
Voltage:
-
220V/380V
-
Disc Dia.:
-
Customers Request
-
No Load Speed:
-
0.35m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OBC
-
Model Number:
-
E1
-
Warranty:
-
18 months, 1 Year
-
Usage:
-
OBC-E1 auto painting oven for sale
-
Filters:
-
High Efficiency Filter
-
Lighting System:
-
24pcs 16w LED Lamp
-
Thickness of panel:
-
50 mm/75mm
-
Color:
-
Cutomized
-
Environmental certificate:
-
CE Approved
-
Product:
-
OBC-E1 auto painting oven for sale
-
Panel Material:
-
EPS
-
Heating System:
-
electrical heating
-
Certification:
-
ce

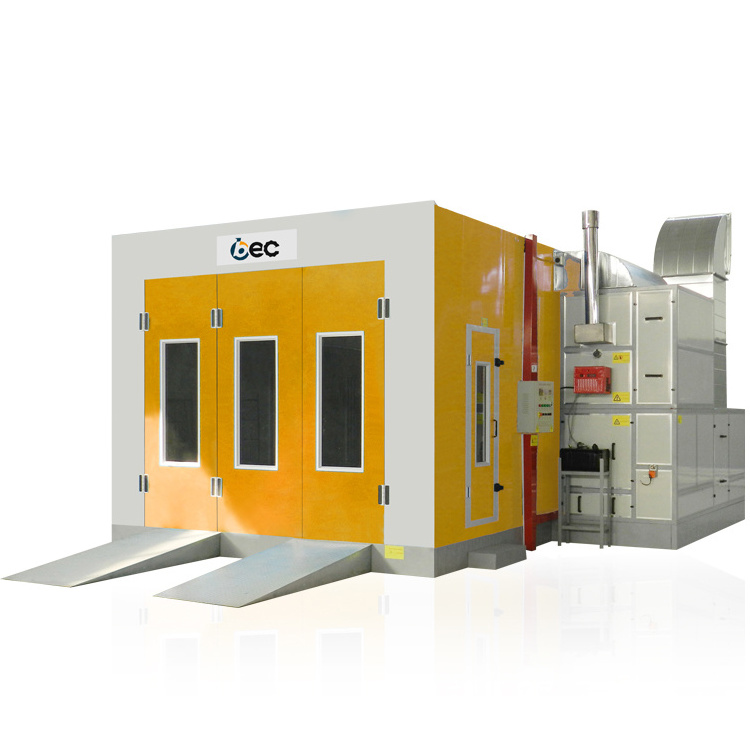

high quality mobile spray booth for pickup car
1.C onfiguration for oven bake automotive outdoor car painting booth for sale:
|
Outside size |
7050×5050×3200mm(L×W×H) |
||
|
Inside size |
6900×3900×2600mm(L×W×H) |
||
|
Entrance door |
3 folds door , 3000×2500mm ,main doors with galvanized covered frame. equipped with Handle & Lock. |
||
|
Emergency door |
1fold ,600×2000mm(W×H). Equipped with Handle & Anti-Explosion Lock . |
||
|
Main System |
|||
|
Cabin System |
Wall Panel |
-High quality double construction insulation EPS panel, thickness: 50mm. The thickness of steel is 0.33mm. -Galvanized steel roof panel . |
|
|
Basement |
- Plate type pressing convex platform , height is 300mm . - Five rows flat steel Grilles (galvanized) - 2 pieces of Ramps, each size 620×2000mm (W×L),diamond plate construction. |
||
|
Ventilation System |
Inlet fan |
2×3KW YDW double-intake centrifugal fans, total air capacity: 25000m³/h. |
|
|
Outlet fan |
Optional |
||
|
Cabinet setting type |
Intake air from side upper, adopt powder quadrate steel frame, strong and beautiful. Air duct*2m long*1 unit, Elbow: 90º *1unit |
||
|
Airflow speed |
0.4m/s, ventilation rate: 320times/h |
||
|
Heating System
|
-8 units infrared lamps for heating, 3 lamps/unit, each lamp 1KW. -Total power is 24KW. |
||
|
Lightening System |
Ceiling lights |
-LED Ceiling lights:8 units×3pieces =24pieces ×16W |
|
|
Side lights |
Optional |
||
|
Filtering System |
Primary filter |
-The primary filter can capture granules larger than 10μm , filtering rate > 83%. |
|
|
Ceiling filter |
-Ceiling filter can capture granules bigger than 4μm, filtering rate> 98%. |
||
|
Floor filter |
Optional |
||
|
Control System |
Function |
Lighting switch, spraying , heat spraying , baking , temperature controller, time setting, emergency stop. |
|
|
Voltage/Frequency |
380V/220V, 50Hz/60Hz, 3 phase |
||
|
Total Power |
30.5KW |
||
Want to add or reduce configuration for paint booth? Chat with me now
2. Advantages of oven bake automotive outdoor car painting booth for sale ( To know more, please click here ):
- High paint quality
- Energy-saving
- Strength is suitable for any type of vehicle
- Multi-purpose movable hanger made of galvanized iron frame.
- The machine bear the weight of car door, leaf plate, hood, trunk lid.
- Rotate at any Angle through the adjustable stepless rotating handle.
- It can effectively improve the working efficiency of the workers, which is more than 1 to 2 times more than the normal working efficiency.
- Speed, positive and negative can be sprayed at the same time, save time, vertical spray paint can reflect the mirror effect of the paint, save the baking time and reduce the energy consumption of the baking room.
3. Structures of spray booth:
1,As for OBC-E1 spray booth,what kind of heating system do you have?
OBC-E1 is electrical heating system. Others : diesel heating, and gas heating. Contact with me to let me know it.
2,What is the thickness of wall panels metal sheets?
The thickness of EPS is 50mm,the thickness of metal sheets is 0.426mm.
Optional: EPS 75mm, Rock wool 50mm, Rock wool 75mm.
3,What is the roof material?
Galvanized steel roof panel.
4,What is the relate of outside height and inside height of a spray booth?
The height of basement is 280mm,the height of roof is 420mm,so 3400mm-280mm-420mm=2700mm
5,As for SLD-E1 spray booth,what is the height requirement of vehicles which will be sprayed and baked?
Height of vehicles should be less than or equal to 1900mm,because there should be 800mm from car roof to inside booth roof.Be convenient to spray paint on the top of vehicles.
6,What is the main purpose of flat steel grilles?
There is filtration system under flat steel grilles.
7,What is the advantages of inlet fans and exhaust fans?
With fans,the booth will have a good and rapid internal air circulation,paint fumes can be drain out as quick as possible.Pollution is small,it will be comfortable when people are working in the booth.
8,What kind of fans used in your spray booth?
YDW European turbofan,high air volume,low noise,low pressure,it's ideal fans in automobile spray cabinet.
9,What kinds of color of main door I can choose?
As for main door,you can choose grey,white,red,blue,reddish orange,silver grey .
10,How do you determine fans on the left or right of spray cabinet?
When you stand in front of spray booth looking at it,the fans will be on the left or right.
11,Where is the temperature sensor installed in spray booth?
Temperature sensor should be installed at the middle of top roof.It is both beautiful and effective.
12,Can I open the ventilator and heating system at the same time?
When spraying,ventilator works,making a good internal air circulation,paint fumes can be drain out as quick as possible,you can open infrared lamps or diesel burner if indoor temperature is very low.But when baking,ventilator is not allowed to open.heating system and ventilator can not work at the same time when baking.
