Quick Details
-
Brand Name:
-
Tyrone
-
Voltage:
-
380
-
Dimension(L*W*H):
-
1020*670*1090mm
-
Power (kW):
-
3.72
-
Weight (T):
-
0.19
-
Name:
-
Plastic crusher
-
Color:
-
can be customized
-
Crushing material:
-
General Plastic Materials
-
Shaft:
-
single
-
Crushing caliber:
-
250*200mm
-
Fixed Knife/Piece:
-
2
-
Spinning Knife/Piece:
-
15
-
Rotate speed:
-
520 r/min
-
Mesh size:
-
8mm
-
Certification:
-
ce
Quick Details
-
Max.Production Capacity (kg/h):
-
150
-
Place of Origin:
-
Guangzhou, China
-
Production Capacity (kg/h):
-
50 - 150 kg/h
-
Brand Name:
-
Tyrone
-
Voltage:
-
380
-
Dimension(L*W*H):
-
1020*670*1090mm
-
Power (kW):
-
3.72
-
Weight (T):
-
0.19
-
Name:
-
Plastic crusher
-
Color:
-
can be customized
-
Crushing material:
-
General Plastic Materials
-
Shaft:
-
single
-
Crushing caliber:
-
250*200mm
-
Fixed Knife/Piece:
-
2
-
Spinning Knife/Piece:
-
15
-
Rotate speed:
-
520 r/min
-
Mesh size:
-
8mm
-
Certification:
-
ce

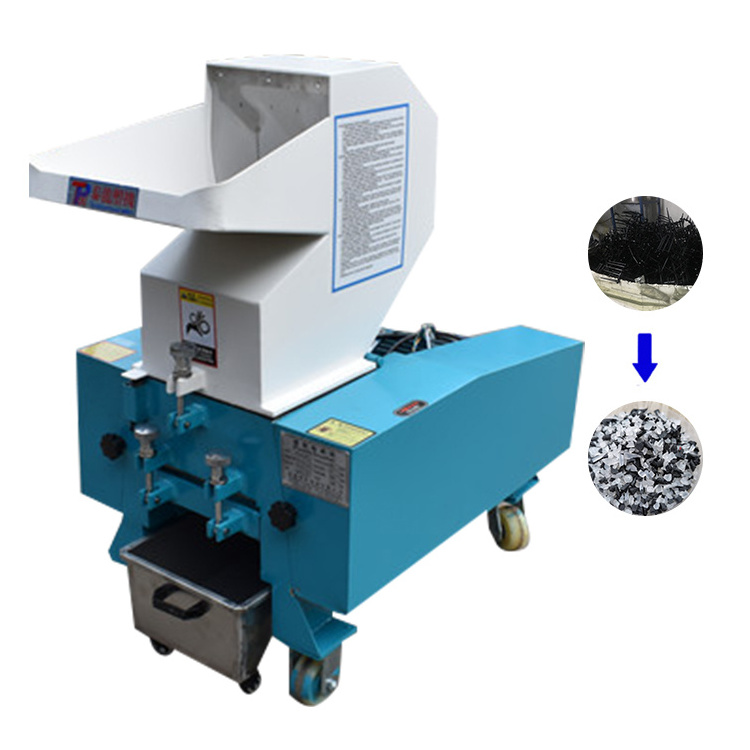

Products Description
Product Design
* The cutter of TLP series is similar between claws and flats blade, which is suitable for crushing plastic products of ordinary sheet, pipe, sections, board. packing material and degraded material.
* General use plastic crusher, which is equipped with sealed bearings to ensure the long-term perfect operation; reasonable design of knife to render the products into even granules; knife rest is heat-treated and the design of the machine is good-looking.
|
Model No.
|
TLP2520
|
TLP3126
|
TLP4128
|
TLP5032
|
|
Crushing caliber
|
250*200mm
|
310*260mm
|
410*280mm
|
500*320mm
|
|
Crushing ability
|
6
0-150h/kg
|
100-200h/kg
|
100-300h/kg
|
200-400h/kg
|
|
Knife QTY
|
(fixed)2+ (rotated)15
|
(fixed)2+ (rotated)9
|
(fixed)2+ (rotated)12
|
(fixed)2+ (rotated)15
|
|
Power
|
5HP
|
7.5HP
|
10HP
|
15HP
|
|
Rotate speed
|
520 r/min
|
520r/min
|
520r/min
|
520r/min
|
|
Mesh size
|
8mm
or customizing
|
8mm or customizing
|
8mm or customizing
|
10mmor customizing
|
|
Dimensions
|
1020*670*1090mm
|
1150*720*1220mm
|
1200*860*1350mm
|
1260*950*1530mm
|
|
Weight
|
300kg
|
350kg
|
450kg
|
680kg
|
NOTE
We also get bigger crusher model on sale, please contact us for more information.
Product Detail
Different blades are designed for different materials to improve the recovery efficiency
