Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
LANBOO
-
Model Number:
-
LBSA1X1 / LBSA1Y1
-
IP level:
-
IP65
-

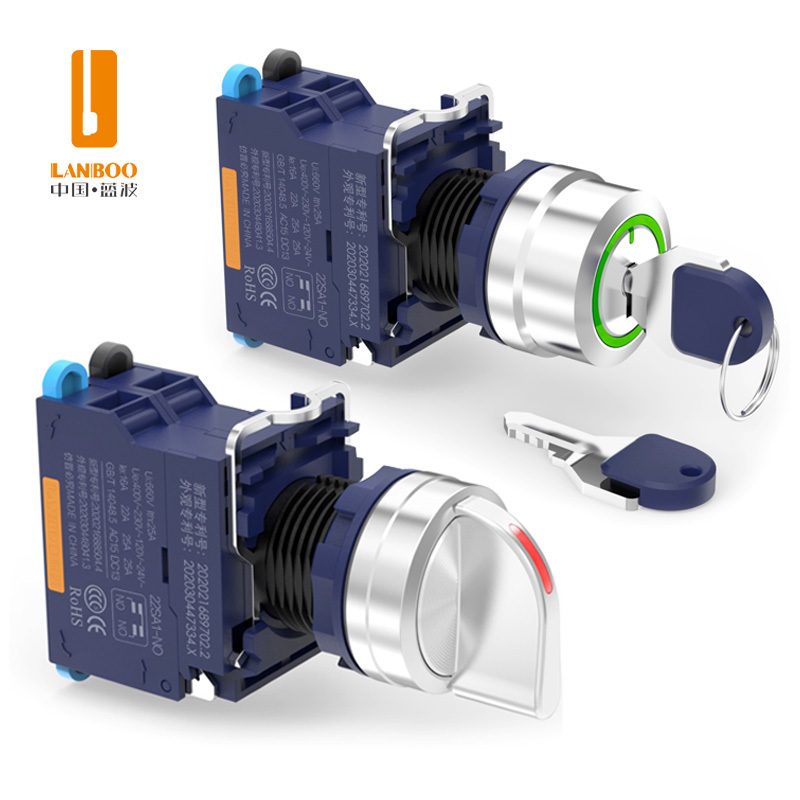

Product name:
-
LBSA1X1 / LBSA1Y1
-
Product type:
-
Waterproof With Light Knob/Key Knob High Current Series
-
Operation type:
-
Self-Locking / Self-Recovering
-
Mounting Hole Size:
-
22mm Diameter
-
Head shape:
-
Rotary Handle Head / Key Handle Head
-
LED color:
-
Red/Green/Blue/Yellow/White
-
LED Voltage:
-
3V/6V/12V/24V/36V/110V/220V/250V
-
Mechanical Life:
-
300,000 Times
-
Electrical Life:
-
50000 Times
-
Application:
-
Electronic/Electrical/Emergency Equipment
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
25A
-
Max. Voltage:
-
600VAC
-
Place of Origin:
-
China
-
Brand Name:
-
LANBOO
-
Model Number:
-
LBSA1X1 / LBSA1Y1
-
IP level:
-
IP65
-
Product name:
-
LBSA1X1 / LBSA1Y1
-
Product type:
-
Waterproof With Light Knob/Key Knob High Current Series
-
Operation type:
-
Self-Locking / Self-Recovering
-
Mounting Hole Size:
-
22mm Diameter
-
Head shape:
-
Rotary Handle Head / Key Handle Head
-
LED color:
-
Red/Green/Blue/Yellow/White
-
LED Voltage:
-
3V/6V/12V/24V/36V/110V/220V/250V
-
Mechanical Life:
-
300,000 Times
-
Electrical Life:
-
50000 Times
-
Application:
-
Electronic/Electrical/Emergency Equipment
Specification
|
Product Series
|
LB22SA1-X/LB22SA1-Y
|
|
Install Diameter
|
22mm
|
|
Limited Heating Current
|
Ith:25A(Ui:660VAC,Ue:440VAC)
|
|
Contact resistance
|
≦50mΩ
|
|
Insulation Resistance
|
≧1000mΩ
|
|
Protection Level
|
IP65, Anti-Collision IK10 (Refer to GB/T 20138)
|
|
Operating Ambient Temperature
|
-40°C~+80°C (non-vacuum state, without freezing)
|
|
Patent Certification
|
CCC CE RoHs REACH
|
Product Description
