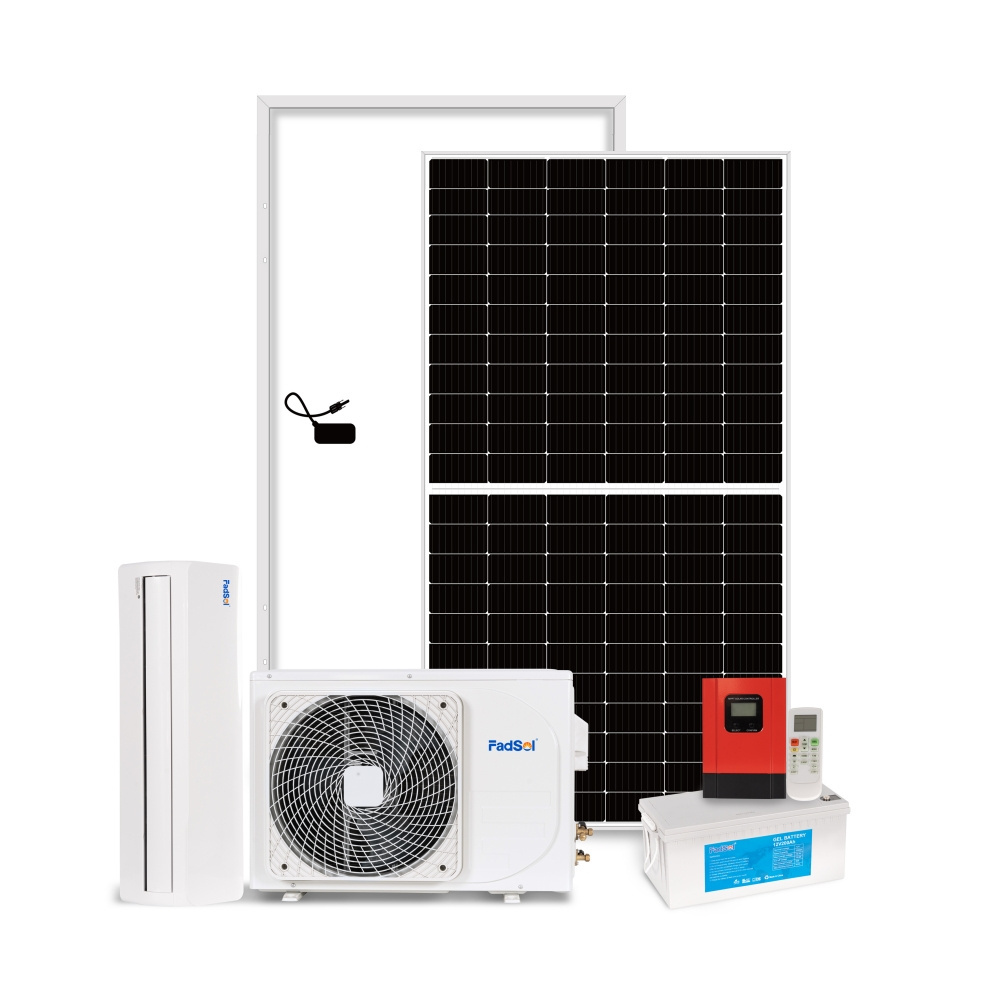

12000BTU 24000BTU 18000BTU AC DC 48V Solar Air Conditioner Off Grid for Home Solar Cooling Systems

12000BTU 24000BTU 18000BTU AC DC 48V Solar Air Conditioner Off Grid for Home Solar Cooling Systems

FOB Reference Price: Get Latest Price

≥1 Sets

US $600

≥5 Sets

US $500

≥10 Sets

US $400

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Cooling/Heating:: Cooling/Heating

Power Source:: Solar

App-Controlled:: Yes

Fixed Frequency/Variable Frequency:: Variable frequency

Place of Origin:: Zhejiang, China

Brand Name:: FadSol, FadSol

Model Number:: FD-OFF-36GW-DC

COP:: 4.8

Power (W):: 1300

Voltage (V):: 48

Maximum Airflow Rate:: 6000

Featured Function:: Intelligent control

Recommended Room Size（square feet）:: 20-30

Power supply:: 220-240V/1Ph/50Hz

Refrigerant:: R410a/R32

Solar Panels:: 3pcsx450W/36V

Cooling capacity:: 9000/12000/18000/24000btu

Certificate:: CE

Feature:: Eco-friendly

Quick Details

Capacity (btu):: 18000

EER:: 4.2, 4.4-5.2

Type:: Split Wall Mounted Air Conditioners

Cooling/Heating:: Cooling/Heating

Power Source:: Solar

App-Controlled:: Yes

Fixed Frequency/Variable Frequency:: Variable frequency

Place of Origin:: Zhejiang, China

Brand Name:: FadSol, FadSol

Model Number:: FD-OFF-36GW-DC

COP:: 4.8

Power (W):: 1300

Voltage (V):: 48

Maximum Airflow Rate:: 6000

Featured Function:: Intelligent control

Recommended Room Size（square feet）:: 20-30

Power supply:: 220-240V/1Ph/50Hz

Refrigerant:: R410a/R32

Solar Panels:: 3pcsx450W/36V

Cooling capacity:: 9000/12000/18000/24000btu

Certificate:: CE

Feature:: Eco-friendly

Product Description

Model	FD-OFF-36GW-DC	FD-OFF-52GW-DC	FD-OFF-72GW-DC
Model		12000Btu	18000Btu	24000Btu
Climate Type(Tropical＜/=58)	T1/T3			T1/T3	T1/T3
Power Supply
Battery DC	DC48V(46~58V)			DC48V(46~58V)	DC48V(46~58V)
Rated Cooling
Capacity T1(W)	3510(1000-3700)	5070(1200-5250)	6450(2500-7000)
Power input T1(W)	980(200-1200)	1450(220-1780)	1840(450-2230)
Rated Heating
Capacity(W)	3900(1000-4100)	5250(1200-5500)	7000(2000-7350)
Power input(W)	1130(180-1280)	1400(220-1830)	2050(390-2350)
T1 EER (WW)/(BTU/W)	3.60/12.25	3.50/11.8	3.50/11.85
COP (W/W)/(BTU/W)	3.45/11.75	3.75/12.80	3.40/11.70
Dehumidification capacity(L/h)	1.3	1.7	2.5
Compressor
Type	Rotary Inverter	2xRotary Inverter		2xRotary Inverter
Brand	GMCC	Highly	Panasonic
Indoor noise level (Turbo)(dB(A))	42.5	46	50
Indoor unit
Dimension(W×H×D)(mm)	840×205×295	1080×330×237	1080×330×237
Packing(W×H×D)(mm)	920×290×360	1140×300×382	1140×300×382
Net weight/Gross weight(kg)	9.0/12.5	15.0/18.5	15.0/18.5
Outdoor coil (a number of rows)	2			2	2
Outdoor noise level(Turbo)(dB(A))	52	55	58
Outdoor unit
Dimension(W×H×D)(mm)	802×564×323	802×564×323	900×700×337
Packing(W×H×D)(mm)	910×622×405	910×622×405	1006×755×418
Net/Gross weight(kg)	32.0/36.0	36.0/40.0	51/56
Refrigerant type	R410A/R32			R410A	R410A
Max Design pressure (Discharge/Suction) (MPa )	4.3/1.5	4.3/1.5	4.3/1.1
Refrigerant pipinglength(m)	3	4	4
