Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1220 mm
-
Travel (Y Axis)(mm):
-
2400 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
6
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QUICK CNC
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3170X2300X1760mm
-
Weight (KG):
-
2500
-
Warranty:
-
One Year
-
Spindle:
-
6kw Italy HSD Spindle
-
Control system:
-
NcStudio
-
Motor:
-
Japan Yaskawa Servo Motor
-
Software:
-
Artcam/Type3
-
Application:
-
MDF Acrylic PVC Aluminum and the others
-
Transmission:
-
Germany ball screw,Taiwan rack
-
Inverter:
-
Delta Inverter
-
Table structure:
-
Compact grade laminate vacuum table
-
Working area:
-
1220X2440X200mm
-
Product name:
-
CNC Wood Working Machine
-
Certification:
-
CE ISO
Quick Details
-
Working Table Size(mm):
-
1220×2400
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
8000 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1220 mm
-
Travel (Y Axis)(mm):
-
2400 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
6
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QUICK CNC
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3170X2300X1760mm
-
Weight (KG):
-
2500
-
Warranty:
-
One Year
-
Spindle:
-
6kw Italy HSD Spindle
-
Control system:
-
NcStudio
-
Motor:
-
Japan Yaskawa Servo Motor
-
Software:
-
Artcam/Type3
-
Application:
-
MDF Acrylic PVC Aluminum and the others
-
Transmission:
-
Germany ball screw,Taiwan rack
-
Inverter:
-
Delta Inverter
-
Table structure:
-
Compact grade laminate vacuum table
-
Working area:
-
1220X2440X200mm
-
Product name:
-
CNC Wood Working Machine
-
Certification:
-
CE ISO

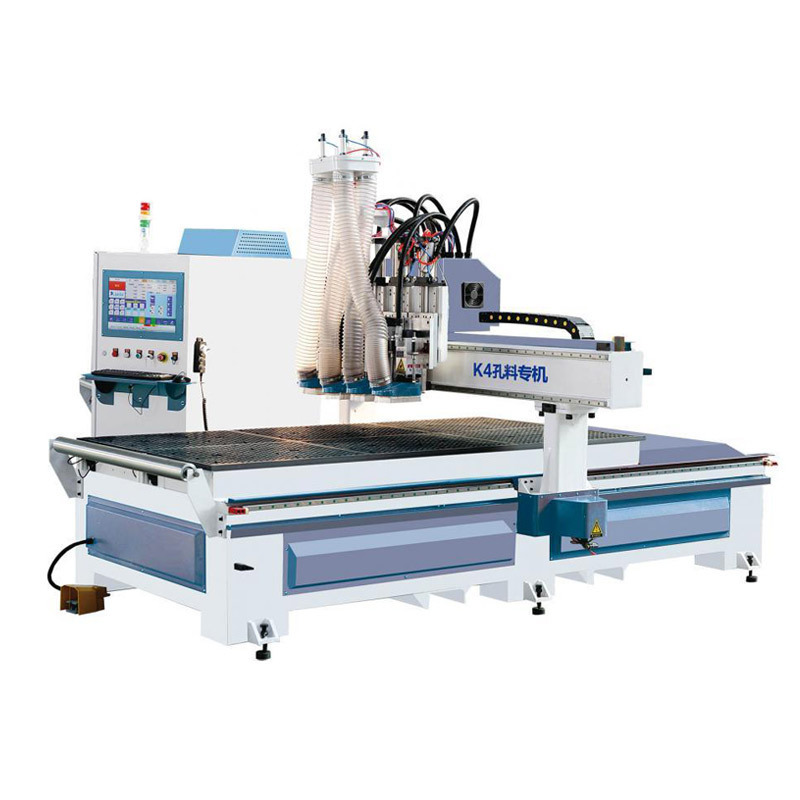

Factory supply high quality CNC Router wood machine K4
The K4 model is suitable for diversified complex product processing, 4 spindle automatic switching, can pack 4 different cutting tools for step processing, and has wide functions: router, row drill, cutting, side milling and sawing.It can realize double position processing. When the machine is operated for one position, the two station can carry on the operation of up and down at the same time, without idle time, and greatly improve the working efficiency and productivity.
Parameters of CNC Router
| model | K4 |
| X-Y-Z axis working area | 1220X2440X200mm |
| machine size | 3170x2300x1760mm |
| repositioning resolution | 0.02mm |
| system resolution | 0.0025mm |
| X-Y movement | rack and pinion,gear drive/Taiwan |
| Z movement | ball screw drive/Germany |
| Guide | linear 30 square/Taiwan |
| Max.speed | 60,000mm/min |
| Max.cutting speed | 30,000mm/min |
| spindle 1 power | 6kw Italian HSD |
| spindle 2 power | 6kw chinese air cooling |
| spindle 3,4 power | 2.2kw chinese air cooling |
| spindle speed | 18,000rpm |
| Inventer 1 power | 11kw |
| Inventer 2 power | 2.2kw |
| Drive motor | Servo/Japan |
| working voltage | AC380V/50-60HZ,3-phase |
| command code | G code |
| computer interface | USB 2.0 |
| collet | ER32-3.175mm,6mm,12.7mm |
| software | Artcam&Alphacam software/UK |
| Controls | NcStudio |
| Packing dimensions | 3300x2280x1800mm,2500kgs |
| Standard enquipment included |
1.Manual oil lubrication system 2.Dust hood 3.Auto tool surface sensor 4.T-slot vacuum table 5.vacuum pump 7.5kw water cooling 6.positioning pins |
