Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TMAX
-
Model Number:
-
TMAX-DCZDSY
-
Maximum sinusoidal excitation force:
-
600Kg.f peak
-
Maximum random excitation force:
-
600Kg.f r.ms
-
Maximum shock excitation force:
-
1200Kg.f peak
-
Frequency Range:
-
1~3000 Hz
-
Maximum displacement:
-
51 mm p-p
-
Maximum speed:
-
2m/s
-
Maximum acceleration:
-
100G
-
Effective load:
-
(M1+M2) 300 kg
-
Diameter of moving coil:
-
200 mm
-
Dynamic quality:
-
6kg
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Customized support:
-
other
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TMAX
-
Model Number:
-
TMAX-DCZDSY
-
Maximum sinusoidal excitation force:
-
600Kg.f peak
-
Maximum random excitation force:
-
600Kg.f r.ms
-
Maximum shock excitation force:
-
1200Kg.f peak
-
Frequency Range:
-
1~3000 Hz
-
Maximum displacement:
-
51 mm p-p
-
Maximum speed:
-
2m/s
-
Maximum acceleration:
-
100G
-
Effective load:
-
(M1+M2) 300 kg
-
Diameter of moving coil:
-
200 mm
-
Dynamic quality:
-
6kg
Application
Vibration testing is to stimulate or impact a component or device to see how it will react in a real environment. The application range of vibration test is extremely wide, from industrial products such as circuit boards, airplanes, ships, rockets, missiles, automobiles and household appliances.
Provide you with the entire excitation and testing program, and according to national and international standards, such as GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM, etc., to prove the quality of your products.
Technical parameter
|

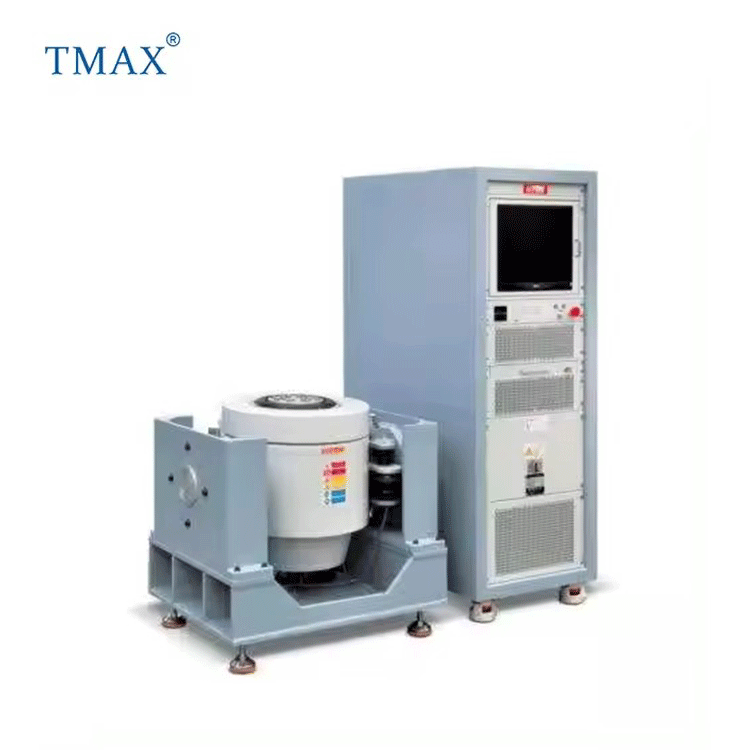

VG600-51 electromagnetic excitation generator parameters
|
|||
|
Maximum sinusoidal excitation force
|
600Kg.f peak
|
||
|
Maximum random excitation force
|
600Kg.f r.ms
|
||
|
Maximum shock excitation force
|
1200Kg.f peak
|
||
|
Frequency Range
|
1~3000 Hz
|
||
|
Maximum displacement
|
51 mm p-p
|
||
|
Maximum speed
|
2m/s
|
||
|
Maximum acceleration
|
100G(1000 m/s2)
|
||
|
Relationship between maximum load and maximum acceleration: F=M.A sine
|
|||
|
5G(50 m/s2)
|
10G(100 m/s2)
|
20G(200 m/s2)
|
30G(300 m/s2)
|
|
114Kg
|
54Kg
|
24Kg
|
14Kg
|
|
First-order resonant frequency
|
3200 Hz±5%
|
||
|
Effective load (M1+M2)
|
300 kg
|
||
|
Vibration isolation frequency
|
2.5 Hz
|
||
|
Diameter of moving coil
|
200 mm
|
||
|
Dynamic quality
|
6kg
|
||
|
Countertop screws
|
16×M8
|
||
|
Magnetic flux leakage
|
<10gauss
|
||
|
Dimension
|
800mm×600mm×710mm(Vertical stage)
|
||
|
Weight
|
About 720Kg
|
||
|
SA-6K Digital Switching Power Amplifier
|
|||
|
Output Power
|
6KVA
|
||
|
The output voltage
|
100V
|
||
|
Output current
|
60A
|
||
|
Amplifier size
|
720mm×550mm×1680mm
|
||
|
Amplifier weight
|
430KG
|
||
|
Servo protection system
|
|||
|
Function
|
Temperature, wind pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, input missing and equal
|
||
|
Temperature Digital Vibration Controller VCSusb-2
|
|||
|
Warm hardware configuration
|
2 channel input, 1 output channel
Sine, random
|
||
|
Control computer
|
Original brand computer with 17" LCD monitor, keyboard/optical mouse
|
||
|
Software
|
Chinese/English operation, time domain and frequency domain analysis, signal source, sine sweep frequency analysis, etc. can be performed. It can automatically generate WORD test report, display, store, set test parameters and analysis functions of signals and data.
|
||
|
Operating system
|
Win7/8/10
|
||
|
Acceleration sensor LAB
|
Frequency range: 1—12000Hz
Sensitivity: 30pC/g
Input method: charge type
Acceleration range: ±1500g
Working temperature: -40 – 160℃
|
||
|
VT650 vertical expansion table
|
|||
|
Material quality
|
Aluminum-magnesium alloy, hard anodized surface
|
||
|
Table size
|
500 mm×500 mm
|
||
|
Fixed hole position
|
M8 stainless steel threaded sleeve, durable and wear-resistant
|
||
|
Upper limit frequency
|
Sine 1000 Hz, random 2000 Hz
|
||
|
Weight
|
25KG
|
||
|
BL-600 cooling fan (including silencer)
|
|||
|
Fan power
|
4 KW
|
||
|
Air volume
|
1400m3/h
|
||
|
Air duct
|
120mm
|
||
|
Weight
|
55KG
|
||
|
Electrical requirements
|
|||
|
Humidity
|
0~85% RH (no condensation)
|
||
|
Power supply
|
3-phase 380V/50Hz 20 KVA
|
||
|
Compressed air
|
0.6Mpa
|
||
|
Ground resistance
|
≤4Ω |
||
If you customize more than six machines, you can integrate the machines into a comprehensive console
