Quick Details
-
Voltage:
-
220V or 380v or 415v
-
Power:
-
100kw
-
Dimension(L*W*H):
-
as customized
-
Weight (KG):
-
10000
-
After-sales Service Provided:
-
Overseas service center available
-
product name:
-
Electrostatic powder coating automatic production line
-
Recycle System:
-
cyclone and Filter Cartridge box
-
Color:
-
White
-
wall panel:
-
PP OR PVC board
-
Weight:
-
as required
-
Certification:
-
CE and ISO9001
Quick Details
-
Machine Type:
-
powder coating system, Spray Booths, Painting Equipment, Pre-treatment Equipment, Conveying Equipment, Drying Oven, Curing oven, Coating Equipment
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Clear
-
Voltage:
-
220V or 380v or 415v
-
Power:
-
100kw
-
Dimension(L*W*H):
-
as customized
-
Weight (KG):
-
10000
-
After-sales Service Provided:
-
Overseas service center available
-
product name:
-
Electrostatic powder coating automatic production line
-
Recycle System:
-
cyclone and Filter Cartridge box
-
Color:
-
White
-
wall panel:
-
PP OR PVC board
-
Weight:
-
as required
-
Certification:
-
CE and ISO9001
Product Description
|
|
spray pretreatment stage
|
|
Step 1&4:degreasing/ phosphating
|
Wall panel made of 1.2mm thick SUS304 stainless steel,with spray nozzles,cleaning time is 2min.
1 sets of 7.5kw centrifugal vertical pipe pumps for spraying. Water tank inside panel is made of SUS304 2.5mm thick stainless steel,outside is 0.8mm thick SUS304 stainless steel,inner is 40mm thick rock wool for keep heat. Each stage have 1 set of 3kw air exhaust fan on top |
|
Step 2&3&5:water rinsing 2&3&5
|
Wall panel made of 1.2mm thick SUS304 stainless steel, with spray nozzles inside,each workpiece cleaning
time is 1min.1 sets of 5.5kw centrifugal vertical pipe pumps for spraying. Water tank inside panel is made of SUS304 2.5mm thick stainless steel,outside is 0.8mm thick SUS304 stainless steel,inner is 40mm thick rock wool for keep heat |
|
Transition chamber
|
5 stages,wall panel made of 1.2mm thick SUS304 stainless steel,distance between chambers is 2400mm
|
|
Heating system
|
1 set of hot water boiler,1set of RL34 Riello brand diesel burner with 450L diesel tank,340000KCal/h
heating time: 45-50 min (10-50℃) diesel consumption is 20-24L/h |

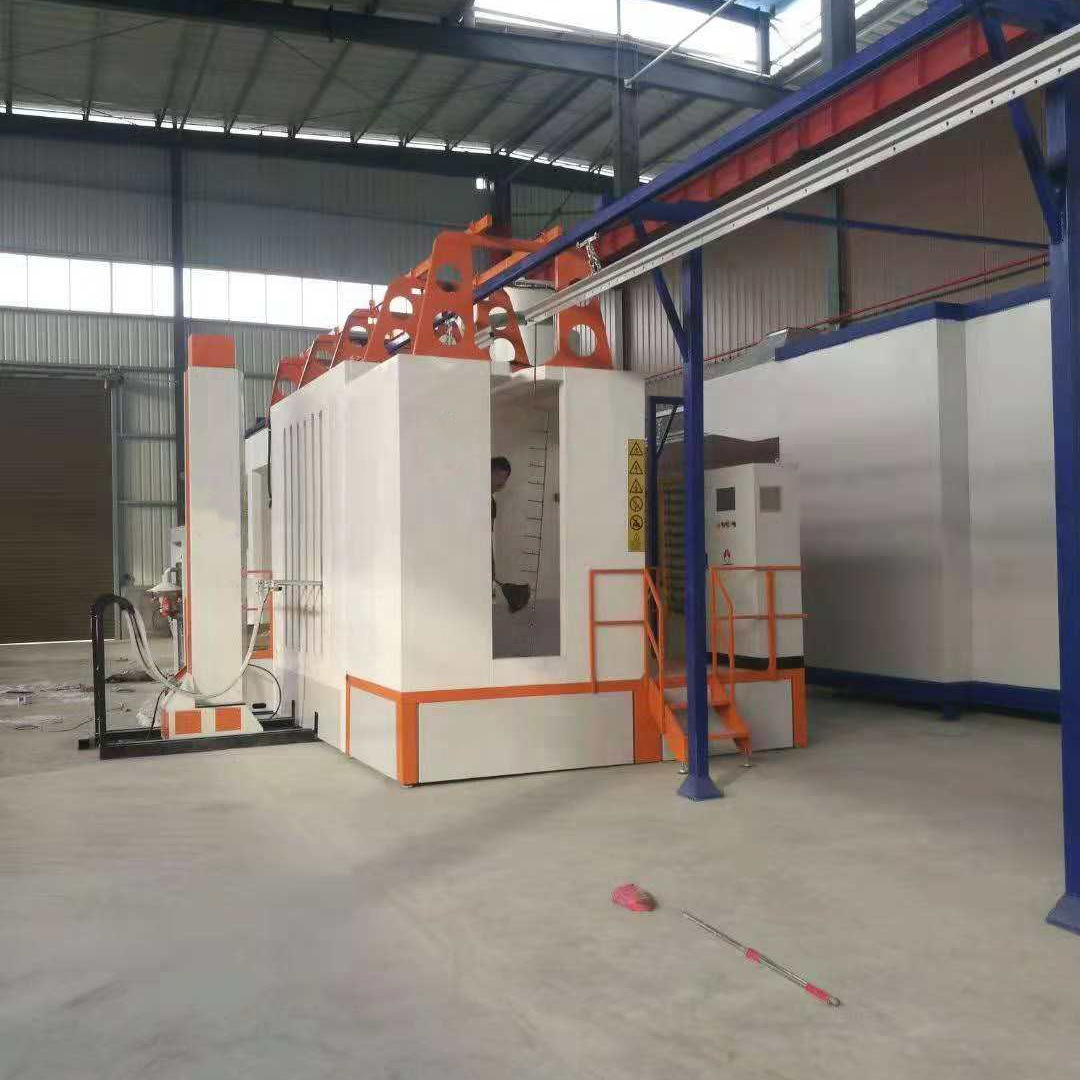

Automatic powder coating line
|
Outside Size
|
6300x1600x3100mm(LXWXH)
|
|
Inner size
|
5300x1600x2800mm(LXWXH)
|
|
Wall panel
|
2mm thick painted cold rolled steel sheet
Spray booth open size:800*1900mm for work piece to go into the booth,PP board and stainless steel board for optional |
|
Air Circulation System
|
1 set of 22kw 4-72-5A outlay motor fan. Each fan air flow capacity:15000m³/h
Pressure is 1700Pa, speed is 2900r/min. Fan use Hengkang Brand,domestic 20 years famous brand |
|
Powder recycling system |
One set of cyclone, with 12 pcs of filter cartridges ,each filter size: 324*900mm, with 12pcs pulse shaking device.
Air compressor pressure:0.6-0.8MPa,valve pressure:0.6Mpa. Powder recycling rate could reach 97%. Filter cartridge use Changwei Brand,good quality and durable |
|
Lighting System
|
Ceiling Light: 4 units 18w*2pcs LED lights,LED lights are Foshan brand
|
|
Electrostatic painting system
|
Two sets of 0.75kw reciprocators,each reciprocator has 2 sets of spraying guns,two sets of manual powder coating guns for manual
make up.Gun brand is Wanyu brand,domestic famous powder coating gun old factory,20years,quality is good. |
|
Total power
|
23kw
|
Big cyclone
powder recycling system with powder pump which can collect the powder and reuse it ,powder recycling rate is 97%,H=5.3m
Powder center
with big powder tank and vibrating screen for powder vibrating,PLC control system which could do fast color change,easy cleaning and operation
Detailed Images
automatic powder coating guns and control unit
Related Products
Packing&Shipping
plastic film and carton package
After Sales Service
Free parts within 1 year warranty
life long technical support and after sale service
Company Introduction
We have 3 workshops,each one is more than 2500 square meter ,we have aser cutting machine,shearing machine,bending
machine,punching machine,drilling machine,welding machine and painting booth in our factory.
We have 60 production workers,18 installation workers,10 engineers for oversea installation service and
machine,punching machine,drilling machine,welding machine and painting booth in our factory.
We have 60 production workers,18 installation workers,10 engineers for oversea installation service and
16 technician for project designing.
Our office is 2000 square meter,we have international trade department,technology department,
production department,financial department,purchasing department and so on,
total 52 office stuff.
