Quick Details
-
Marketing Type:
-
New Product 2022
-
Voltage:
-
380 or Customized
-
Power:
-
4kw
-
Dimension(L*W*H):
-
1400X650X1450mm
-
Weight (KG):
-
1300
-
Name:
-

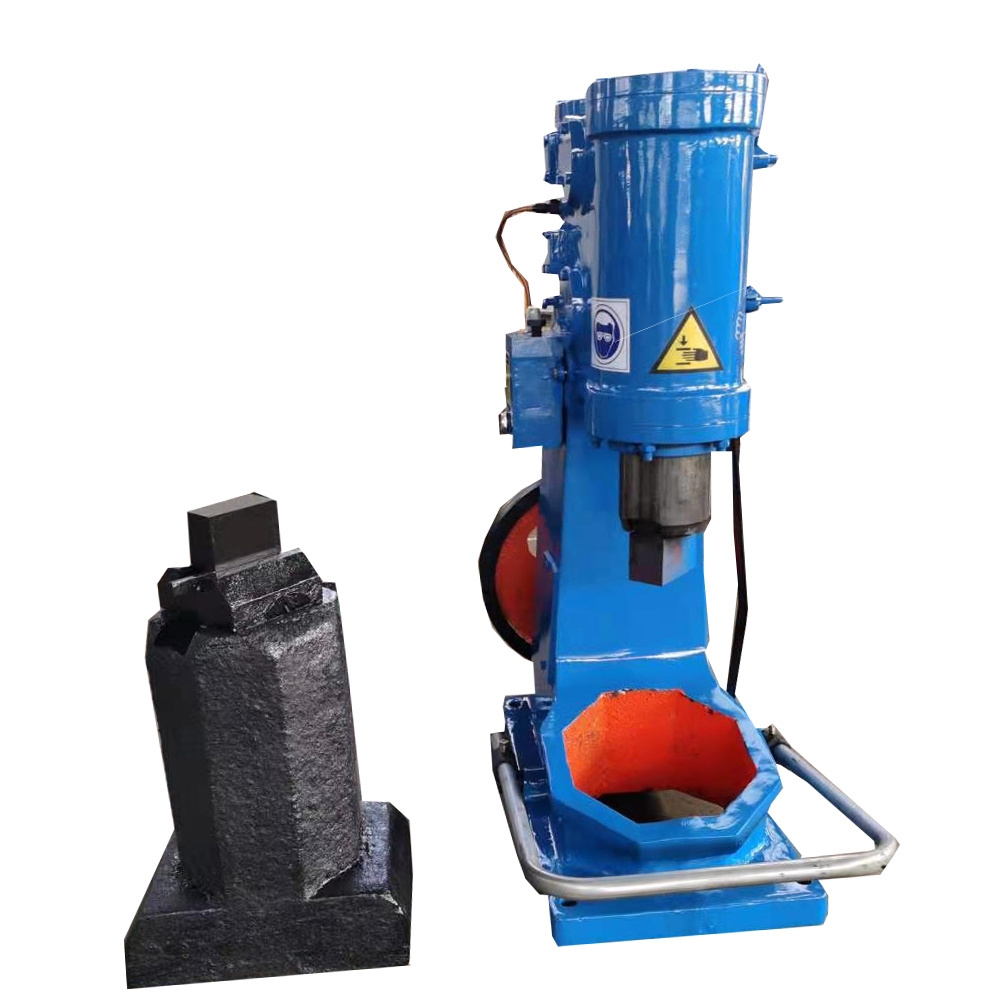

Air Power Forging Hammer
-
Advantage:
-
High Efficiency Metal Forging Equipment
-
Falling mass:
-
40kg
-
Maximum strike energy:
-
0.53kj
-
strick per minute:
-
245s/m
-
Maximum section of square steel forged:
-
55X55mm
-
forge maximum diameter of round steel:
-
65mm
-
Operating range height:
-
245mm
-
Electric motor speed:
-
1440rpm
-
Electric motor power:
-
4kw
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
waldey
-
Machine Type:
-
Metal forging machine
-
Marketing Type:
-
New Product 2022
-
Voltage:
-
380 or Customized
-
Power:
-
4kw
-
Dimension(L*W*H):
-
1400X650X1450mm
-
Weight (KG):
-
1300
-
Name:
-
Air Power Forging Hammer
-
Advantage:
-
High Efficiency Metal Forging Equipment
-
Falling mass:
-
40kg
-
Maximum strike energy:
-
0.53kj
-
strick per minute:
-
245s/m
-
Maximum section of square steel forged:
-
55X55mm
-
forge maximum diameter of round steel:
-
65mm
-
Operating range height:
-
245mm
-
Electric motor speed:
-
1440rpm
-
Electric motor power:
-
4kw
Product Overview
Features of the air hammer .
the pneumatic hammer is strong power, low noise, simple structure, convenient operation, flexible motion, and convenient
installation, maintenance.
1, the machine has the air compression organs, just power on is ok, the machine can operate, no need other devices.
installation, maintenance.
1, the machine has the air compression organs, just power on is ok, the machine can operate, no need other devices.
2, the air cyclinder has the lubricating device , before starting the machine , just shake the lubricating shank to lubricate.
3, easy operation. just use pedal or hand shank to do what you want to do. such as single hitting , continous hitting, lifting
hammer, and so on. the hit power can be controlled.
3, easy operation. just use pedal or hand shank to do what you want to do. such as single hitting , continous hitting, lifting
hammer, and so on. the hit power can be controlled.
Production Description
This air pneumatic hammer machine is a very useful tool for general forging, it has many functions, such as: upsetting, extending,continuous upsetting, punching, heat cutting, weldforging, twisting and bending.the machine uses open pad moulds can undertake all kinds of die forging, and it is widely used in hardware tools, medical equipment, gold and silver processing, manufacturing, agricultural machinery and copper tube factory, etc.
|
Model
|
C41-20
|
C41-25
|
C41-40
|
C41-55
|
C41-75
|
|
Max hit energy(KJ)
|
0.22
|
0.27
|
0.52
|
0.7
|
1
|
|
Height of working area(mm)
|
200
|
240
|
245
|
266
|
300
|
|
hit number(min)
|
270
|
250
|
245
|
230
|
210
|
|
dimension of top and bottom die
|
90*50
|
100*50
|
120*50
|
120*55
|
145*65
|
|
max round steel can be
|
35
|
45
|
68
|
68
|
85
|
|
max square steel can be
|
30*30
|
40*40
|
55*55
|
52*52
|
65*65
|
|
rate power(kw)
|
2.2
|
3/2.2
|
4.5
|
5.5
|
7.5
|
|
speed of motor(r.p.m)
|
1440
|
1440
|
1440
|
1400
|
1400
|
Product Details
The air hammer has a solid shell, which can well protect the internal components and is not easy to be damaged; At the same time, the smooth surface helps to clean and maintain the hygiene of the product The overall weight is light and easy to move.
Generate driving torque, as the power source of electrical appliances or various machinery, and provide sufficient power for the operation of the machine. The motor is represented by the letter G in the circuit. Its main function is to convert mechanical energy into electrical energy.
Dovetail type is easy to install and replace and customer can choose any shapes.
Driven by compressed air, it is widely used in casting extension, punching, etc
Humanized design, light beat and heavy beat, arbitrary.
The platform can increase the height and stability, and customers can choose to purchase according to their personal needs.
Customization anvil
Physical anvil
