- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
JY064
-
Brand Name:
-
JIANYANG
-
Processing Service:
-
CUTTING, BENDING
-
Product name:
-

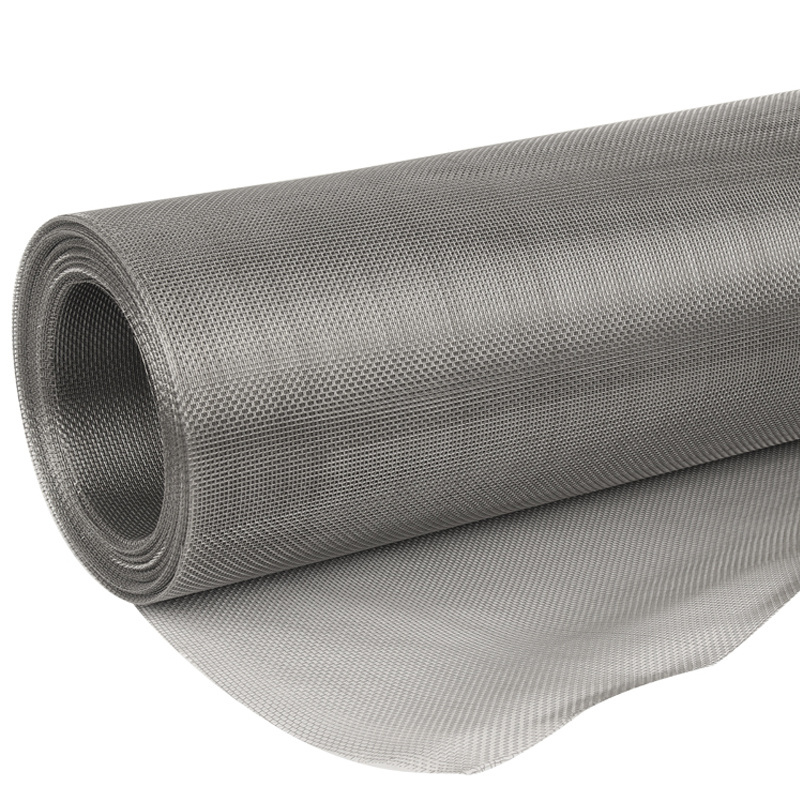

20 Micron Stainless Steel Woven Wire Mesh Net
-
Mesh:
-
mesh 2 to mesh 635
-
Micron:
-
1micron to 15mm
-
Width:
-
1m, 1.2m, 1.5m
-
Length:
-
30m/roll, customized
-
Package:
-
wood case, paper tube
-
Hole Shape:
-
Diamond
-
MOQ:
-
1 Square Meter
-
Business Type:
-
Factory
-
Sample:
-
Free
Quick Details
-
Material:
-
STAINLESS STEEL WIRE
-
Type:
-
Weave Wire Mesh
-
Application:
-
Filters
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
JY064
-
Brand Name:
-
JIANYANG
-
Processing Service:
-
CUTTING, BENDING
-
Product name:
-
20 Micron Stainless Steel Woven Wire Mesh Net
-
Mesh:
-
mesh 2 to mesh 635
-
Micron:
-
1micron to 15mm
-
Width:
-
1m, 1.2m, 1.5m
-
Length:
-
30m/roll, customized
-
Package:
-
wood case, paper tube
-
Hole Shape:
-
Diamond
-
MOQ:
-
1 Square Meter
-
Business Type:
-
Factory
-
Sample:
-
Free
Depending on the application, there are different materials best suited for the job. Among the most common in industrial applications is stainless steel, including SS316 and SS304 compositions.
SS304 stainless steel is the standard for many industrial applications, due to its affordability and resilient characteristics:
— Corrosion resistance in multiple manufacturing environments
— Heat resistance
— Oxidation resistance
— Applicability for welding using the most common techniques
— Virtual lack of magnetivity (in an annealed condition)
Other available materials for wire mesh include:
— Aluminum
— Brass
— Bronze
— Copper
— Galvanized
— Monel
— Steel — Carbon
— Steel — Plain
| Mesh | Aperture(mm) | Wire Diameter |
Effective (%) |
Weight (Kg/m2) |
|
Mesh 3 |
6.27 | 2.2 | 62 | 7 |
|
Mesh 5 |
4.36 | 0.711 | 76 | 1.6 |
| Mesh 6 | 3.52 | 0.711 | 63 | 1.6 |
| Mesh 8 | 2.5 | 0.559 | 67 | 1.5 |
| Mesh 10 | 2.08 | 0.46 | 67 | 1.1 |
| Mesh 12 | 1.74 | 0.457 | 68 | 1.4 |
| Mesh 14 | 1.36 | 0.46 | 57 | 1.4 |
| Mesh 16 | 1.21 | 0.376 | 55 | 1.2 |
| Mesh 18 | 1.1 | 0.315 | 60 | 0.85 |
| Mesh 20 | 0.95 | 0.315 | 58 | 0.95 |
| Mesh 30 | 0.67 | 0.274 | 55 | 0.85 |
| Mesh 40 | 0.44 | 0.152 | 46 | 0.58 |
| Mesh 50 | 0.36 | 0.152 | 50 | 0.45 |
| Mesh 60 | 0.3 | 0.122 | 50 | 0.45 |
| Mesh 80 | 0.198 | 0.12 | 44 | 0.58 |
| Mesh 100 | 0.154 | 0.1 | 37 | 0.5 |
| Mesh 120 | 0.13 | 0.081 | 40 | 0.39 |
| Mesh 150 | 0.097 | 0.61 | 32 | 0.3 |
| Mesh 200 | 0.086 | 0.041 | 46 | 0.17 |
| Mesh 300 | 0.054 | 0.031 | 40 | 0.15 |
| Mesh 350 | 0.042 | 0.031 | 36 | 0.16 |
| Mesh 400 | 0.0314 | 0.025 | 37 | 0.14 |
| Mesh 500 | 0.0258 | 0.025 | 35 | 0.156 |
