Quick Details
-
Voltage:
-
220V or any voltage you want
-
Dimension(L*W*H):
-
3250*3150*900mm
-
Application:
-
For furniture manufacturering
-
Weight (KG):
-
850 KG
-
Power (kW):
-
6.6kw
-
Max.Cutting Height at 90°(mm):
-
80mm
-
Max.Cutting Height at 45°(mm):
-
55mm
-
Max. Length of Workpiece (mm):
-
3200mm
-
Product name:
-
Woodworking Machinery 45 degree Cutting Sliding Table Panel Saw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Dimensions of sliding table:
-
3200*388mm
-
Saw blade diameter:
-
300mm
-
color of sliding table saw:
-
blue, red, black or any you like
-
Gross cutting capacity:
-
3200mm
-
Max. cutting width:
-
1250mm
-
Tilting saw group:
-
0-45°
-
main saw motor power:
-
5.5kw
-
warranty:
-
2 years
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QDZD
-
Usage:
-
cut panel ,ABS, MDF board
-
Voltage:
-
220V or any voltage you want
-
Dimension(L*W*H):
-
3250*3150*900mm
-
Application:
-
For furniture manufacturering
-
Weight (KG):
-
850 KG
-
Power (kW):
-
6.6kw
-
Max.Cutting Height at 90°(mm):
-
80mm
-
Max.Cutting Height at 45°(mm):
-
55mm
-
Max. Length of Workpiece (mm):
-
3200mm
-
Product name:
-
Woodworking Machinery 45 degree Cutting Sliding Table Panel Saw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Dimensions of sliding table:
-
3200*388mm
-
Saw blade diameter:
-
300mm
-
color of sliding table saw:
-
blue, red, black or any you like
-
Gross cutting capacity:
-
3200mm
-
Max. cutting width:
-
1250mm
-
Tilting saw group:
-
0-45°
-
main saw motor power:
-
5.5kw
-
warranty:
-
2 years

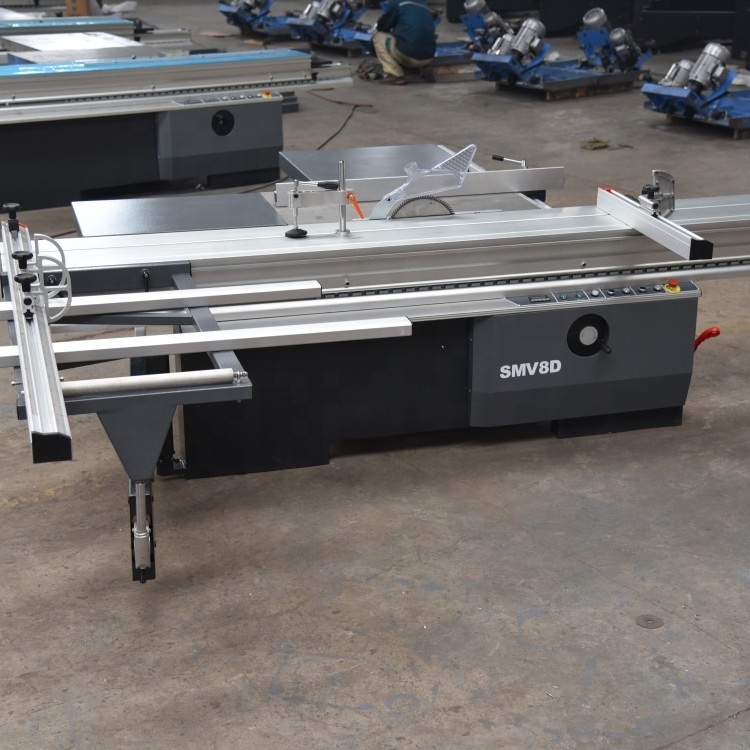

Woodworking Machinery 45 degree Wood Cutting Table Panel Saw
Technical Specification:
| Model | SMV8D/ZDV8D |
| Dimension of sliding table | 3200*388mm |
| Gross cut capacity | 3200mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Tilting saw group | 0-45° |
| Diameter of main saw blade | 300mm |
| Max. cutting height (90°) | 80mm |
| Speed of main saw spindle | 4000/6000r.p.m |
| Main saw motor power | 5.5kw |
| Main spindle diameter | 30mm |
| Diameter of scoring saw blade | 120mm |
| Speed of scoring saw spindle | 8000 r.p.m |
| Scoring saw motor power | 1.1kw |
| Scoring saw spindle diameter | 20mm |
| Lifting of saw blade | electrical lifting |
| Weight | 750kg |
| Overall dimension | 3250*3150*900mm |
Performance features:
1. Improved internal structure, ensure stable and precision working environment;
2. Aluminum sliding table with round stick rail, ensure smooth running;
3. Accurate and solid rip fence with fine adjustment function;
4. Adjustment saw blade protection extraction hood;
5. Saw blade manual tiltable (0°- 45°)as well as height adjustable.
2. Aluminum sliding table with round stick rail, ensure smooth running;
3. Accurate and solid rip fence with fine adjustment function;
4. Adjustment saw blade protection extraction hood;
5. Saw blade manual tiltable (0°- 45°)as well as height adjustable.
https://qdzhongding.en.alibaba.com/?spm=a2700.7756200.0.0.2fe171d27o1KIl
For more details, pls feel free to send us inquiry or contact us.
