Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
INTECH
-
Copper Thickness:
-
1oz~4oz
-
Min. Hole Size:
-
0.15MM
-
Min. Line Width:
-
5mil
-
Min. Line Spacing:
-
5 Mil
-
Surface Finishing:
-
HAL, plated Ni/Au,Imm Tin,OSP
-
Product name:
-
Rigid SMD5730 LED buld PCB Module,Aluminum Base led pcb
-
Material:
-
Aluminum
-
Layer count:
-
1-4 layers
-
Thermal conductive:
-
1.0/2.2 w/mk
-
Solder Mask:
-
White
-
Application:
-
Electronics Device
-
OEM/ODM:
-
Accept
-
Certificate:
-
ISO/TS16949/RoHS/TS16949
-
Shipping:
-
DHL UPS EMS TNT FedEx
Quick Details
-
Base Material:
-
Aluminum
-
Board Thickness:
-
0.5~3.2mm
-
Model Number:
-
INTECH-AL-001
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
INTECH
-
Copper Thickness:
-
1oz~4oz
-
Min. Hole Size:
-
0.15MM
-
Min. Line Width:
-
5mil
-
Min. Line Spacing:
-
5 Mil
-
Surface Finishing:
-
HAL, plated Ni/Au,Imm Tin,OSP
-
Product name:
-
Rigid SMD5730 LED buld PCB Module,Aluminum Base led pcb
-
Material:
-
Aluminum
-
Layer count:
-
1-4 layers
-
Thermal conductive:
-
1.0/2.2 w/mk
-
Solder Mask:
-
White
-
Application:
-
Electronics Device
-
OEM/ODM:
-
Accept
-
Certificate:
-
ISO/TS16949/RoHS/TS16949
-
Shipping:
-
DHL UPS EMS TNT FedEx

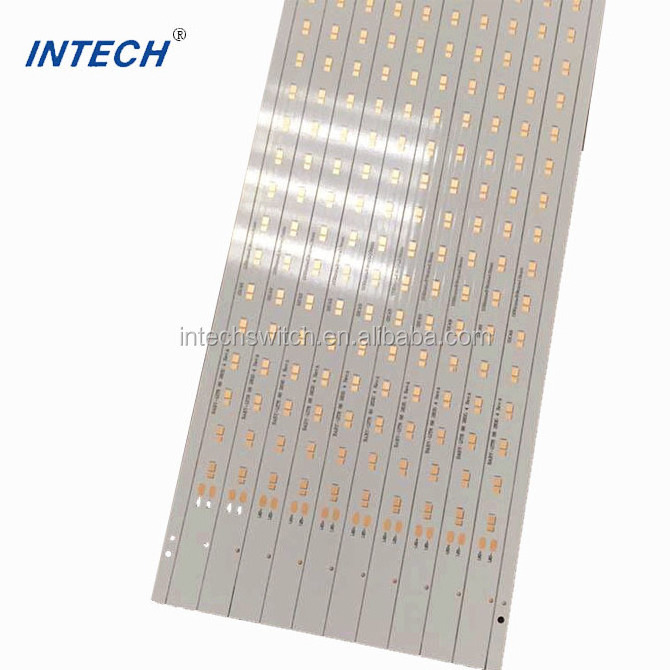

Rigid SMD5730 LED buld PCB Module,Aluminum Base led pcb
Product Description
Aluminum PCB capability:
| Item | Technical Parameters |
| Layers | 1-4 layers |
| Board thickness | 0.4-7.0mm |
| Min. line width/space | 4/4mil |
| Min. hole size: power drill hole | 0.1mm |
| Min. hole size: laser hole | 0.075mm |
| Max aspect ratio | 16:01 |
| Min punching square slot size | 0.8*0.8mm |
| Max. board size | 1100*610mm |
| Min. board size | 5*5mm |
| Copper thickness | 18-240um |
| PTH.Inner copper thickness | 18-40um |
| Line width tolerance | ±0.05mm |
| Hole size tolerance | ±0.05mm |
| Hole position tolerance | ±0.05mm |
| Outline tolerance | CNC: ± 0.1MM;Mould: ± 0.75mm |
| Board thickness tolerance | ±0.05mm |
| V-cut angle deviation tolerance | ±0.5° |
| Board material | Al base, Cu base, Fe base, Ceramic base |
| Surface finish | HAL(with Pb free), plated Ni/Au,Imm Ni/Au,Imm Tin,OSP |
| Solder mask material | Liquid photo imageable |
| Solder mask window | 4mil |
| Solder mask bridge | 4mil |
| Solder mask color | White, black,blue,green,grey ect. |
| Legend type | Epoxy thermal cure |
| Legend min. line width | 6mil |
| Legend color | White,black,yellow ect. |
| Impedance control | ± 10% |
