Quick Details
-
Application:
-
Laundry / Toilet Soap
-
Material:
-
Stainless Steel 304
-
Function:
-

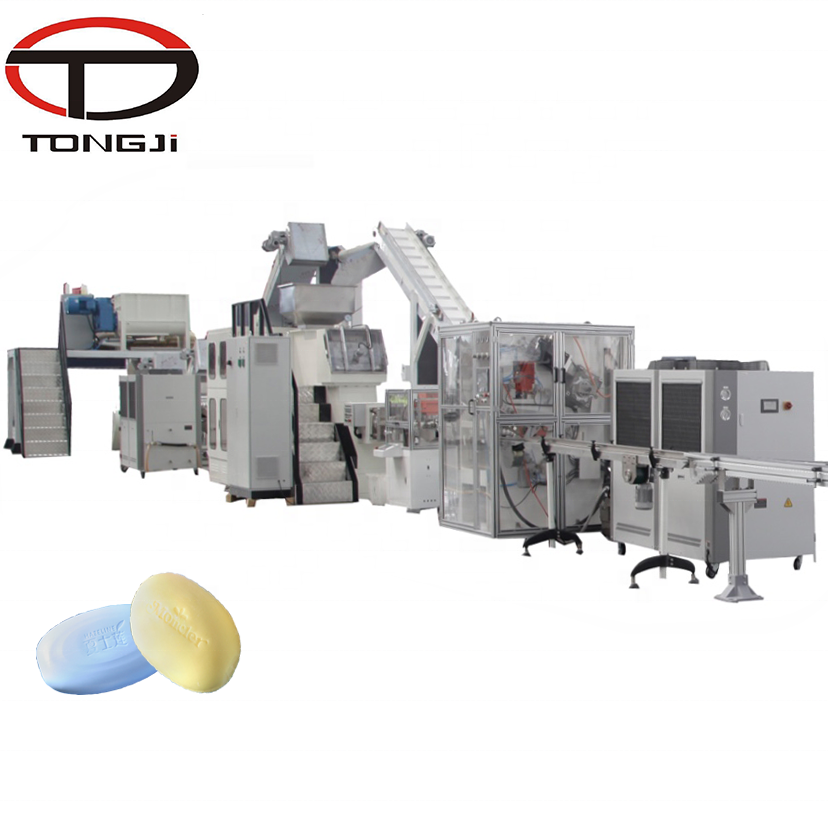

Soap Automatic Production Line
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tongji
-
Machine Type:
-
Soap Production Line
-
Application:
-
Laundry / Toilet Soap
-
Material:
-
Stainless Steel 304
-
Function:
-
Soap Automatic Production Line
Product Description
|
Main Machines List
|
|
|
||
|
No
|
Machine
|
Optional
|
||
|
Z1
|
XZJ250 Mixer
|
XZJ50 XZJ100 XZJ450 NHJ50 NHJ100 NHJ250 NHJ450 NHJ750
|
||
|
Z2
|
S450P Three Roll Mill
|
S150 S260 S405AP; Diagnal Roll Mill XS260 XS440A XS440
|
||
|
Z3
|
S450P Three Roll Mill
|
S150 S260 S405AP; Diagnal Roll Mill XS260 XS440A XS440
|
||
|
Z4
|
XCT1000 Duplex Plodder
|
XCT300, XCT500,XCT1000,XCT2000, XCT3000, XCT4000
|
||
|
Z5
|
XQK/G300 Embossing & Cutting Machine
|
XQK/G300, XQK/SG300, XQK/SSG300
|
||
|
Z6
|
XLD200 Stamper XLD200
|
XLD280, XLD400,XLD480
|
||
|
Conveyor
|
|
|
||
|
Platform and Utilities
|
|
|
||
|
F1
|
Steel Operation Platform
|
|
||
|
F2
|
1m3/m Air Compressor
|
|
||
|
F3
|
Plodder Vacuum Pump U4.40
|
|
||
|
F4
|
Stamper Vacuum Pump KVT3.60 |
|
||
|
F5
|
S400-WLH High Temperature Chiller S400-WLH
|
|
||
|
F6
|
S200-WL Low Temperature Chiller S200-WL
|
|
||
|
Moulds
|
|
|
||
|
M1
|
Mould for Embossing Cutter
|
|
||
|
M2
|
Mould for XLD200 Stamper XLD200 |
|
||
Part 2: Machine Description
Main Machines: Z1: Mixer/ Amalgamator
Amalgamator/Mixer
TSingle shaft two blade type paddle,driven by the motor through the gear box and rotates continuously to mix soap noodles, flakes and liquid or solid addtives.
Optional: Two "Sigma" mixing blades are cpimter rotatomg and different speedsto help to fully mix the materials.
Z2 &Z3. Three Roll Mill
Horizontal 3 Roll Mill.
The 3 rolls are horizontally mounted, rotating at different speeds.
Optional : Diagnal 3 Roll Mill.
The 3 rolls are mounted diagnally, cooling effect is enhanced by more soap contact area with the rolls compared with horizontal type
Z4. Duplex Plodder
Duplex Single Worm Vacuum plodder.
Optional : Duplex Twin Worm Vacuum Plodder.
2 stages and each stage has double screws which has large output capacity.
Z5. Embossing & Cutting Machine
Z6:Stamper
2.3 Conveyors:
The frame is made of steel square tube with good stability. The upper side edges and the bottom cover are all made of high quality stainless steel. Brake wheels are installed on the supporting feet, for easy movement and fixing.
2.4 Platform and Utilities
2.5 Mould:
M1. Mould for Embossing Cutter
M2. Mould for XLD Type Stamper
Our Company
1,
As
P&G's
global strategic partner and appointed supplier for soap, toothpaste and packaging machinery, we've been serving P&G's factories world-wide.
2,
Set up the global sales and after-sales network, serving more than
700 customers
in more than
50 countries
, including of
P&G, Unilever, Reckitt Benckiser, Wilmar, Colgate, NICE, EVYAP, WINGS, GIV, NUVO,
etc.
Certifications
Classified as best credit rating of AAA, certificated by ISO9001: 2008, got CE and UL with C3+ safety standards.
Our Service
1, Warranty: One year after shipment.
2, After-sales Service:
1) Before installation, the seller will provide the layout drawing, and information of total line power, individual machine power, power connections, water & air input and output position, total water consumption.
2)
After the machines arrival in buyer site
and put into position, the buyer must connect the water, electricity, air and vacuum gas with the machines, then the seller shall send 3~4 technicians to help start-up the line for production, on-line training and production supervision. The buyer shall pay below service ratings, as well as round-trip transportation from our factory to buyer's factory, the visa application fee, food, transportation and accommodation.
