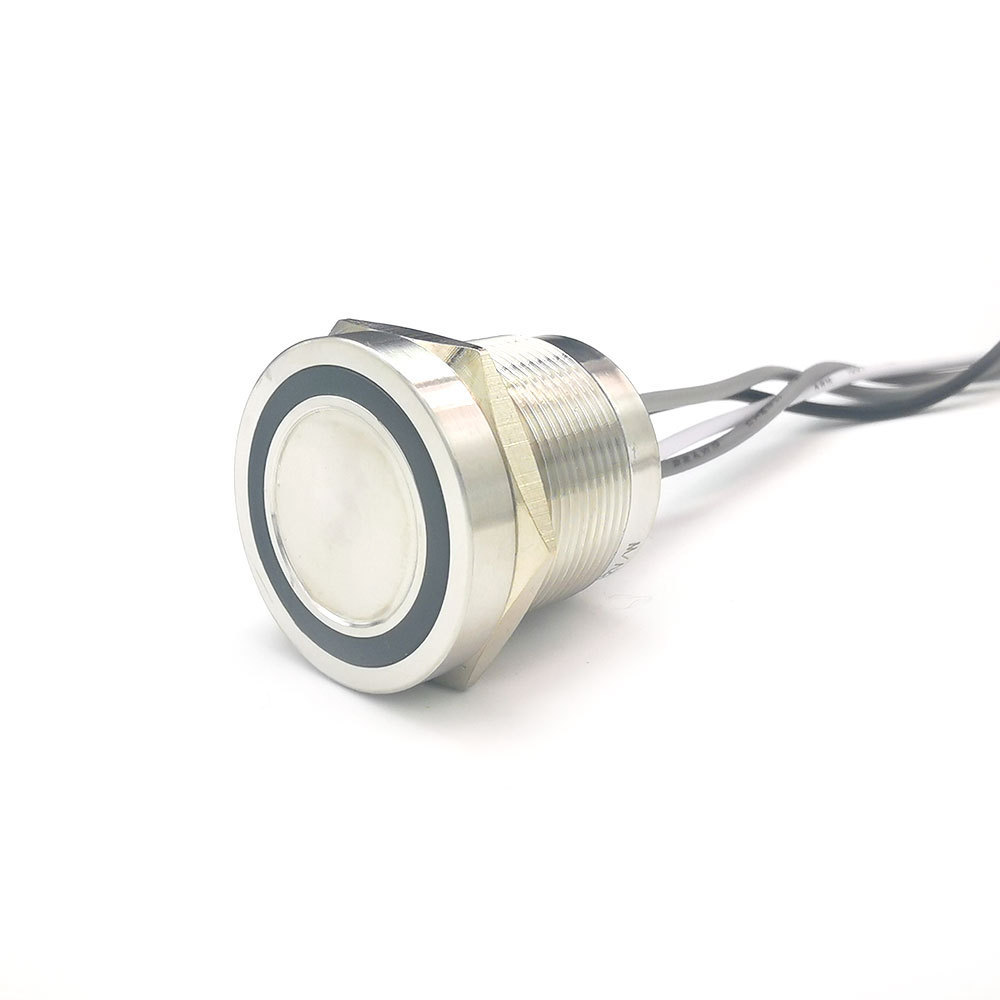

PRODUCT FEATURES
|
|
|
|
Install Diameter
|
19 mm
|
|
|
Operation Type
|
Latching (Press the button, the circuit is connected; Press the button again and the circuit is disconnected.
|
|
|
Head Shape
|
Flat Round Head
|
|
|
Terminal Type
|
4 wires of 0.22 square,30mm ( Wire length can be customized.)
|
|
|
Panel Thickness
|
1-10mm
|
|
|
Pulse Time
|
50ms (Acceptable customization)
|
|
|
PRODUCT MATERIALS
|
|
|
|
Body Material
|
Stainess steel 304/316, Aluminum 6061, anodized
|
|
|
Button Material
|
Stainess steel 304/316, Aluminum 6061, anodized
|
|
|
LED PARAMETERS
|
|
|
|
|
||||
|
Led Type
|
Ring Symbol
|
|
|
|
||||
|
Led Voltage
|
3v-24v
|
|
|
|
||||
|
Led life
|
More Than 40,000 hours
|
|
|
|
||||
|
Led color
|
Red Green Blue Yellow White
|
|
|
|
||||
|
ELECTRICAL SPECIFICATIONS
|
|
|
|
2Max Switch Rating
|
2A / 24V DC
|
|
|
Contact Resistance
|
≤ 50mΩ
|
|
|
Insulation Resistance
|
≥ 10000mΩ
|
|
|
Dielectric Strength
|
2000VAC
|
|
|
Operating Life
|
More than 200000 cycles
|
|
|
ENVIRONMENTAL SPECIFICATIONS
|
|
|
|
IP Degree
|
IP68 IEC529
|
|
|
Operation Temperature
|
-40℃～ 70℃
|
|
|
Operating Pressure
|
About 6N
|
|
|
Operation Humidity
|
10%-90%
|
|
