Product Name:
-

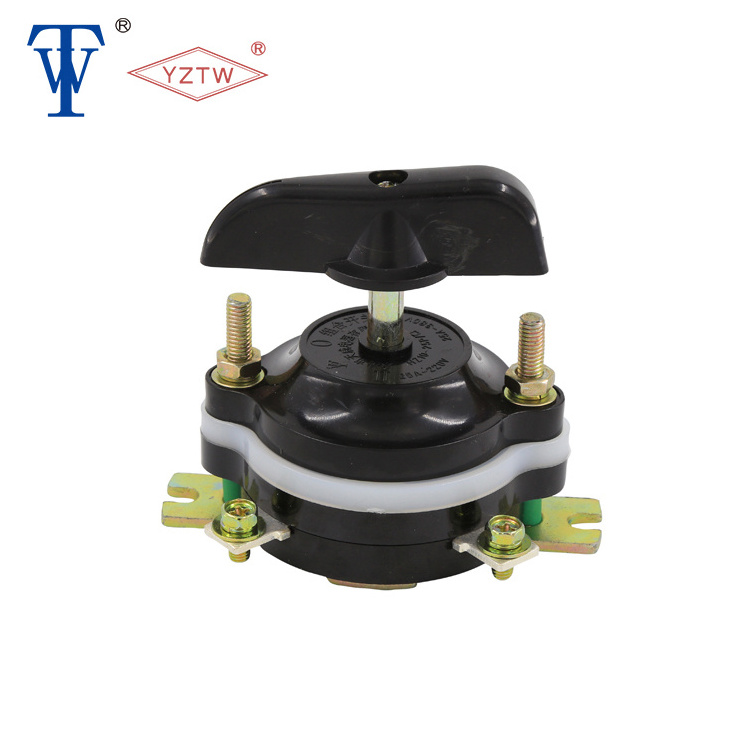

YZTW HZ10 Series Combination Changeover Switch
Quick Details
-
Max. Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
model specification:
-
HZ10
-
Ratedinsulation volt:
-
690V
-
Given heating current:
-
25A,63A,100A
-
Rated work volt:
-
220V,380V
-
Rated work current:
-
25A,63A,100A
-
Product Name:
-
YZTW HZ10 Series Combination Changeover Switch
Product's introduction
HZ 10 series combination switch is mainly used for AC 50Hz, rated work Voltage 380V and below, DC voltage 220V and below, rated current tolnthe 100A circuit, the manual is not connected frequently Resistance hybrid load circuit resistive load circuit, but also can control small capacity AC motor.
The product conforms to the standard GB 14048.3.
usageSorts:AC-21 B Icw-Als
classification
- according to the use of points
- Single phase power switch
- Two power or two circuit switch (code P)
- Three circuit switch (codeS)
- Four circuit switch (code G)
- Control of small capacity motor switches (code N)
- according to the installation type
- Front plate connection type
- according to the pole number
- Unipolar, bipolar, triple, quadrupole
- according to the numberoflines
- One section, two sections, the three section, the four section, the five section, the six section
Main technical parameters
| model specification | HZlO-25 | HZlO-63 | HZ10-100 | HZ10-100/E1 19 | ||||
| Ratedinsulation volt | 690 | 690 | 690 | 690 | ||||
| Given heating current | 25 | 63 | 100 | 100 | ||||
| Rated work volt | 220 | 380 | 220 | 380 | 220 | 380 | 380 | |
| Rated work current | 25 | 63 | l 00 | 100 | ||||
mechanicalendurance
- 20 thousand times,operation frequency is 120 times/hour.
| outlinesize(mm) | installation size(mm) | ||||||||
| model specification | Al | A2 | H | φ | C | Bl | B2 | S | JA |
| HZlO-25/2 | 100 | l14 | 98 | 8 | ~95 | 90 | 100 | 6 | - |
| HZlO-25/3 | l00 | l14 | 108 | 8 | 90 | 100 | 6 | - | |
| HZlO-63/2 | 142 | 153 | 129 | 9 | ~l20 | 128 | 139 | 7 | - |
| HZlO-63/3 | 142 | l53 | l44 | 9 | 128 | 139 | 7 | 18 | |
| HZlO-lOO/3 | 142 | 153 | 152 | 9 | ~154 | l28 | 139 | 7 | 18 |
| HZ10-100/E19 | 142 | 210 | 9 | ~l28 | 128 | 7 | 18 | ||
On-off principle can be designed and manufactured according to user's requirements
