Selective application industry:
Mobile phones, computers, integrated circuits, tablets, digital, automotive industrial battery assembly speaker dispensing mechanical parts sealing Hardware accessories chip binding semiconductor packaging LED sealing decorative adhesive PCB board dispensing.
- Product Details
- {{item.text}}
Quick Details
-
Marketing Type:
-
New Product 2024
-
Warranty of core components:
-
2 Year
-
Core Components:
-
CCD, Servo motor, Precision guide rail, Industrial PC, Screw
-
Model:
-
GR-FD15
-
Working mode:
-
Automatic
-
Feeding method:
-
manual feeding
-
Cutting method:
-
manual cutting
-
Equipment travel:
-
(X) 700* (Y) 450* (Z) 100(unit: mm)
-
Speed:
-
500mm/s(Max. 800mm/s)
-
Power supply:
-
AC220V/50HZ
-
Power:
-
1.5KW
-
Key words:
-
Glue Dispensing Machines
-
Dispensing method:
-
piezoelectric hot melt spray adhesive
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GREEN
-
Weight (KG):
-
280
-
Marketing Type:
-
New Product 2024
-
Warranty of core components:
-
2 Year
-
Core Components:
-
CCD, Servo motor, Precision guide rail, Industrial PC, Screw
-
Model:
-
GR-FD15
-
Working mode:
-
Automatic
-
Feeding method:
-
manual feeding
-
Cutting method:
-
manual cutting
-
Equipment travel:
-
(X) 700* (Y) 450* (Z) 100(unit: mm)
-
Speed:
-
500mm/s(Max. 800mm/s)
-
Power supply:
-
AC220V/50HZ
-
Power:
-
1.5KW
-
Key words:
-
Glue Dispensing Machines
-
Dispensing method:
-
piezoelectric hot melt spray adhesive

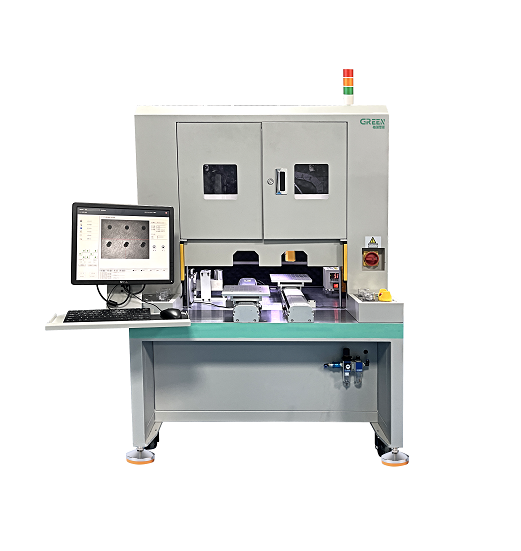

Floor type double Y hot melt spray glue machine
Product Description
Device features
5. Support CCD visual positioning, including Mark correction, with straight line and
arc grip function, array can be multiple production
Product photo identification and positioning, accurate calculation of automatic
correction dispensing path;
Device features
6. Support automatic gluing system;
7. Optional automatic weighing system;
8. Equipped with lifting doors to reduce noise during work;
9. Drive mode: servo motor + precision screw + precision rail drive;
10. Dispensing method: piezoelectric hot melt spray valve;
11. With glue preheating mechanism;
12. Modular structure design, easy to maintain
Specification
|
Item
|
Specifications
|
|
|
|
|||
|
Model
|
GR-FD15
|
|
|
|
|||
|
Working mode
|
Automatic
|
|
|
|
|||
|
Feeding method
|
manual feeding
|
|
|
|
|||
|
Cutting method
|
manual cutting
|
|
|
|
|||
|
Equipment travel
|
(X) 700* (Y) 450* (Z) 100(unit: mm)
|
|
|
|
|||
|
Speed
|
500mm/s(Max. 800mm/s)
|
|
|
|
|||
|
Motor type
|
servo motor
|
|
|
|
|||
|
Dispensing method
|
piezoelectric hot melt spray adhesive
|
|
|
|
|||
|
Repeatability
|
± 0.02mm
|
|
|
|
|||
|
Control system
|
Motion control card + industrial computer mouse button
|
|
|
|
|||
|
keywords
|
soldering machines
|
|
|
|
|||
|
Guide rail
|
Taiwan brand
|
|
|
|
|||
|
Screw
|
Taiwan brand
|
|
|
|
|||
|
Photoelectric switch
|
Omron/Taiwan brand
|
|
|
|
|||
|
Outer demension(L*W*H)
|
L1100mm*W850mm*H1600mm
|
|
|
|
|||
|
Power supply
|
AC220V/50HZ
|
|
|
|
|||
|
Power
|
1.5KW
|
|
|
|
|||
|
Vision system
|
Hikon Industrial Camera
|
|
|
|
|||
|
Driving mode
|
Servo motor + precision screw + precision guide rail
|
|
|
|
|||
|
Moving figures
|
points, lines, arcs, whole circles, curves, multi-segment lines, spirals, ellipses
|
|
|
|
|||
|
Display mode
|
Monitor
|
|
|
|
|||
After-sales Service
|
Commitment
|
Product quality and after-sales service is the basis for enterprise, from the beginning of establishment, we have established the "honesty, quality first, users first" , in order to complete this commitment, we have established a hard-working and excellent technical team in green. Our company can provide training guidance and equipment maintenance when you are interested in the product.
|
|
Quality
|
Our company strictly comply with ISO9001-2000 international quality management system standard
|
|
Factory accessories
|
We supply various industrial robot accessories. in order not to affect the normal work of the robot, you can buy accessories through the phone in advance, our company will arrange delivery the same day! It is recommended that users buy original Green accessories to achieve the best effect of use.
|
|
Warranty
|
All users will enjoy one-year warranty and lifelong maintenance after-sales service with "product quality warranty card" !
|
Packing & Delivery
Wooden box
