Equiped with Japanese Epson DX5/DX7/XP600/TX800/I3200 heads with 180 nozzles 6 or 8 channels, which provides a high-
precision printing.
- Product Details
- {{item.text}}
Quick Details
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Winscolor
-
Voltage:
-
220V 50/60Hz(10%)
-
Dimensions(L*W*H):
-
1060*2100*1160mm
-
Weight:
-
400 KG
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
YC6090
-
Print head:
-
RICOH GEN5i/TOSHIBA CE4 Optional
-
Ink Characteristics:
-
UV Curing Ink (VOA Free)
-
Keyword:
-
multicolor printer
-
Print speed:
-
2-8sqm/h
-
Print Interface:
-
USB2.0/USB3.0/Ethernet Interface
-
Printing Size:
-
900*600mm
-
Print resolution:
-
720X1200dpi
-
RIP software:
-
Photoprint / Rip print
-
Printhead arrangement:
-
CMYKW V Optional
Quick Details
-
Print Dimension:
-
900mm*600mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Winscolor
-
Voltage:
-
220V 50/60Hz(10%)
-
Dimensions(L*W*H):
-
1060*2100*1160mm
-
Weight:
-
400 KG
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
YC6090
-
Print head:
-
RICOH GEN5i/TOSHIBA CE4 Optional
-
Ink Characteristics:
-
UV Curing Ink (VOA Free)
-
Keyword:
-
multicolor printer
-
Print speed:
-
2-8sqm/h
-
Print Interface:
-
USB2.0/USB3.0/Ethernet Interface
-
Printing Size:
-
900*600mm
-
Print resolution:
-
720X1200dpi
-
RIP software:
-
Photoprint / Rip print
-
Printhead arrangement:
-
CMYKW V Optional
Products Description
Printhead
EPSON DX5/DX7/
XP600/TX800/I3200
Printhead 2-4 units
Print Effect
Color, white, varnish and 3D embossing effect optional
Printing Areas
Glass/Ceramic/Decoration/
Advertising&Sign industry
Product Paramenters

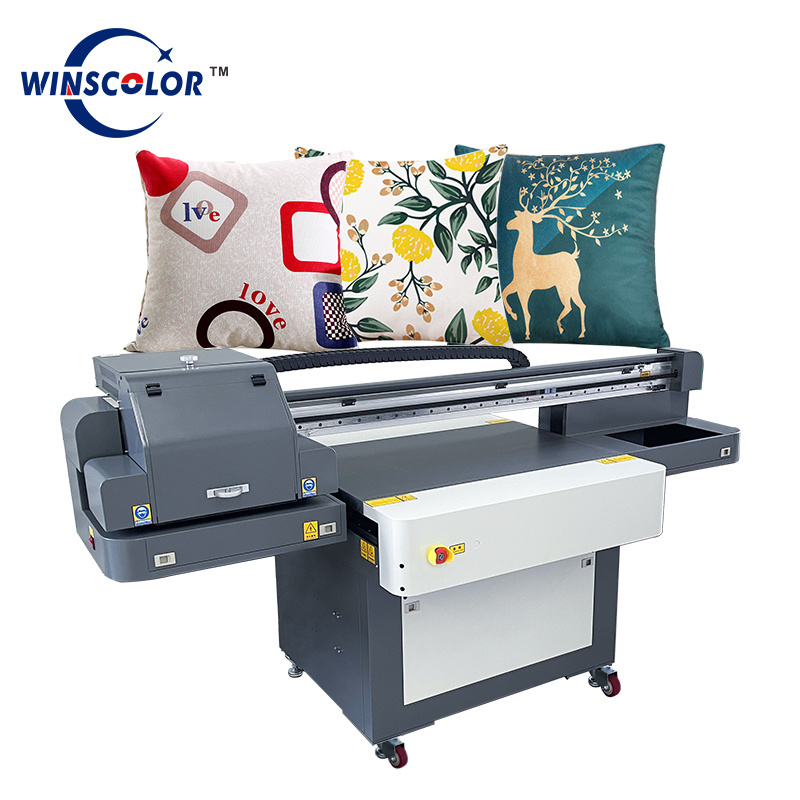

YC6090 UV Flatbed Printer
①UV LED Lamp
④Switch Area
②Industrial Printhead
⑤Universal Wheel
③
ROUST mute
|
Specifications
|
|
|
|
|
||||
|
Product Model
|
YC6090
|
|
|
|
||||
|
Printhead Type
|
EPSON
|
|
|
|
||||
|
Printhead Number
|
2-4 heads
|
|
|
|
||||
|
Ink Characteristics
|
UV Curing Ink (VOA Free)
|
|
|
|
||||
|
Ink reservoirs
|
Refillable on the fly while printing/2500ml per color
|
|
|
|
||||
|
LED UV Lamp
|
more than 30000-hours life
|
|
|
|
||||
|
Printhead arrangement
|
CMYKW V Optional
|
|
|
|
||||
|
Printhead Cleaning System
|
Automatic Cleaning System
|
|
|
|
||||
|
Guide Rail
|
ROUST mute
|
|
|
|
||||
|
Working Table
|
Vacuum Sucking
|
|
|
|
||||
|
Printing Size
|
900*600mm
|
|
|
|
||||
|
Print Interface
|
USB2.0/USB3.0/Ethernet Interface
|
|
|
|
||||
|
Media Thickness
|
0-100mm
|
|
|
|
||||
|
Print Resolution& Speed
|
720X600dpi
|
4PASS
|
4-16sqm/h
|
|
||||
|
|
720X900dpi
|
6PASS
|
3-11sqm/h
|
|
||||
|
|
720X1200dpi
|
8PASS
|
2-8sqm/h
|
|
||||
|
Life of printed image
|
3 years(outdoor),10years(indoor)
|
|
|
|
||||
|
File Format
|
TIFF,JPEG,Postscript,EPS,PDF etc.
|
|
|
|
||||
|
RIP Software
|
RIP/Photoprint optional
|
|
|
|
||||
|
Power Supply
|
220V 50/60Hz(10%)
|
|
|
|
||||
|
Power
|
3100W
|
|
|
|
||||
|
Operation Environment
|
Temperature 20 to 30 ℃,Humidity 40% to 60%
|
|
|
|
||||
|
Machine Dimension
|
2100*1060*1160mm
|
|
|
|
||||
|
Packing Dimension
|
2435*1225*1335mm
|
|
|
|
||||
|
Weight
|
400kg
|
|
|
|
||||
|
Warranty
|
12 months exclude the consumables
|
|
|
|
||||
|
Above specification subject to change without notice beforehand
|
|
|
|
|
||||
Machine Details
Epson Print Head
Vacuum Suction
The vacuum suction platform is easy to operate and save
energ
y,good for vario-us sizes of personalized printing; With full cover for bleeding printing, it will im-prove the utilization of materials.
High Precision Mute
Linear Guide Rail
Use high precision mute liner guide rail,
long service life, high stability,immensely
decrease noise while printer is printing,
within 40DB while printing.
Customized Rotary Device
Lift Cap Station System
Temperature Control System
Korea UV LED Lamp
Automatic height measurement
Antistatic System
Customized Rotary Device
EPSON Nozzle
Adopt Epson piezoelectric nozzle, the accuracy can reach 2160dpi, the new variable ink drop technology, provide 3/3.5pl ink dot size, can achieve high speed or low resolution cases can also easily achieve high quality picture, to achieve no point printing effect.
CMYK+W+V ALL three colors at once
The use of gloss oil makes the product more gorgeous gloss and "high gloss" effect, not only makes the surface of the whole picture has a gloss sense, get a more exquisite printing effect, but also can better protect the coating, make the product more durable.
Printing Samples
Glass Photo
Advertising Sign
Plastic
Photo Case
Floor Mat
Ceramic
Wood
Pen
Car Sticker
Wall Background
Glass Cup
Mouse Pad
